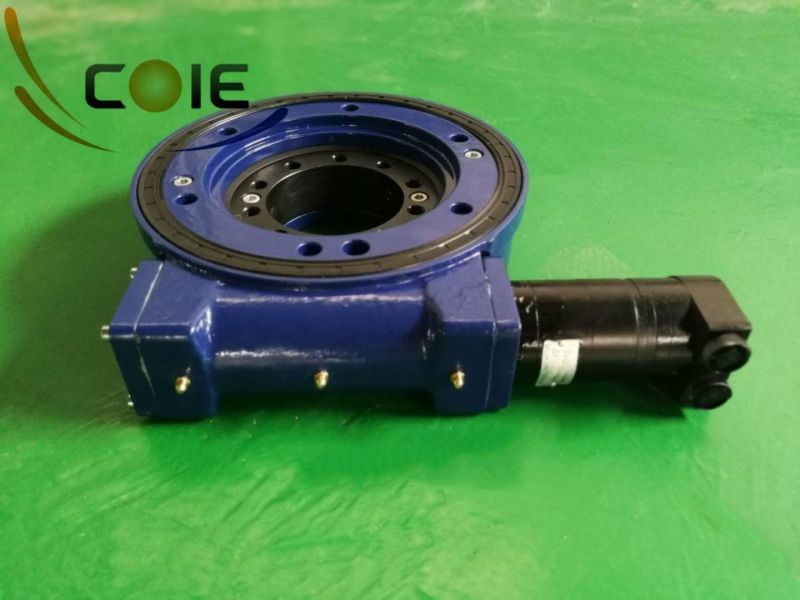

• Model NO.：SC7-71-RH-M32A
• Gear Ratio：71:1
• IP Class：IP65
• Static Axial Load：133kn.M
• Static Radial Laod：53 Kn.M
• Dynamic Axial Rating：32kn
• Dynamic Radial Rating：28kn
• Color：Grey
• Mounting Bolts：M12
• Transport Package：Standard Wooden Case
• Specification：SC7-71-RH
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：3000PCS,Month

Model

SC7

Place of Origin

Changzhou,China

Brand

Coresun Drive

Delivery Time

7 days

Material

42CrMo,50Mn

Output Torque

1.46kN.m

Tilting Moment Torque

13.5kN.m

Holding Torque

10.4kN.m

Static Axial Rating

133KN

Static Radial Rating

53KN

Dynamic Axial Rating

32KN

Dynamic Radial Rating

28 KN

Gear Ratio

71:1

Efficiency

40%

Hydraulic Motor

M32A

Mounting Bolts

M12

There are various types of rotary driving devices, the following factors can be considered when choosing them

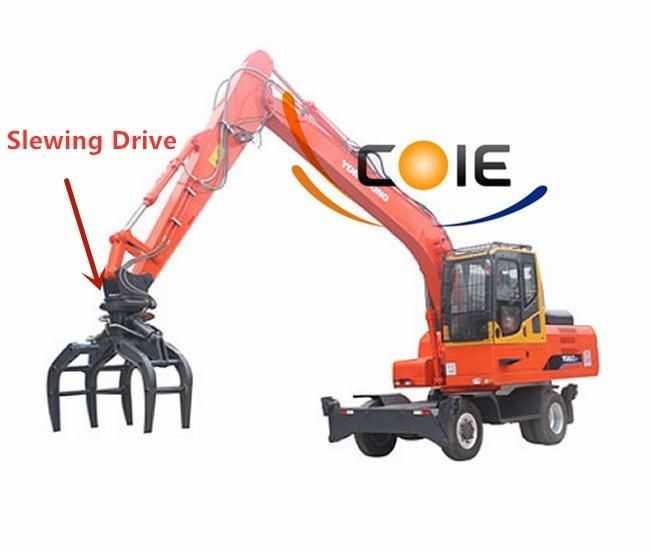

1.Rated Output Speed:slewing drive are used for timber grabs and rotating platforms. The speed should not be too fast, generally 1-2 revolutions per minute, which can increase the service life of the product

2.Tilting Moment Torque:For product selection, due to the consideration of the application conditions of the product, for the harsh environment such as wood grabbers, the overturning moment of the product needs to be considered, so that the product can achieve the required mechanical efficiency

3.Hydraulic motor:For the selection of motors, use small rotary reducers, such as 3-inch and 7-inch products, which should be equipped with 32 motors or 50 motors

4.Material of slewing drive: Coresun use 42CrMo,50Mn for casting housing and slewing bearing, so the performance is better and the quality is ensured.
