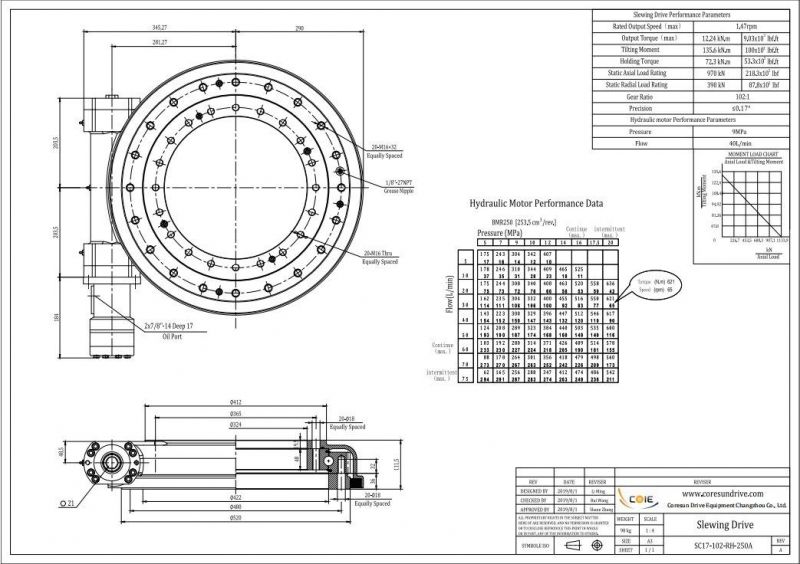

• Model NO.：SC17-102-25RH-250A-REV. A
• IP Class：IP65
• Static Axial Load：970kn
• Static Radial Laod：390kn
• Transport Package：Wooden Case
• Specification：SC17-102-25rh-250A-REV. A
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：5000PCS,Month

Model Slewing BearingSC17BrandCorresun DriveHolding Torque72.3Kn.mTilting Moment Torque135.6Kn.mSelf-lockingYesGear Ratio102:1Outer Dia.480mmInner Dia.365mmRated Output Speed1.47rpmPrecison0.17°


CoreSun - Practical Slewing Drive&Slewing Bearing Promoter.  We are committed to researching, developing and applying high quality, precision transmission equipment products,who provides reliable mechanical actuator for horizonal single axis, dual-axis photovoltaic tracking system, CSP,CPV solar tracking design.Our professional and high-quality products will be also applied well as a steady solution on aerial working platform, truck crane, timber grab, drilling rig, spray equipment, hydraulic module vehicle,automated assembly lines, wind yaw systems,etc.

Slewing drive is consist of slewing bearing, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.


Coresun Drive Slewing Drive Advantage:

1. Coresun Drive Slewing drive designed with hourglass worm shaft which provides more tooth contact and higher torque.

2. High transmission efficiency and accurate tracking

3. Easy installation and maintenance

4. Customized solution

5.Special heat treatment,corrosion resistance

6.SC models is hourglass worm design with much tooth contact structure.All-around anti-corrosion and anti-rust performance.

7.High tilting moment   torque

8.Steady static locking  performance

9.Smooth transmission

10.Higher efficient output efficiency

Coresun is your reliable supplier, even more your sincere partner!

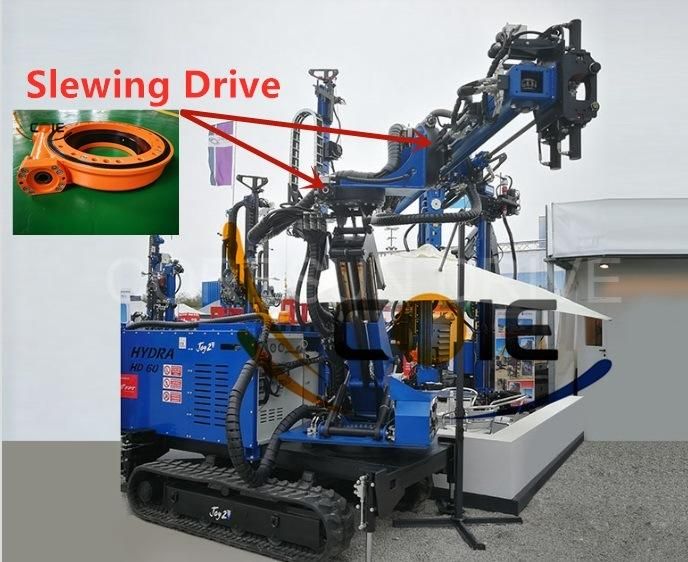

Coresun Drive Slewing Bearing Production Photo and Application






Coresun Drive Relevant Certification as following








CONTACT US

It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
