• Model NO.：P5, P6
• Pixel Density：40000 Pixels,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Delivery Time：20 Days
• LED Type：SMD2727
• Warranty：20 Days
• Brightness：>4500nits
• Transport Package：Flight Case, Plywood Case, Carton.
• Specification：CE, ROHS, ISO9001
• Trademark：BST
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. P5, P6 Pixel Density 40000 Pixels/Sqm Scanning Mode 1/8 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Delivery Time 20 Days LED Type SMD2727 Warranty 20 Days Brightness >4500nits Transport Package Flight Case, Plywood Case, Carton. Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 1000PCS/Month

Product Description

P5mm High brightness Dual face Full Color Taxi Top LED Screen for Advertising


BST Sign is a Professional LED Screen manufacturer, Vehicle LED Sign is one series of Our LED Screens.
We have Focused on this series for almost 7 years.

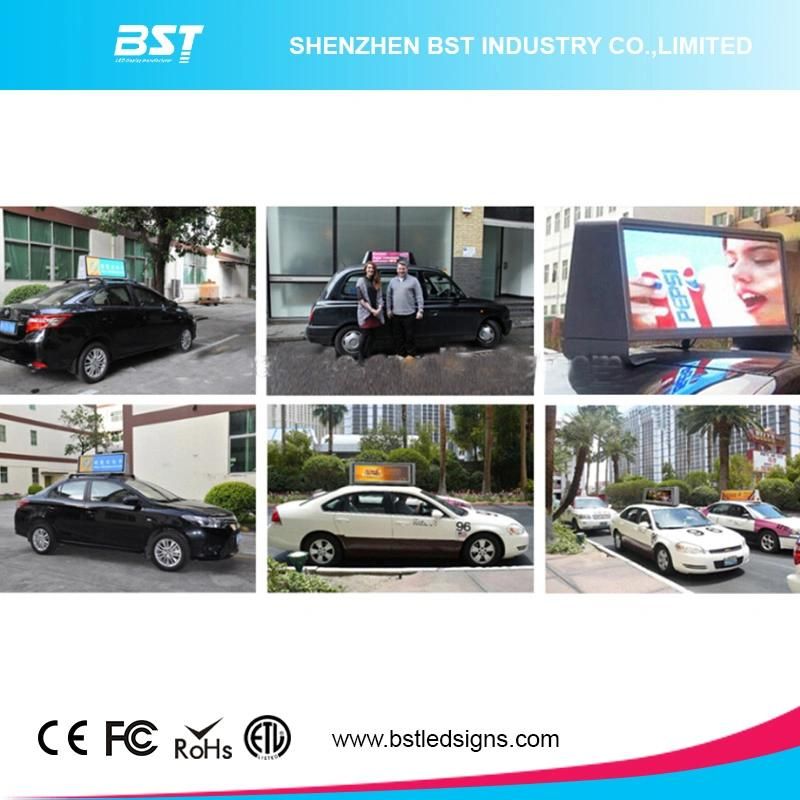

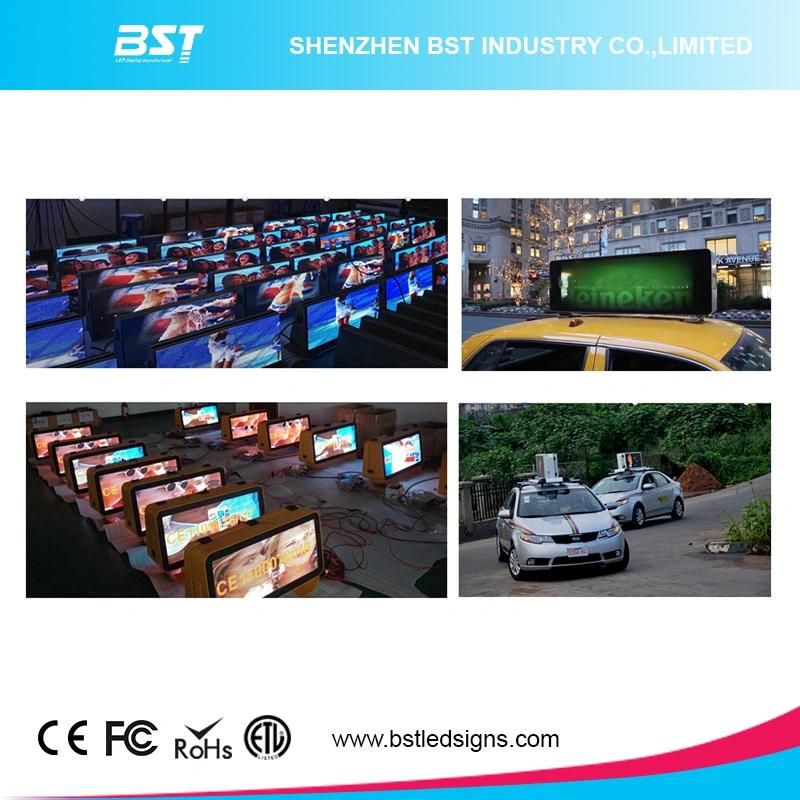

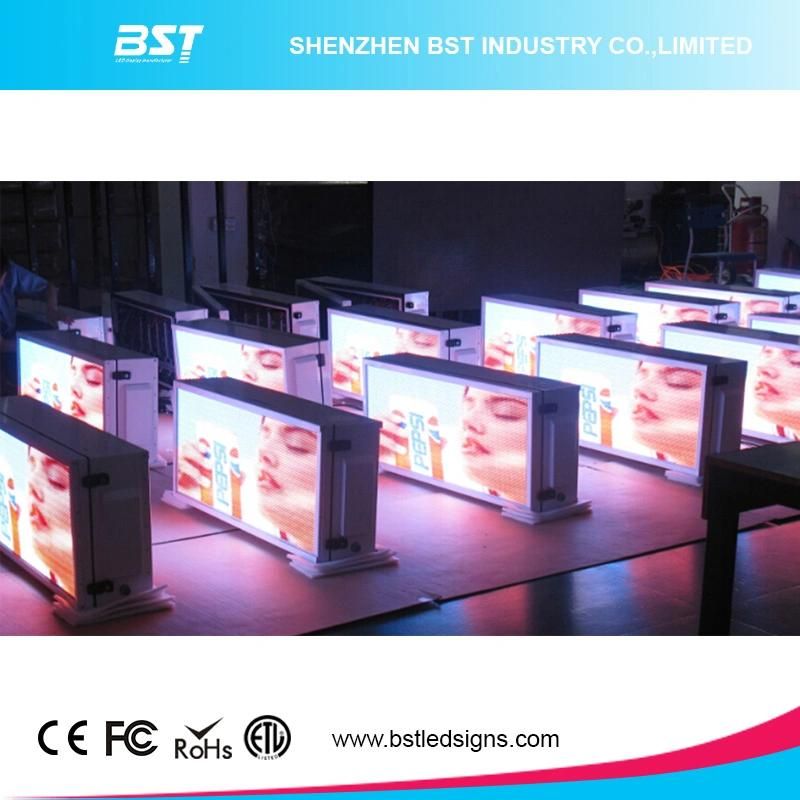

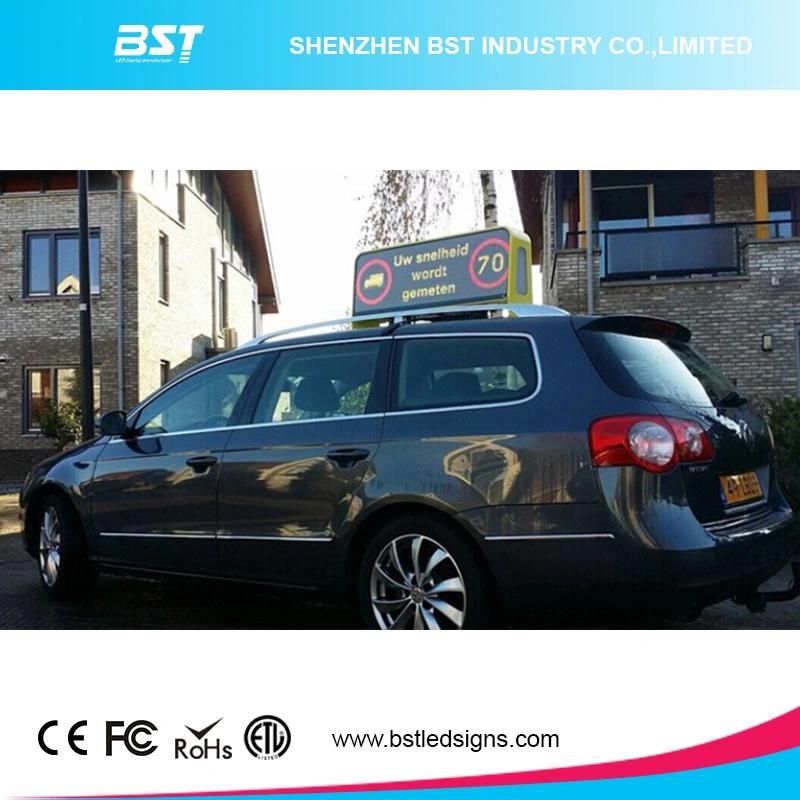

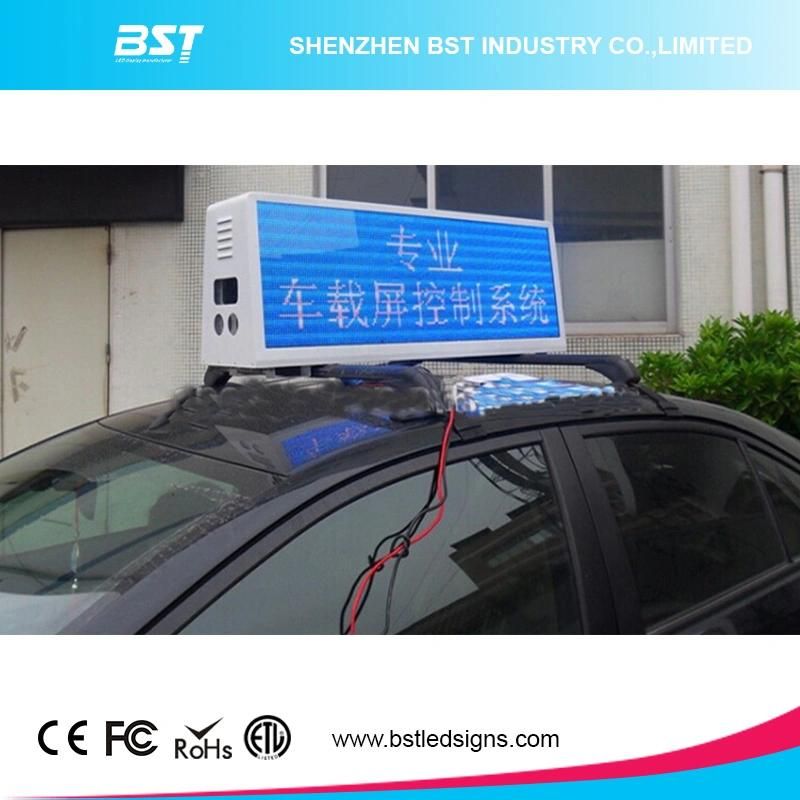

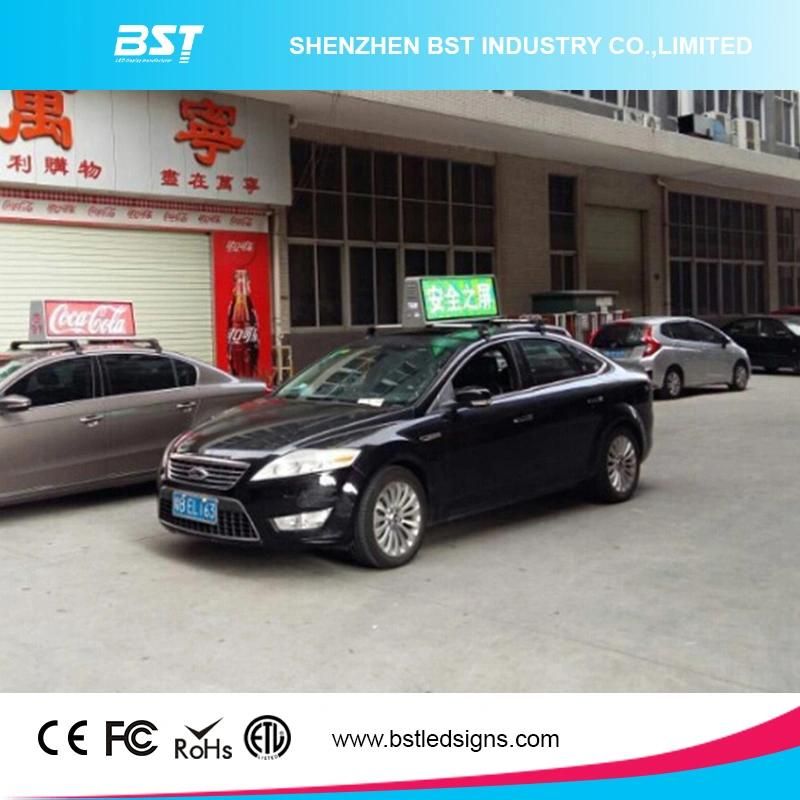

As Taxi Top LED Screen used in the taxi rear window, It's very different from ordinary LED Screen. There are many factors influencing the lifespan and stability such as Power, Electrostatic, Vibration, Anti electromagnetic interference, Low temperature. Our Taxi Top LED Screen is special designed to solve these problem.

Our Taxi Top LED Screen has following key features:

1. Special designed power supply
2. Special designed to work normally in low Temperature environment
3. Super strong antistatic ability to avoid static electricity destroy IC and LED chip.
4. Special LED chip design and adopt 4500cd/sq. M, it's a very suitable brightness. Customer can not see clearly with low brightness, if the brightness is too high, it will influence safe driving, even cause accident.


Please feel free to contact us if you are interested in our Taxi Top LED Screen.

Model:	P5
Pixel Configuration	SMD2727
Pixel Pitch	5mm
Pixel Density	40000 pixels/sq.m
Module Resolution	64*32 pixels
Module Size	320*160mm
Screen Resolution	192*64 pixels
Screen Size	960*320mm
Cabinet Size	L:1100mm H:410mm,W:157mm(bottom),75mm(top)
Cabinet Material	Aluminum Alloy
Cabinet Color	Silver
Weight	17kg
Brightness	3000~4500 nits
Gray Scale	65536 level
Refresh Rate	>360hz
Max. Power Consumption	270w
Video Format:	AVI, WMV, Mpg, MOV, Dat, Vob, MP4, Flv
Lifespan	>100,000hrs
MTBF	10000hrs
Control Type (optional)	3G, USB, or WIFI wireless control
IP Rating	IP65
Effective Control	<100m
Driving Method	1/8 scan
Viewing Distance	5~50m
Power Input	DC12V
Operating Temp.	-20 degree C ~ 80 degree C
System Support	Windows XP / Windows 7 / Windows 8
