• Model NO.：non-standard
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Transport Package：Standard Packing
• Specification：CE
• Trademark：Baoyues
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：90 Units,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

Basic Info.

Model NO. non-standard Brand Baoyues Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Transport Package Standard Packing Specification CE Trademark Baoyues Origin Guangzhou, China HS Code 84198990 Production Capacity 90 Units/Month

Packaging & Delivery

Package size per unit product 690.00cm * 390.00cm * 265.00cm Gross weight per unit product 3500.000kg

Product Description

Spray booth including exhaust and intake system, purification system, control system, heating system...
Provide a clean and good quality, have 1 years warranty time and lifelong maintenance.Also timely delivery.
No pollution, save energy, low price and no noise.

Outside dimension	7000×5350×3400mm(L×W×H)
Inside dimension	6900×3900×2700mm(L×W×H)
Main door	4-fold,3000×2650(W×H);hand made door or aluminum alloy door frame optional.
Personal door	1 fold,650×1800(W×H)
Wall panel	EPS heat preservation panel double skinned, tongue and groove construction, thickness:50mmEPS;roof panel: galvanized plate
Basement and floor	300mm complete steel assemble,2 rows of grilles,3 rows of indented plate.  520×2000(W×L)
Lighting	Ceiling lights:3pcs×8units=24Pcs×36W,Low lights: optional
Generator setting type	Side back intake air; quadrate steel frame; coated steel plate
Intake fan	1pc 7.5KW turbo fan, air capacity:22000m*3/h.direct drive.
Exhaust fan	7.5KW turbo fan, air capacity:22000m*3/h.direct drive.

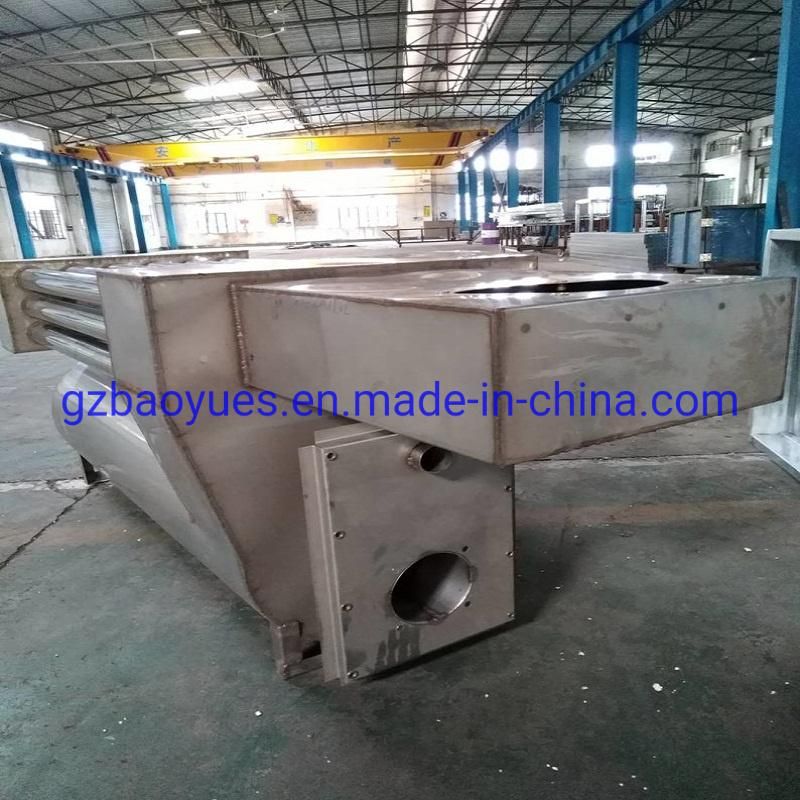

Heating system	RIELLO G20 diesel burner,200000Kcal,Stainless steel heat exchanger,  highest temperature 80°,1pc electrical damper execute spraying to baking cycle.
Filtering system	Pre-filter. high efficiency filter(ceiling filter)floor filter

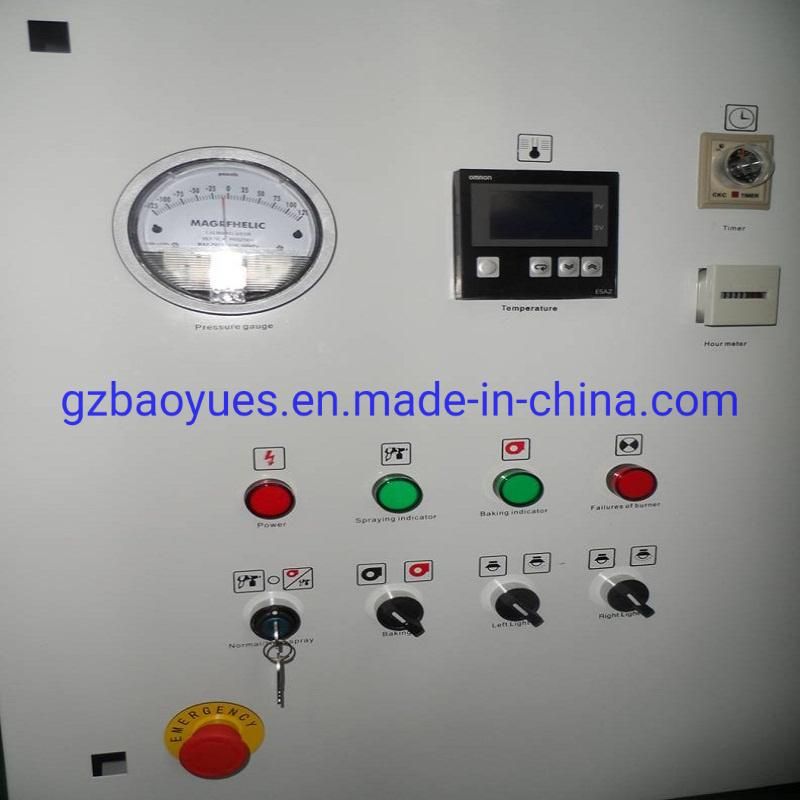

Control system	Spraying ,risentemperature spraying, baking temperature, time setting, lighting switch, emergency stop
Total power	8.5KW

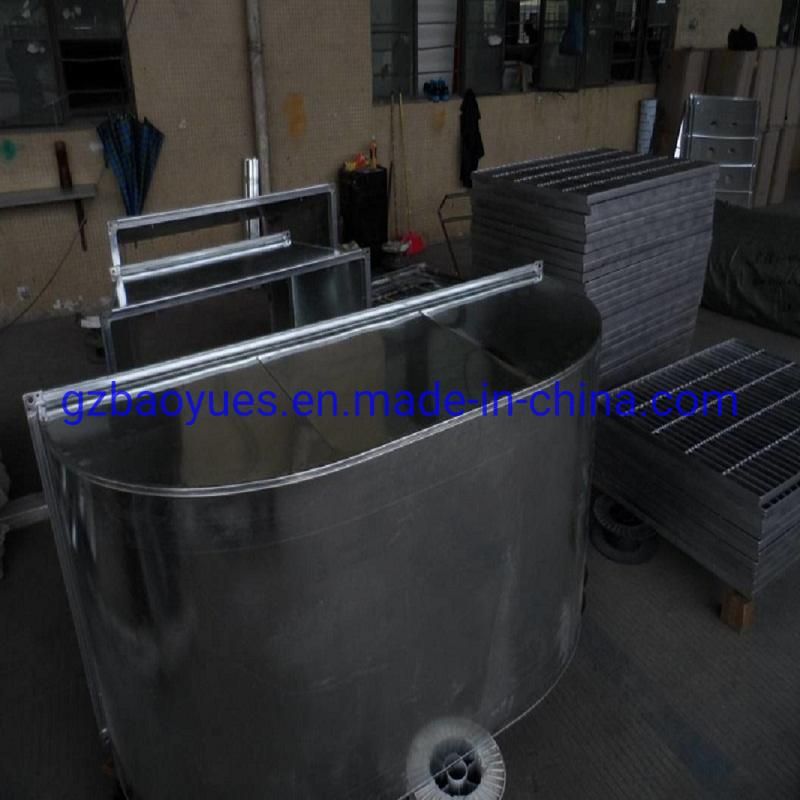

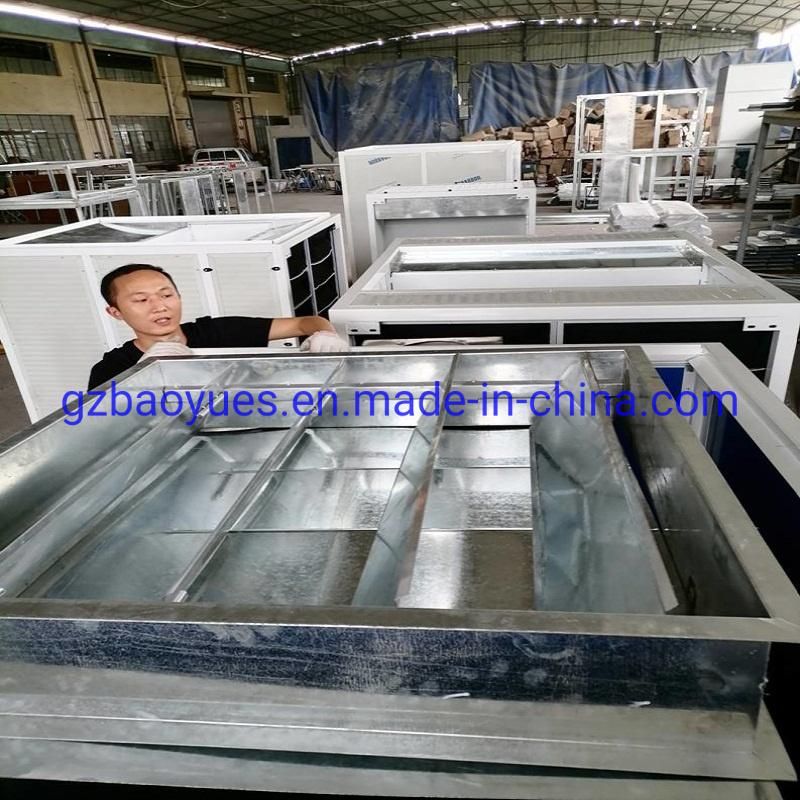

Parts details:

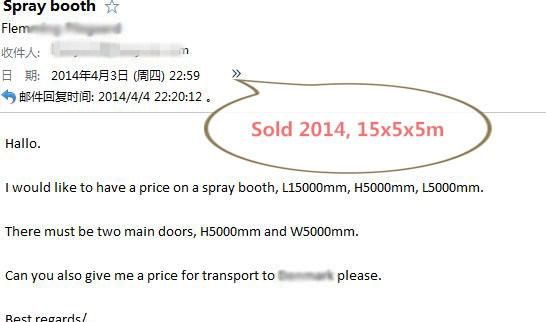

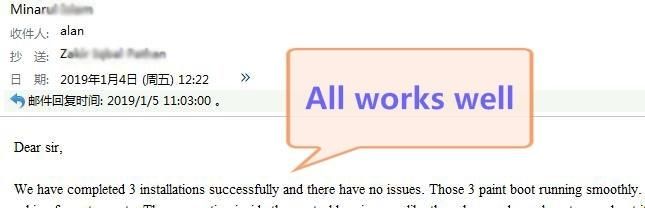

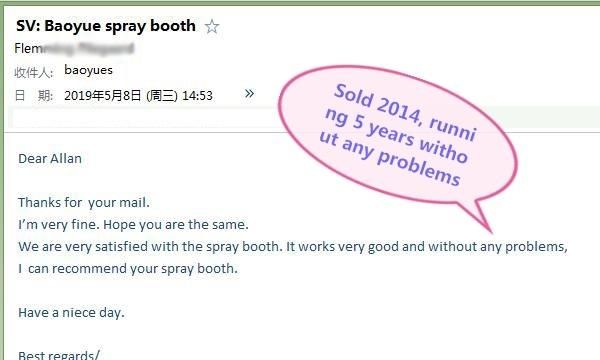

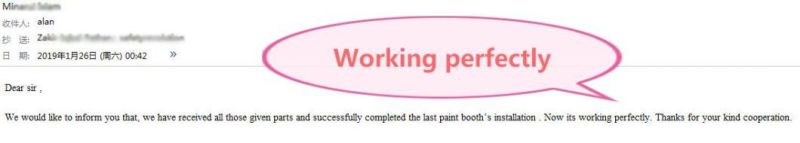

What customers saying:

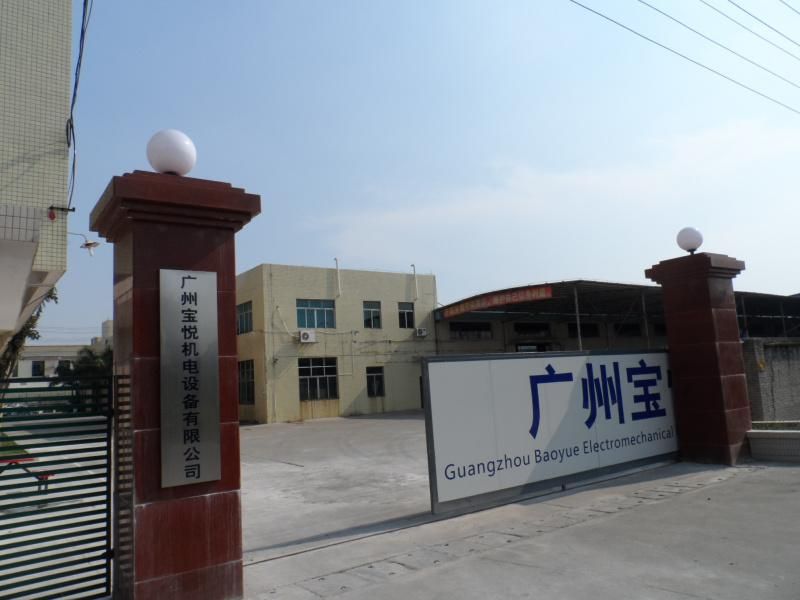

Factory show:
