Garage Equipments/Auto Repair Equipment/Car Spray Painting Machine
Luminous Optical Technology Co., Ltd.- Type:Spray Booth
- Certification:CCC, CE, CSA
- Substrate:Steel
- Brand:Baoyues
- Coating:Painting
- Airflow Direction:Fully Undershot-type
Base Info
- Model NO.:BY-5
- Heating Mode:Diesel
- Paint Mist Treatment:Dry-type
- Condition:New
- Types:Spray Booth
- Color:Orange
- Purification:≥95%
- Feature:Economic Applicable
- Air Capacity:25000m³,H
- Max Heating Productivity:260000kcal,H
- Safety:with Pressure Emergency Door
- Illumination:≥1500lux
- Max Baking Temperature:80°
- Warranty:12 Month
- Transport Package:Spray Booth Standard Export Package
- Specification:CE
- Trademark:Baoyues
- Origin:Guangzhou, China
- HS Code:8419899090
- Production Capacity:120 Set,Month
Description
Intake and Exhaust
system
Inlet :1×7.5KW turbo fan , air capacity for each fan : 25000m3/h.Outlet: 1×7.5KW turbo fan, air capacity for each fan : 25000m3/h . Manual damper, 5m ducts, 1
pcs 900 bend, 1 pcs 300 bend, 1 pcs intake hoop.Heating systemRIELLO RG5S diesel burner, double layer stainless steel heat exchanger, pneumatic damper
actuates from spraying to baking cycle. Max. heating productivity: 260000kcal/h , max
temperature: 80°C, 4pcs chimney, 1 pcs bend.Purification systemPre-filter (pocket type), ceiling filter, fibreglass filter, activated carbon filter (pocket type)RoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge, all motors is normal start.Total power18.5KW (Power supply 1×220V, 3×380V, 50HZ)

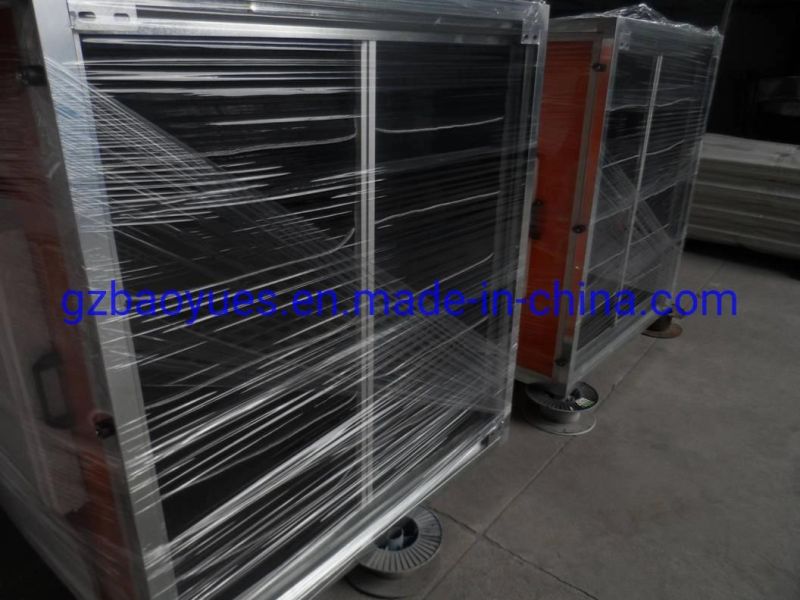

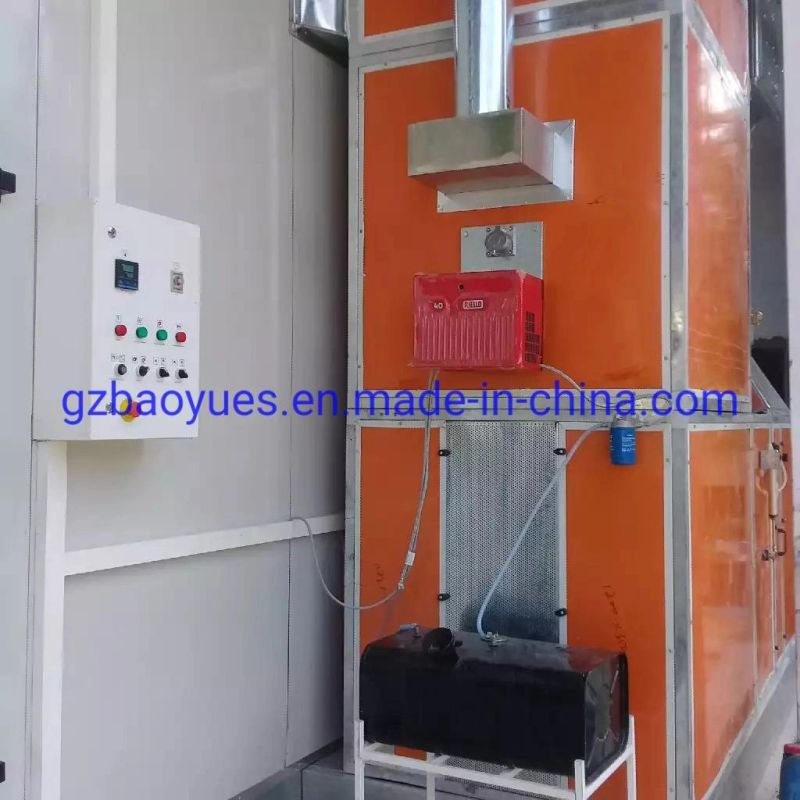

Parts details:

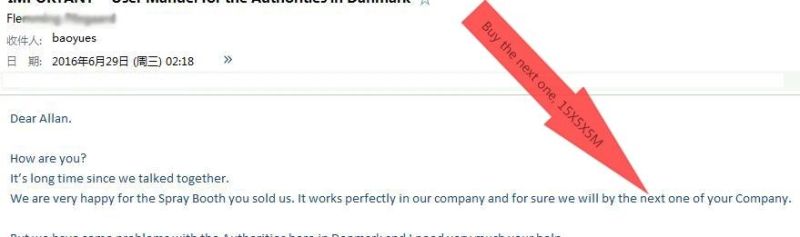

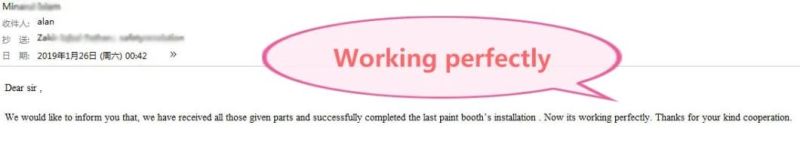

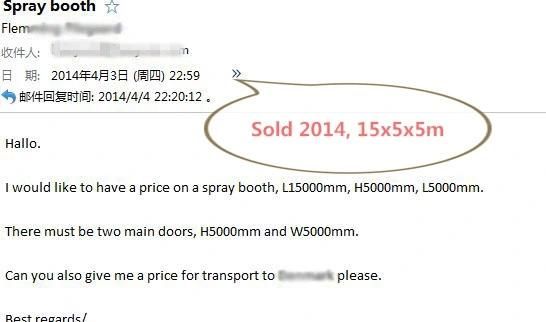

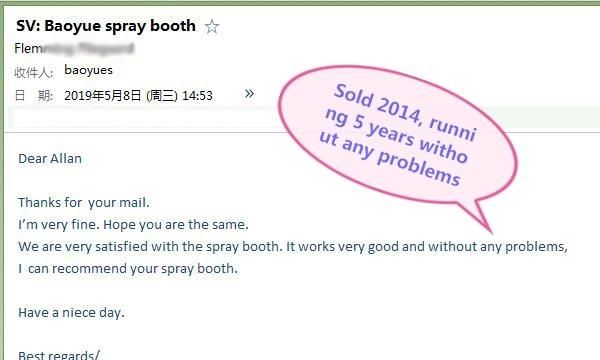

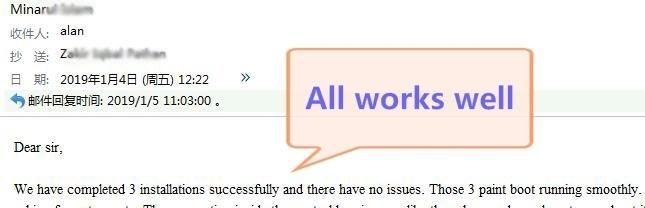

Feedback from customers:

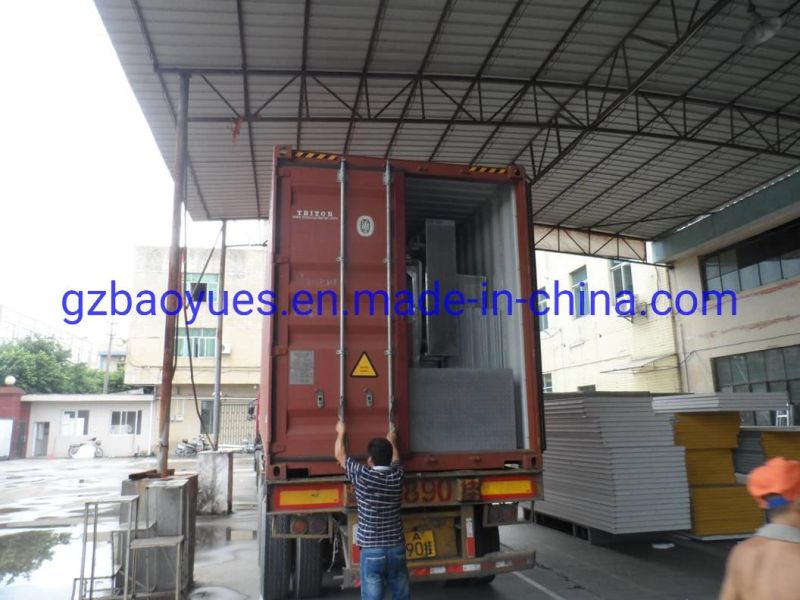

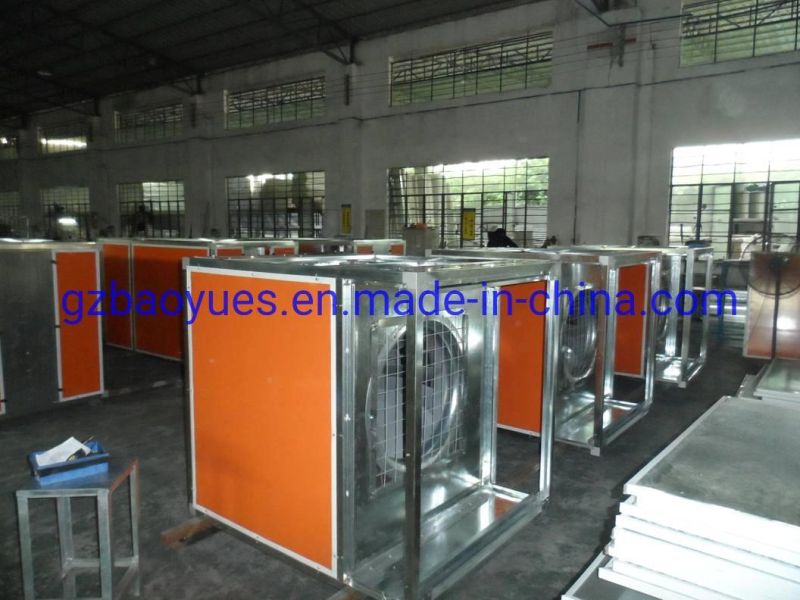

Factory images:
