Auto Painting Equipment/Car Spray Painting Machine/Spray Booths with Riello Burner Heating
Luminous Optical Technology Co., Ltd.- Certification:CE
- Substrate:Steel
Base Info
- Model NO.:BY-5
- Brand:Baoyues
- Coating:Painting
- Airflow Direction:Fully Undershot-type
- Heating Mode:Diesel
- Paint Mist Treatment:Dry-type
- Condition:New
- Lights:LED
- Transport Package:Export Professional Package
- Specification:CE, SGS
- Trademark:Baoyues
- Origin:China
- HS Code:84198990
- Production Capacity:90sets,Month
- Package size per unit product:690.00cm * 390.00cm * 265.00cm
- Gross weight per unit product:3500.000kg
Description

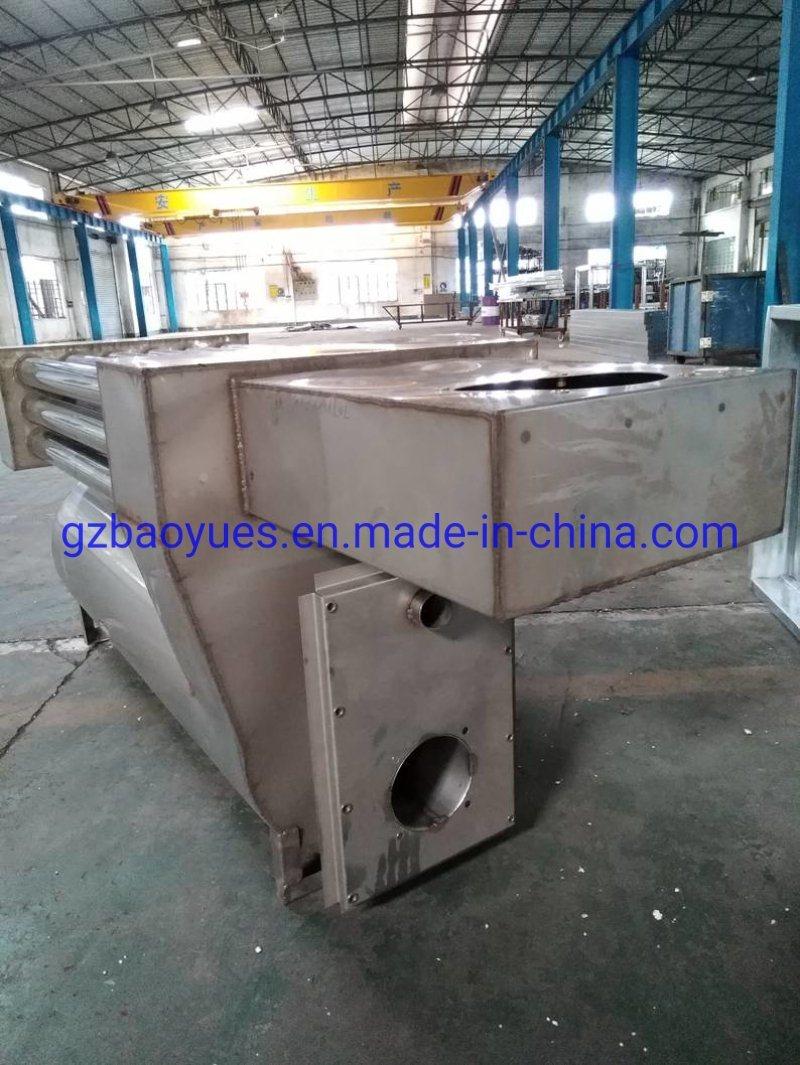

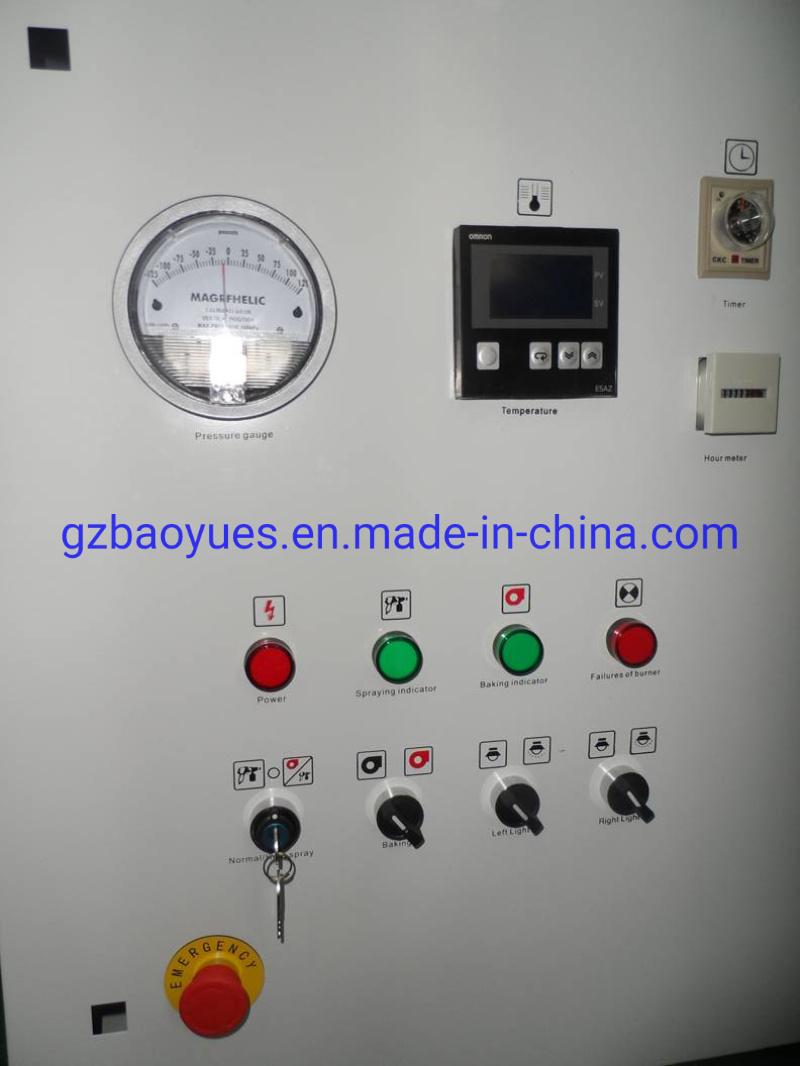

Intake and Exhaust systemInlet: 2× 4KW centrifugalfan, motor outside, belt drive, Model: TAE-400H, air capacity for each fan: 12500m 3 /hOutlet: 1× 7.5KW centrifugalfan, motor outside, belt drive, Model: TAE-560H, air capacity for each fan: 23000m 3 /h, with manual damperHeating systemRIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000kcal/h, maximum temperature: 80 degreePurification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filter.RoofGalvanized steel.Control systemSpraying, heat spraying, baking, time setting, lighting switch, thermostat, failure indicator, power supply switch, emergency stop.Total power18KW

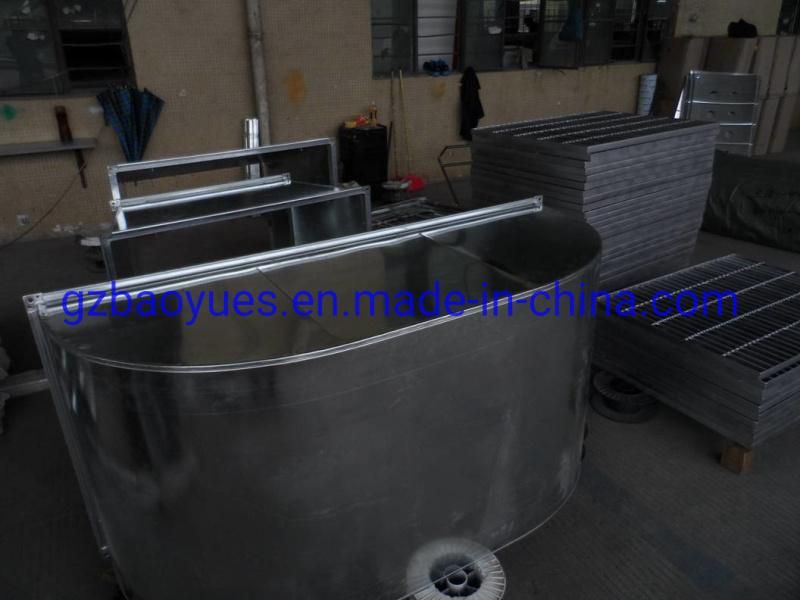

Parts details:

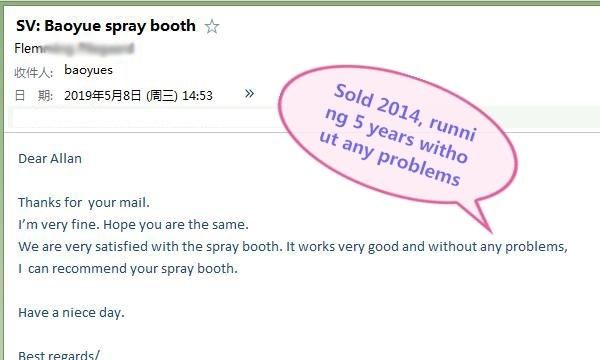

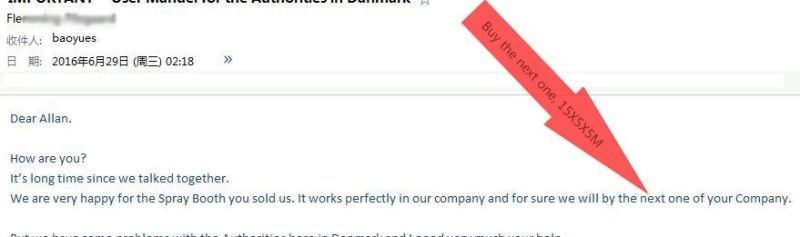

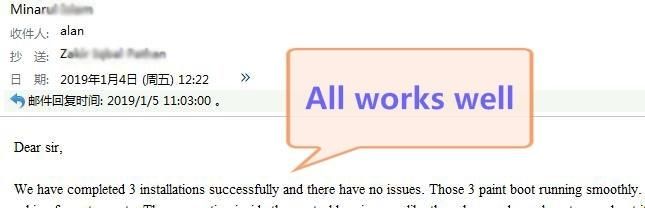

What customers saying:

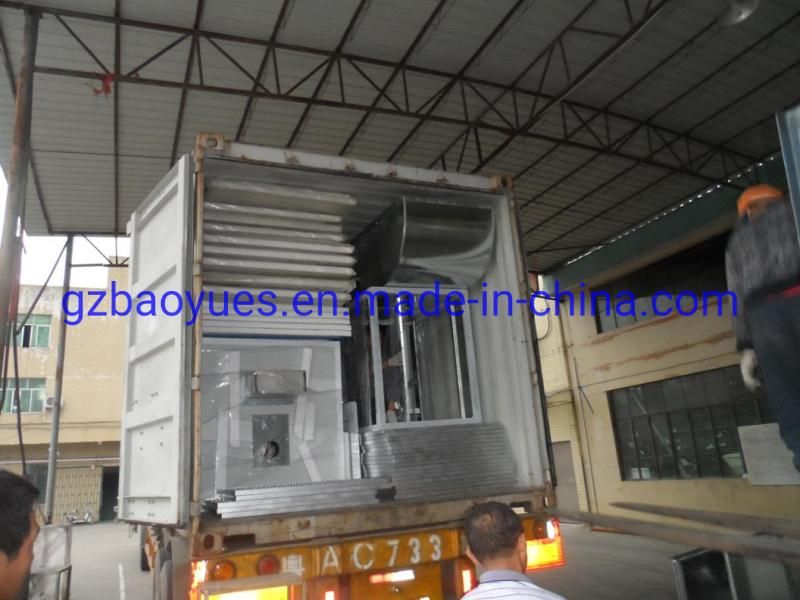

Factory show:


Parts details:

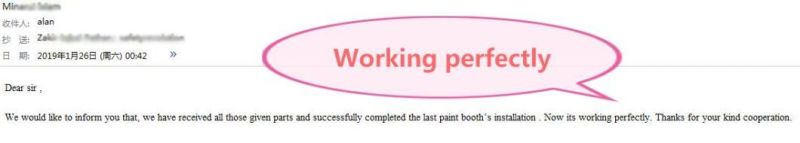

What customers saying:

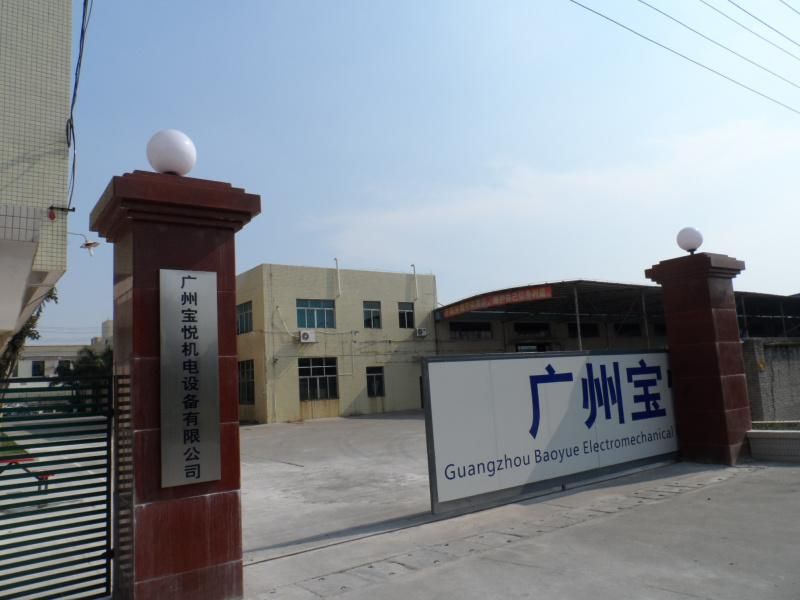

Factory show:
