25t5-1910 PU Toothed Belt with Steel Cord

The Yk Technology Co., Ltd
  • Standard or Nonstandard：Standard
  • Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
  • Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
  • Tensile Strength：Strong
  • Material：PU
  • Type：Toothed Belt

Base Info

  • Model NO.：T5-1910
  • Materials：PU
  • Teeth Model：T5
  • Color：White,Transparent
  • Pitch：5mm
  • Belt Tooth Height：1.2mm
  • Belt Top Thickness：2.2mm
  • Max Width：100mm
  • Standard Length：100m
  • Cord：Steel, Kevlar
  • Efficiency：98%-99.5%
  • Initial Tension：Small
  • Bear Pressure：Small
  • Applications：Accumulation Conveyor
  • Tractor Drive：Sheet Metal Conveyorance
  • Anti-Fouling & Dust：Good
  • Transport Package：Export Standard
  • Specification：T5-330
  • Trademark：UNI Belting
  • Origin：Shanghai China
  • HS Code：3926901000
  • Production Capacity：20000000 Meters

Description

Basic Info.

Model NO. T5-1910 Materials PU Teeth Model T5 Color White/Transparent Pitch 5mm Belt Tooth Height 1.2mm Belt Top Thickness 2.2mm Max Width 100mm Standard Length 100m Cord Steel, Kevlar Efficiency 98%-99.5% Initial Tension Small Bear Pressure Small Applications Accumulation Conveyor Tractor Drive Sheet Metal Conveyorance Anti-Fouling & Dust Good Transport Package Export Standard Specification T5-330 Trademark UNI Belting Origin Shanghai China HS Code 3926901000 Production Capacity 20000000 Meters

Product Description

PU timing belt T5

PU Synchronous belts are manufactured in thermoset polyurethane by a unique moulding process. The high-grade polyurethane gives superior wear and abrasion resistance. Several types of cords, helicoidally rolled up inside the belts, assure excellent dimensional stability and offer high performances in terms of flexibility and traction resistance.


Model: T5

Pitch:5mm
Color:White
Cord: Steel
Max production width:100mm

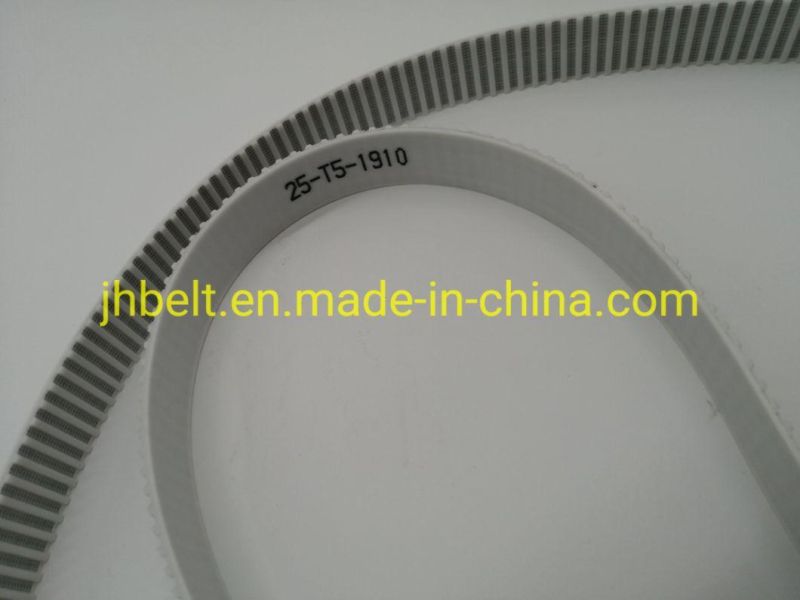

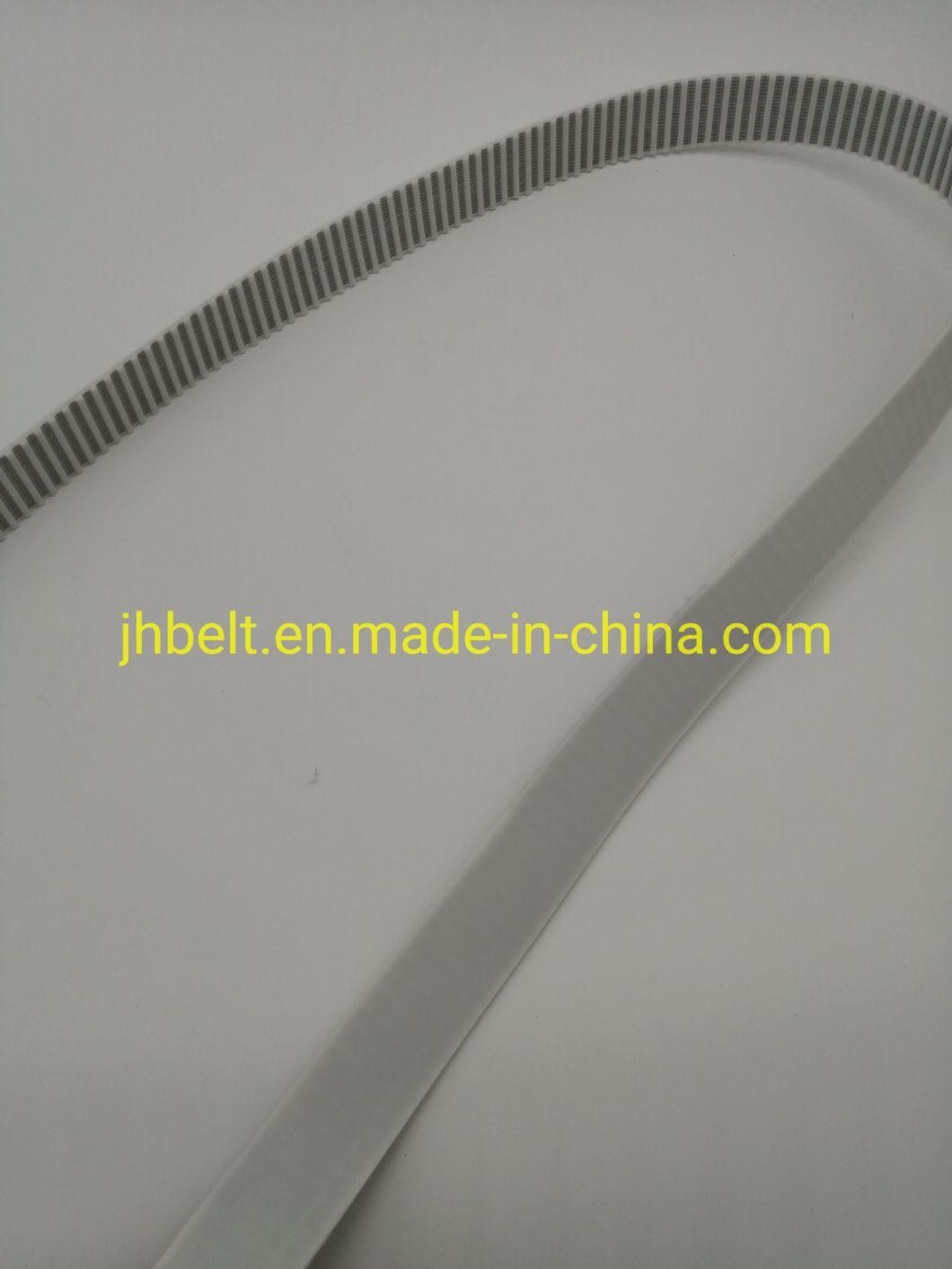

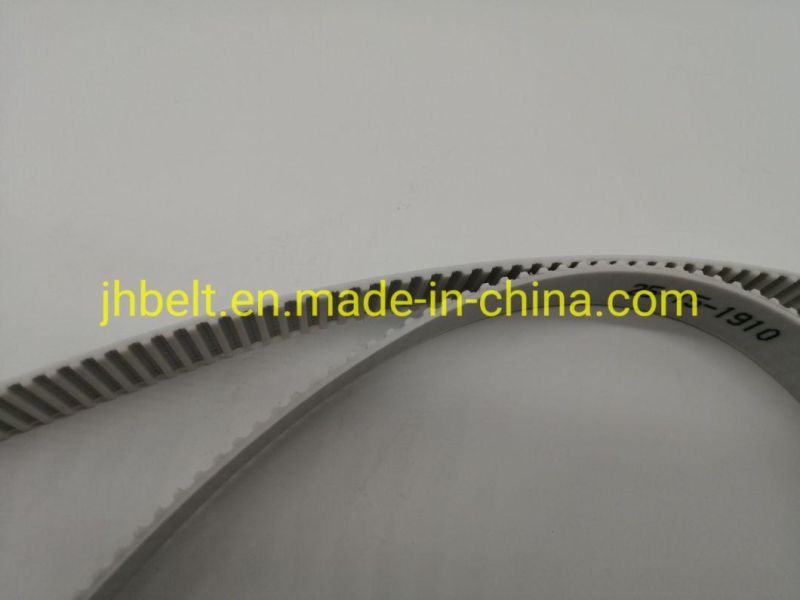

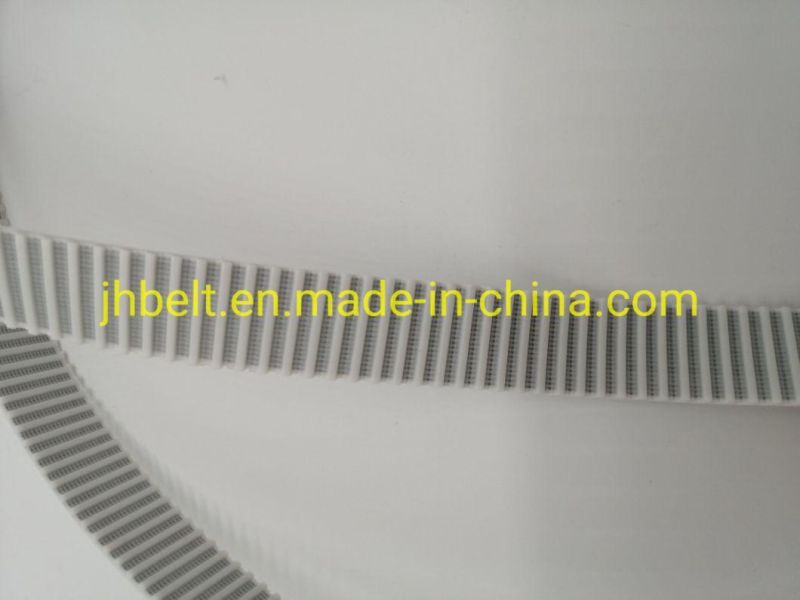

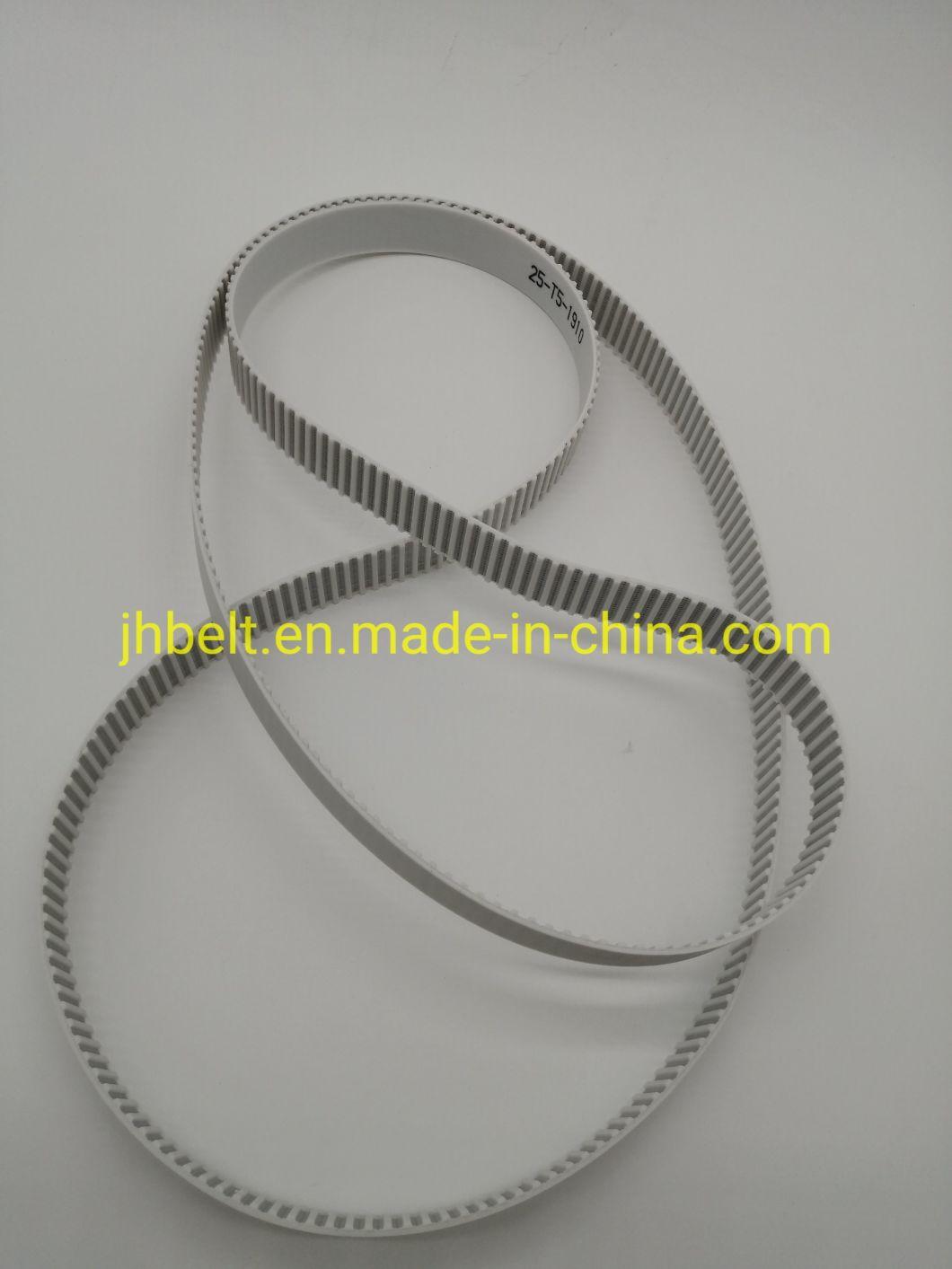

25t5-1910 PU Toothed Belt with Steel Cord25t5-1910 PU Toothed Belt with Steel Cord25t5-1910 PU Toothed Belt with Steel Cord25t5-1910 PU Toothed Belt with Steel Cord25t5-1910 PU Toothed Belt with Steel Cord25t5-1910 PU Toothed Belt with Steel Cord
Available Options
  • NFT (add green fabrics on teeth)
  • NFB (add green fabrics on surface)
  • NFT+NFB (both teeth and surface add green fabrics)
  • Covering/Coating
Mechanical Features
  • Fine size stability
  • Little pre-tension
  • Low noise
  • Highly anti-wear abilbity
  • Non-maintenance
  • Good elasticity
  • The max linear velocity can reaches 80m/second
  • High precision linear positioning

Typical applications:

  • Food processing
  • Conveyors
  • Automatic sliding doors and garage opening system
  • Automated handling devices
  • Linear drivers
  • Positioning system
  • Glass Industry
  • Textile Industry
  • Wood Machine Industry
  • Stone and marble Industry
  • Paper and Printing
  • Transport systems
  • Cooling lines
  • Chemist and pharmaceutical industry
  • Packaging lines
