Wedge Wrapped V-Belt Spb2360
The Yk Technology Co., Ltd- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：V Belt
Base Info
- Model NO.：SPB2360
- Top Width：9.5mm-22mm
- Height：8.0mm-18mm
- Color：Black
- Cord：High Quality Fiberglass
- Pitch Width：8.5-19mm
- Angle：40
- Length Conversion：La=Li+50,113
- Length Range (Inch)：15-492
- Factory Mark：La
- Catalogue：Wedge Wrapped
- Characteristics：High Strength, Low Protraction
- Standard：DIN2215
- Temperature Range：-55c~70c
- Static Conductive：ISO1813
- Stock：Yes
- Transport Package：Export Standard
- Specification：W16-W63.5
- Trademark：UNI Belting
- Origin：Shanghai China
- HS Code：4010390000
- Production Capacity：20000000 Meters
Description
Basic Info.
Model NO. SPB2360 Top Width 9.5mm-22mm Height 8.0mm-18mm Color Black Cord High Quality Fiberglass Pitch Width 8.5-19mm Angle 40 Length Conversion La=Li+50/113 Length Range (Inch) 15-492 Factory Mark La Catalogue Wedge Wrapped Characteristics High Strength, Low Protraction Standard DIN2215 Temperature Range -55c~70c Static Conductive ISO1813 Stock Yes Transport Package Export Standard Specification W16-W63.5 Trademark UNI Belting Origin Shanghai China HS Code 4010390000 Production Capacity 20000000 MetersProduct Description

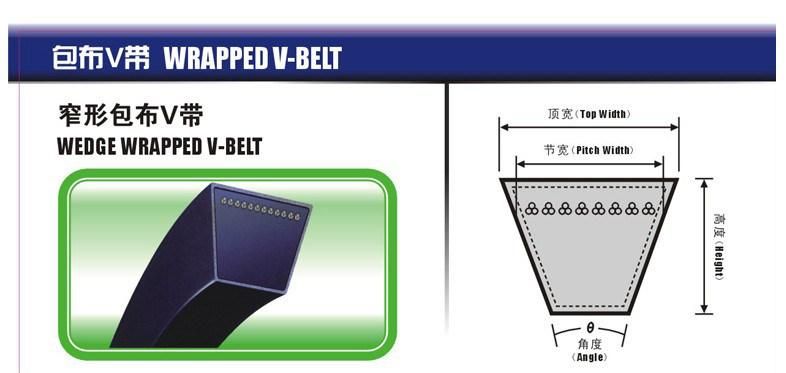

WEDGE WRAPPED V-BELT >>>

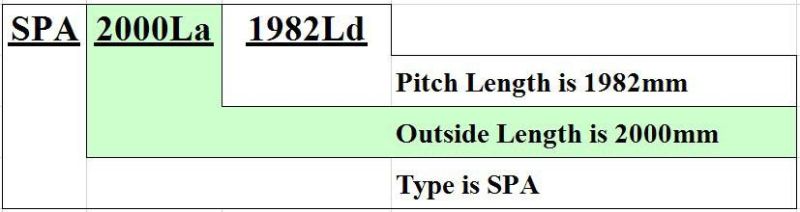

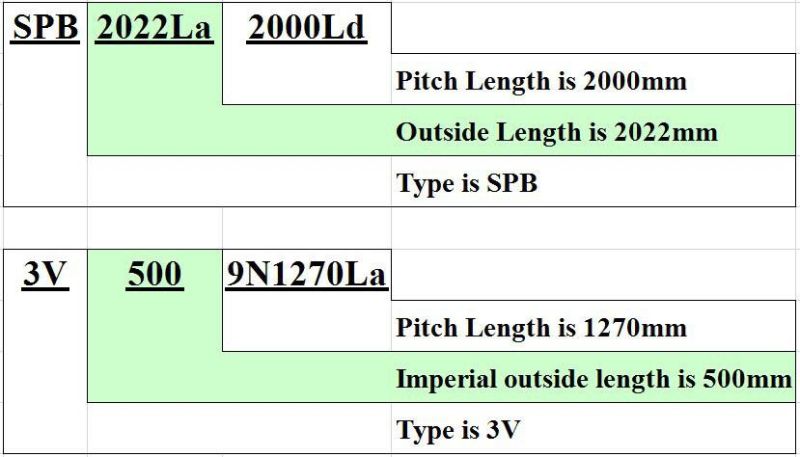

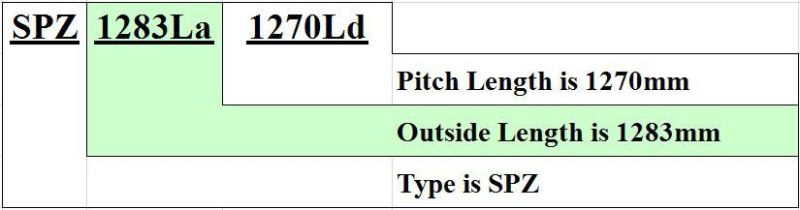

MARKING
Wedge wrapped V-belts fall into two categories. The Metric SP series comprise of SPZ, SPA, SPB and SPC models. The inch V series include 3V(9N), 5V(15N) and 8v(25N) models. V-belts of these types are marked according to the outside length of factory V-belts. Specific noting should be made on the order first if the customer has special requirements.
| Type | Top Width | Pitch Width | Height | Angle | Length Conversion | Length Range (inch) | Length Range (mm) | Factory Mark |
| 3V(9N) | 9.5 | / | 8.0 | 40° | La=Li+50 | 15"-200" | 381-5080 | La |
| 5V(15N) | 16.0 | / | 13.5 | 40° | La=Li+82 | 44"-394" | 1122-10008 | La |
| 8V(25N) | 25.5 | / | 23.0 | 40° | La=Li+144 | 79"-600" | 2000-15240 | La |
| SPZ | 10.0 | 8.5 | 8.0 | 40° | La=Li+50 | 15"-200" | 381-5080 | La |
| SPA | 13.0 | 11.0 | 10.0 | 40° | La=Li+63 | 23"-200" | 600-5080 | La |
| SPB | 17.0 | 14.0 | 14.0 | 40° | La=Li+88 | 44"-394" | 1122-10008 | La |
| SPC | 22.0 | 19.0 | 18.0 | 40° | La=Li+113 | 54"-492" | 1380-12500 | La |
Wedge wrapped V-belts offer high transverse stiffness and a transmission power 50-100% higher than classical V-belts. The transmission velocity reaches 40 m/s and the transmission efficiency over 95%.
