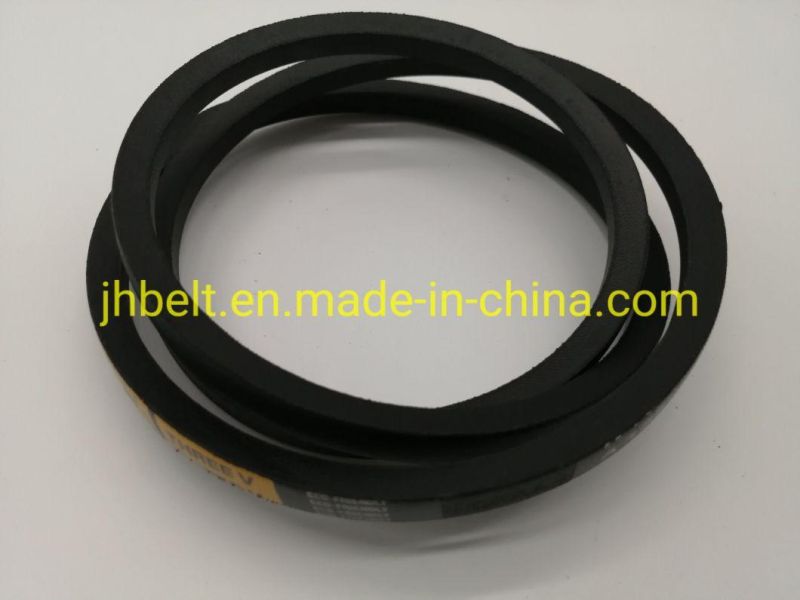

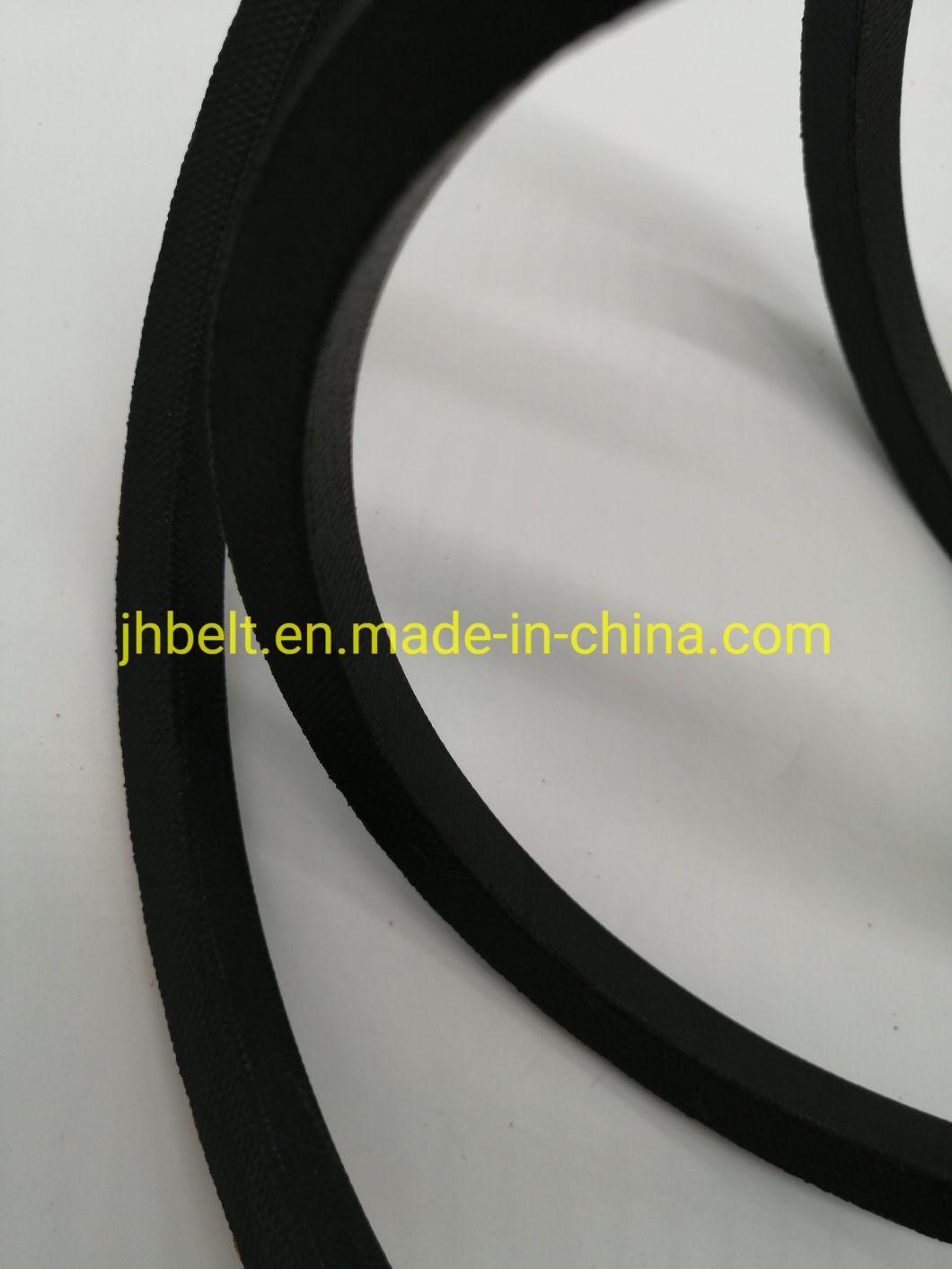

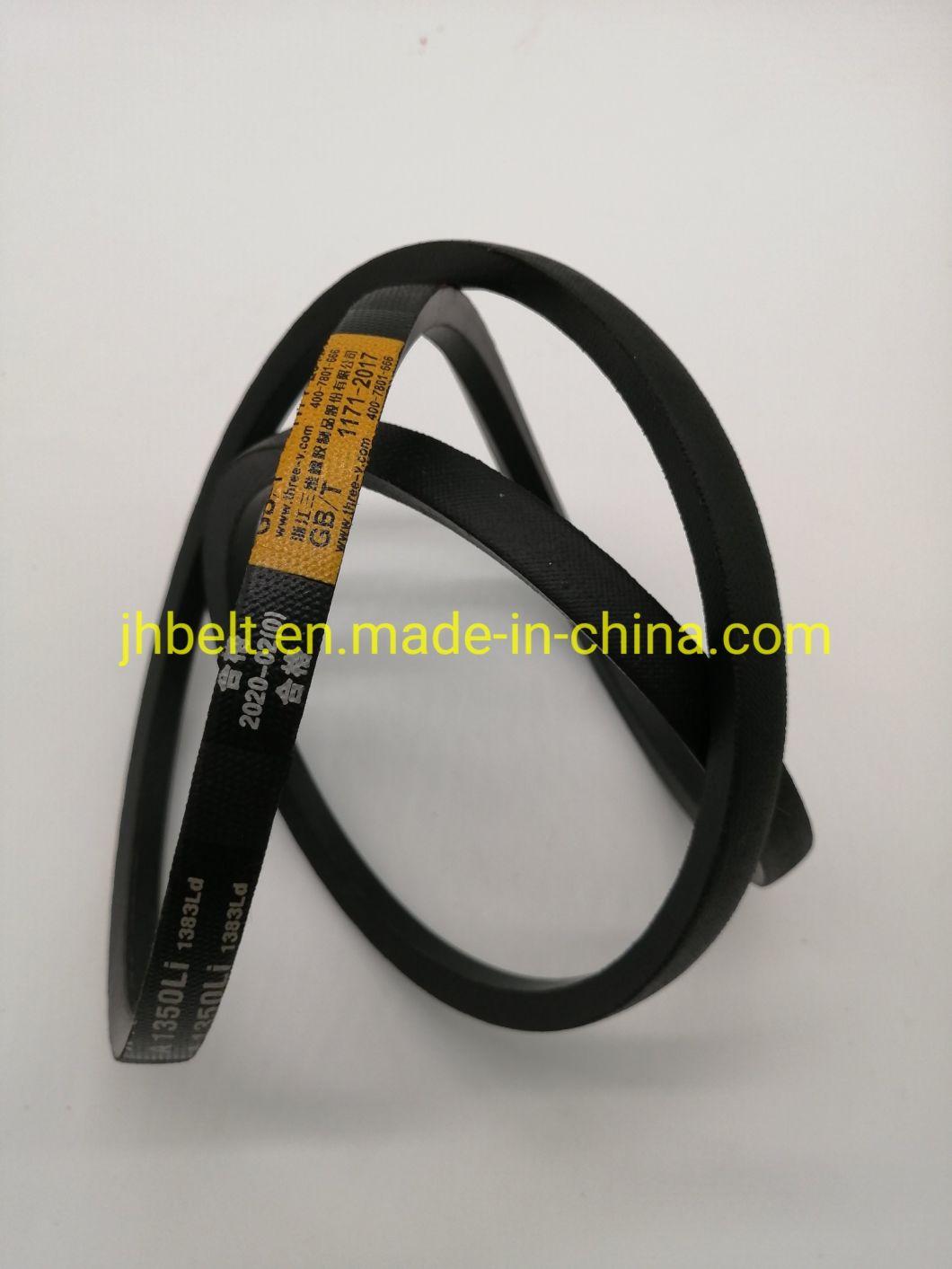

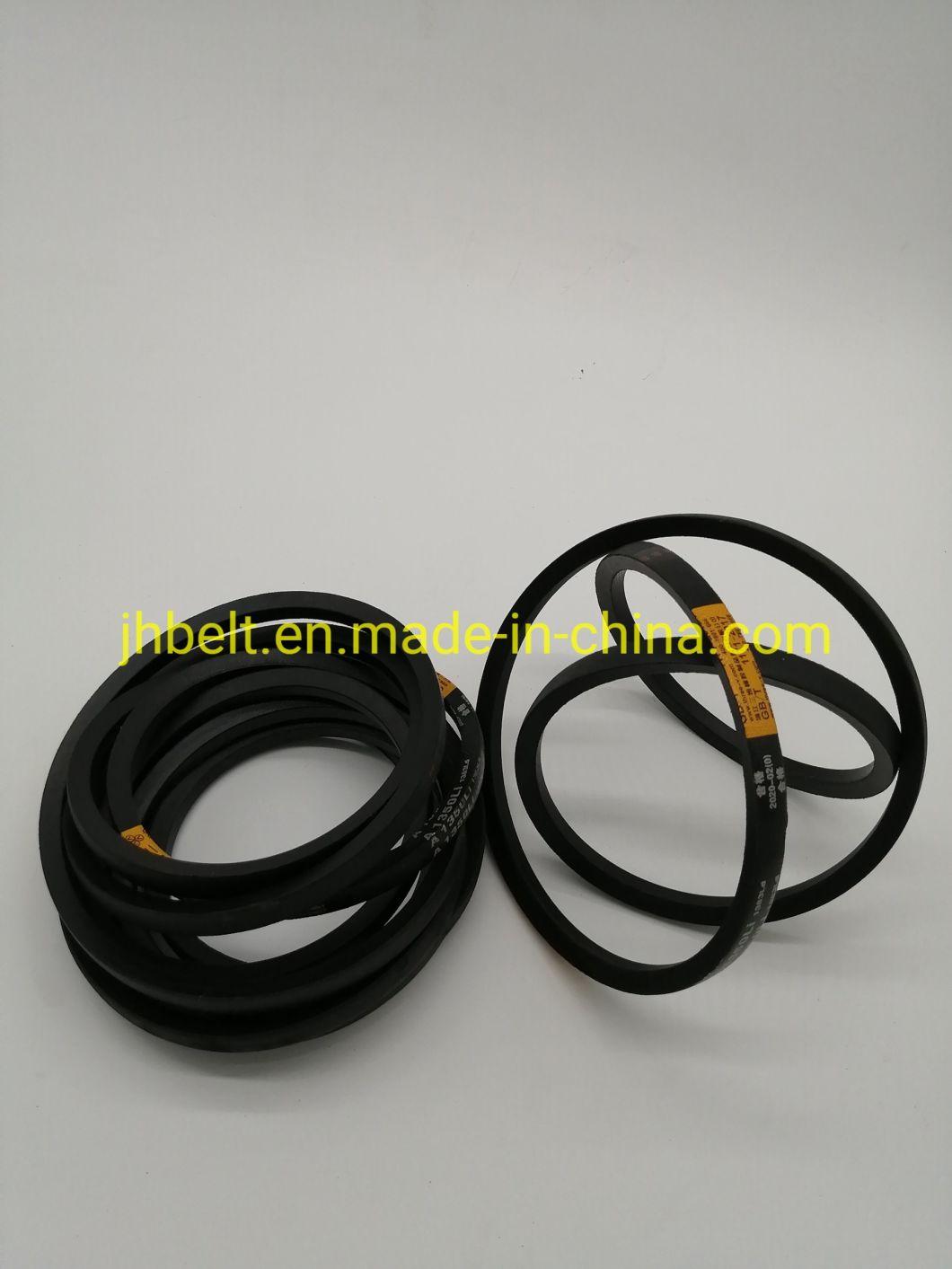

A1350li Rubber V Belt
The Yk Technology Co., Ltd- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
- Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：V Belt
Base Info
- Model NO.：A1350li
- Top Width：10mm-50mm
- Height：6mm-30mm
- Color：Black
- Cord：High Quality Fiberglass
- Max Width：450mm
- Pitch Width：8.5-42.5mm
- Angle：40
- Length Conversion：Li=Ld22-120
- Length Range (Inch)：13-600
- Factory Mark：Li
- Catalogue：Classical Wrapped V-Belt
- Characteristics：High Strength, Low Protraction
- Standard：DIN2215
- Temperature Range：-55c-70c
- Static Conductive：ISO1813
- Transport Package：Export Standard
- Specification：W16-W63.5
- Trademark：UNI Belting
- Origin：Shanghai China
- HS Code：4010390000
- Production Capacity：20000000 Meters
Description
Basic Info.
Model NO. A1350li Top Width 10mm-50mm Height 6mm-30mm Color Black Cord High Quality Fiberglass Max Width 450mm Pitch Width 8.5-42.5mm Angle 40 Length Conversion Li=Ld22-120 Length Range (Inch) 13-600 Factory Mark Li Catalogue Classical Wrapped V-Belt Characteristics High Strength, Low Protraction Standard DIN2215 Temperature Range -55c-70c Static Conductive ISO1813 Transport Package Export Standard Specification W16-W63.5 Trademark UNI Belting Origin Shanghai China HS Code 4010390000 Production Capacity 20000000 MetersProduct Description

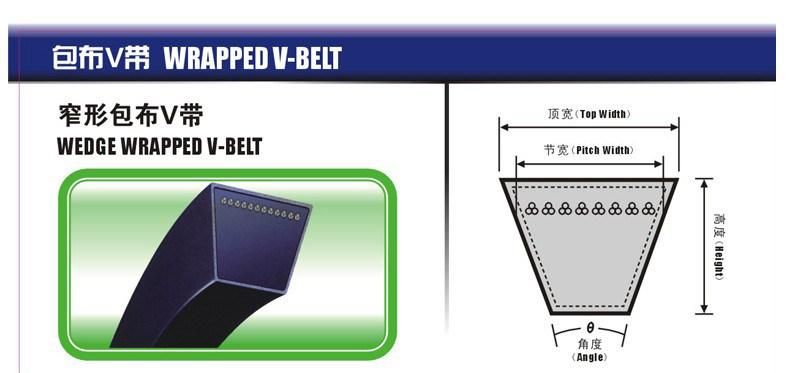

WEDGE WRAPPED V-BELT >>>

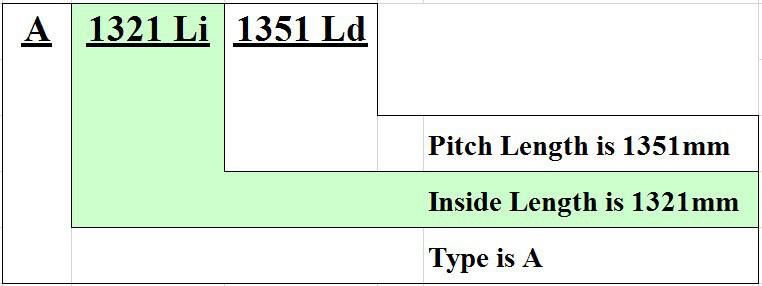

MARKING
The marking of classical wrapped V-belts represent both the inside length and picth length of factory V-belts. The length conversion table is available for conversion between various models.
| Type | Top Width | Pitch Width | Height | Angle | Length Conversion | Length Range (inch) | Length Range (mm) | Factory Mark |
| Z | 10 | 8.5 | 6 | 40° | Li=Ld-22 | 13"-120" | 330-3000 | Li |
| A | 13 | 11.0 | 8 | 40° | Li=Ld-30 | 14"-394" | 356-10000 | Li |
| AB | 15 | 12.5 | 9 | 40° | Li=Ld-35 | 47"-394" | 1194-10000 | Li |
| B | 17 | 14.0 | 11 | 40° | Li=Ld-40 | 19"-600" | 483-15000 | Li |
| BC | 20 | 17.0 | 12.5 | 40° | Li=Ld-48 | 47"-394" | 1194-10008 | Li |
| C | 22 | 19.0 | 14 | 40° | Li=Ld-58 | 29"-600" | 737-15240 | Li |
| CD | 25 | 21.0 | 16 | 40° | Li=Ld-61 | 47"-394" | 1194-10008 | Li |
| D | 32 | 27.0 | 19 | 40° | Li=Ld-75 | 80"-600" | 2032-15240 | Li |
| E | 38 | 32.0 | 23 | 40° | Li=Ld-80 | 118"-600" | 2997-15240 | Li |
| F | 50 | 42.5 | 30 | 40° | Li=Ld-120 | 177"-600" | 4500-15240 | Li |
Classical wrapped V-belts feature high strength, low protraction, small matching tolerance and a fatigue endurance limit of over 107 times.
The product and service range reaches from expert advise, professional planning, conveyor belt and v belt technology and installation. Extensive testing and development methods ensure that our services are of excellent quality and our products in prime condition.
Our technical labs have always been upgrading for testing the physical, chemical, and component properties of materials and finished product.

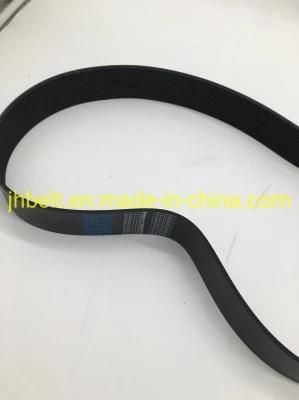

- Pre：Pk1194 Poly V Belt
