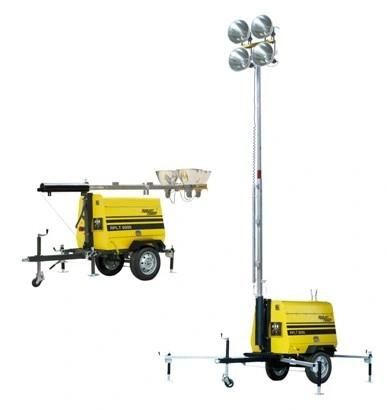

• Model NO.：RPLT-6000
• Duty Stabiliser Legs：4*Manual
• Tyre Size：13 Inch
• Tow Hitch：Ring, Ball Hitch
• Total Power of Lamp：4*1000W
• Transport Package：Plywood Pallet , Plywood Case , Cartons
• Specification：ISO9001: 2000. CE
• Trademark：Robust Power
• Origin：China
• HS Code：94054090
• Production Capacity：250sets,Month

Model RPLT6000Technical Specifications MastMaximum extention of mast 9mElevationMechanicalRaising/lowing mastWinch(Mechanical)Stages3Turning angle358 degrees non-continuousLampTotal power of lamps4×1000WType of lampMetal halide lampLight capacity4×110,000 lumen Voltage230 or 240Frequency50Hz/60HzLifetime of lamp5000hoursWorking temperature≤85Degrees CelsiusConnection Protection indexIP54Light Coverage5 to 7 acresCharacteristics of the generator  ModelRD-10Generator set Prime power50Hz  6.7kW  /  60Hz  8.4kW      Engine modelJapan KUBOTA D1105-BG / UK PERKINS 403D-11GEngine speed50Hz 1500rpm / 50Hz 1800rpmEngine type3 cylinder,in line,water-cooledEngine AspirationNaturalAlternator STAMFORD PI 044FAlternator Type4-pole, brushlessFuel tank capacity 70 LPrime fuel consumption at 100% load2.0L/hWorking hours25Control systemGU602A Digital controllerPower Outlets2Trailer  Tow hitchRing or ball hitchStabilier Supports5 × ManualTire Size52 cmAnti-wind capacity≤10BrakesManualPacking Dimension & WeightRetracted  Dimension 4400mm × 1350mm × 1930mm(Around)Mast Packing3800mm ×350mm ×350mm (Around)Generator set packing1550mm ×1150mm ×1610mm (Around)1000W lamps packing4 pcs 520mm ×520mm ×370mm (Around)Container load (40HQ)6Net weight870kg
