• Model NO.：SNSTY-212
• Illumination Time：10h
• Cell Type：Lithium Battery
• Charging Time (H)：5-6 Hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product/Packing Size：515*320*52mm , 530*390*140mm
• Product/Packing Weight：5.5kg,6.5kg
• Carton Size：560*W570*H410mm
• Qty/CTN：4 Sets,CTN
• Gw for Carton：27kg
• Loading Qty for 20gp：800PCS
• Loading Qty for 40gp：1600PCS
• Transport Package：Strong Carton
• Specification：12W LED 18W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• Production Capacity：China

Basic Info.

Model NO. SNSTY-212 Illumination Time 10h Cell Type Lithium Battery Charging Time (H) 5-6 Hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product/Packing Size 515*320*52mm / 530*390*140mm Product/Packing Weight 5.5kg/6.5kg Carton Size 560*W570*H410mm Qty/CTN 4 Sets/CTN Gw for Carton 27kg Loading Qty for 20gp 800PCS Loading Qty for 40gp 1600PCS Transport Package Strong Carton Specification 12W LED 18W Solar Panel Trademark SINOLTECH Origin China Production Capacity China

Product Description

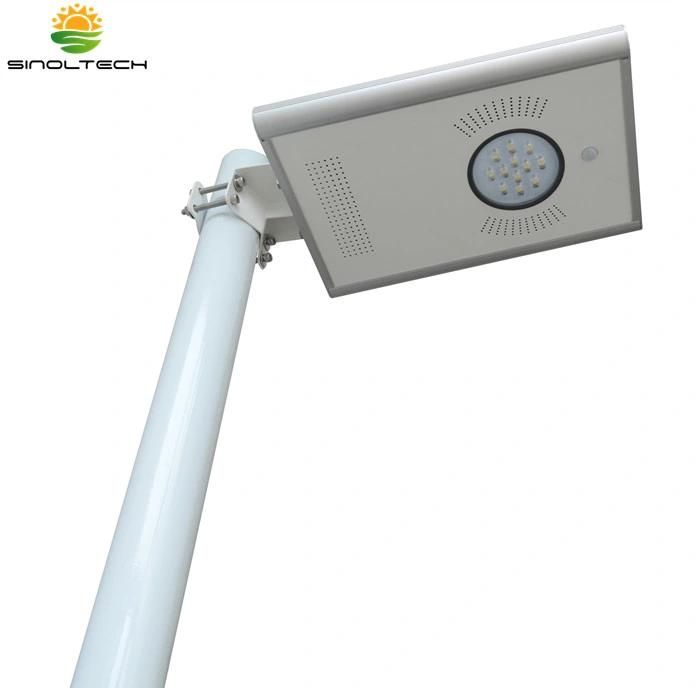

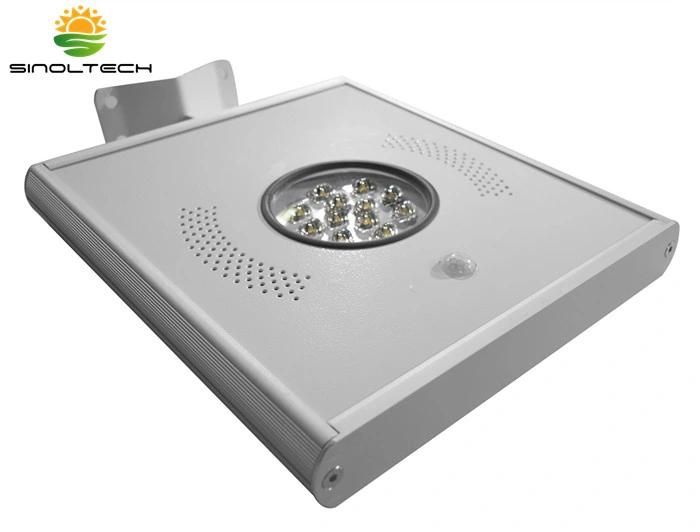

IP65 Motion sensor 12W led Integrated Solar Garden Light

Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.

Application:
Public square, plaza, courtyard, garden, park, street, roadway, pathway, parking lot, private road, sidewark, campus, airfield, farm & ranch, perimeter security, wildlife area, military base ets.

Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.
General specification:

Solar Panel	Max Power	18V25W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery
	Life time	5 years
LED Lamp	Max power	12V 12W
(With sensor)	Led chip brand	Epistar from Taiwan with high brightness
	Lumen(LM)	1300LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	5-6hours
Discharge time	Half power	20 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	3-4m
Space between light	range(m)	8-10m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years

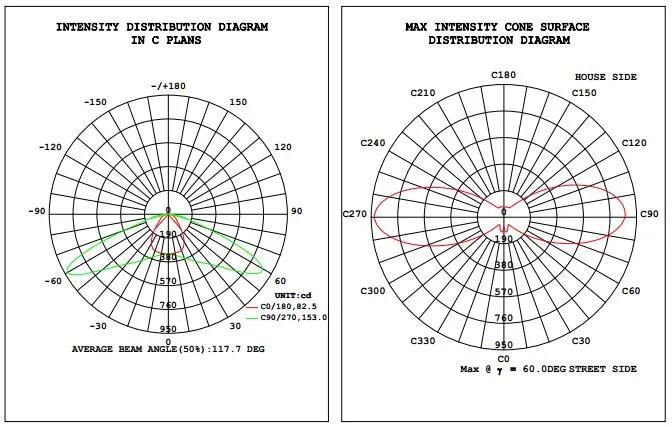

DATA SHEET:
