• Model NO.：RPLT-6800
• Duty Stabiliser Legs：4*Manual or 4*Hydraulic
• Tyre Size：13 Inch
• Tow Hitch：Ring, Ball Hitch
• Total Power of Lamp：4*1000W
• Transport Package：Plywood Pallet , Plywood Case , Cartons
• Specification：ISO9001: 2000. CE
• Trademark：Robust Power
• Origin：China
• HS Code：94054090
• Production Capacity：250sets,Month

Basic Info.

Model NO. RPLT-6800 Duty Stabiliser Legs 4*Manual or 4*Hydraulic Tyre Size 13 Inch Tow Hitch Ring/ Ball Hitch Total Power of Lamp 4*1000W Transport Package Plywood Pallet / Plywood Case / Cartons Specification ISO9001: 2000. CE Trademark Robust Power Origin China HS Code 94054090 Production Capacity 250sets/Month

Product Description

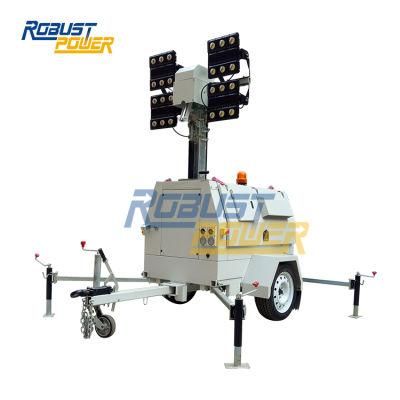

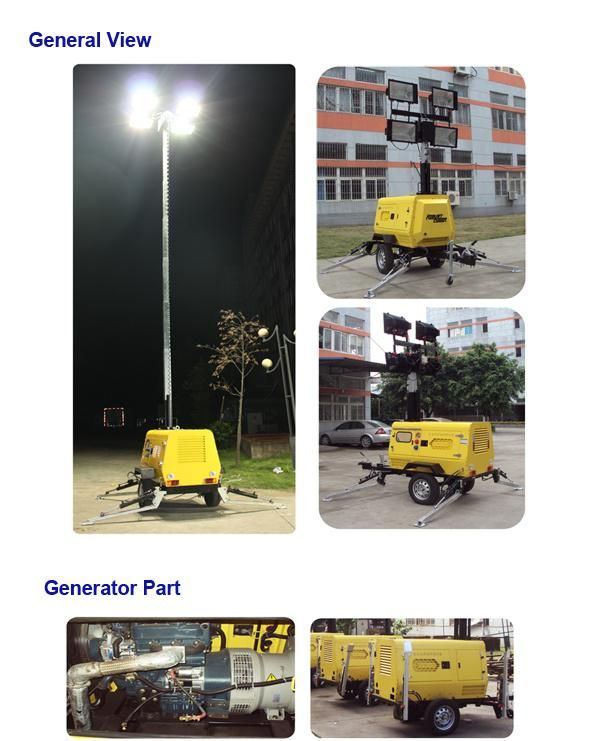

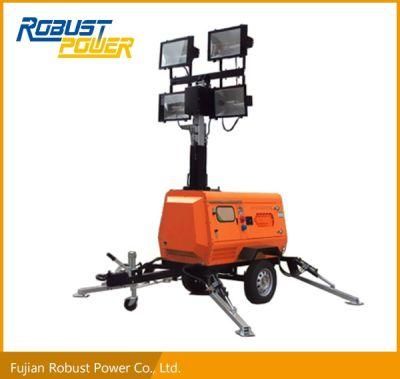

Diesel Light Tower RPLT-6800

Key Features:

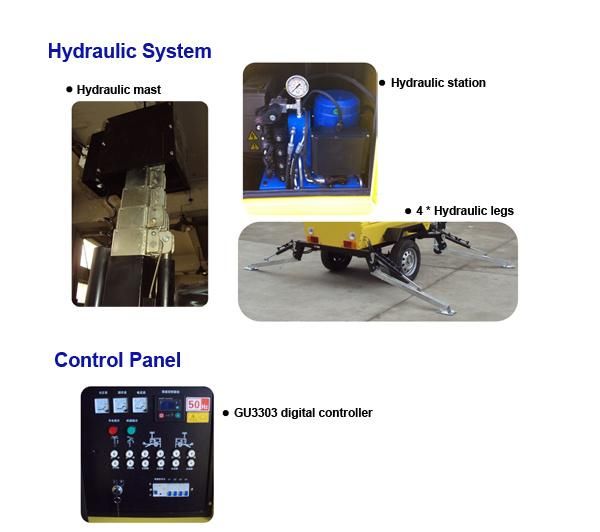

* Hydraulic articulated mast
 6 section
 1 person set up
 1 hand manual rotation

* Retractable drawbar for side by side loading on transport tray

* High output and low fuel consumption.
 Can be used as generator unit during daylights hours.

* Padlockable door latches
 Two side maintenance

* Galvanized Mast tower
  3 section mast telescoping
  9m can be rotated 358 degrees

* Integral forklift pockets

* External emergency stop button

* 880kg net weight

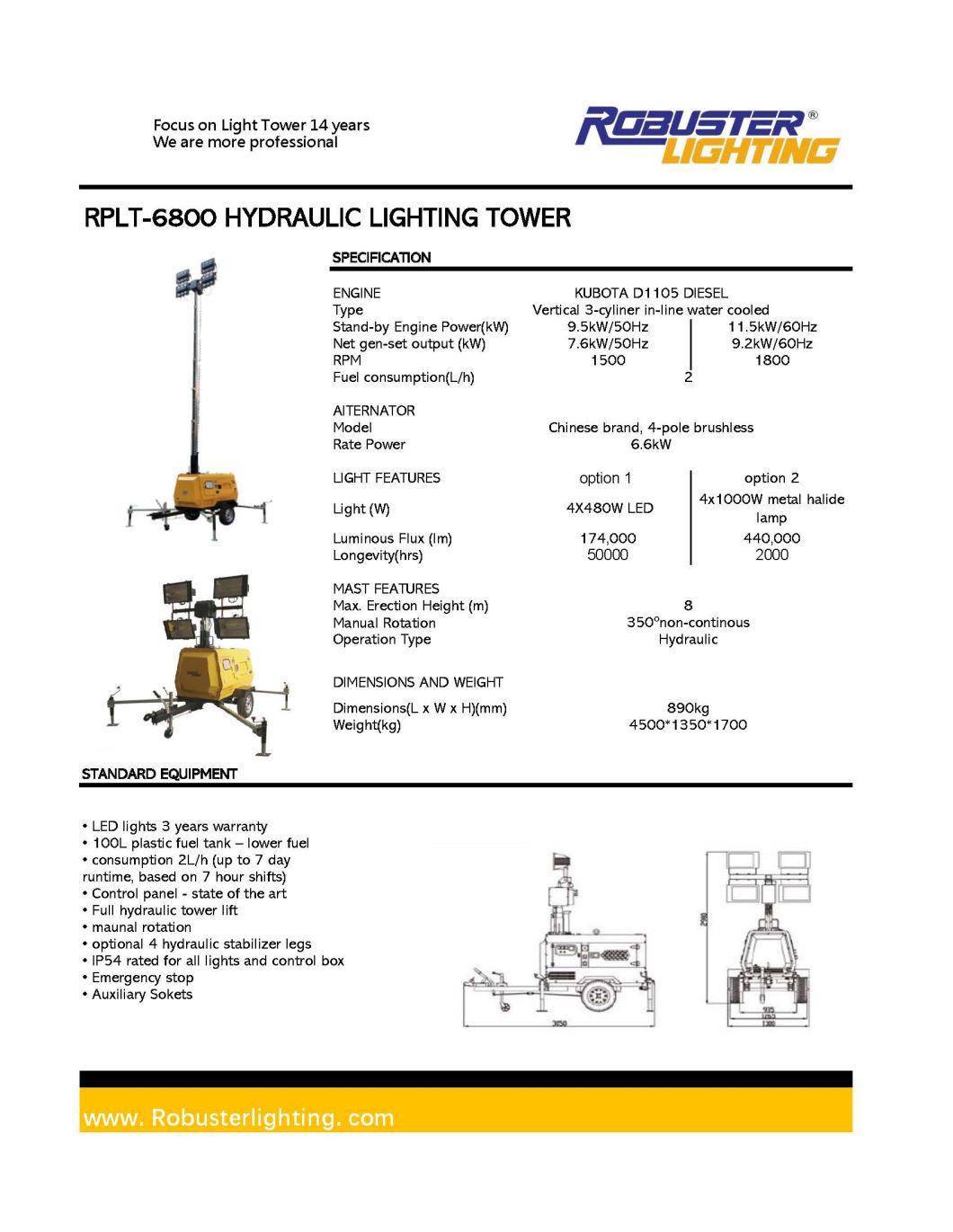

Model	RPLT-6800
Maximum  extension  of  mast	8 m
Raising/lowing  mast	Hydraulic
Turning  angle  of  light  bar	360  degrees
Power  of  lamps	4× 1000  watts

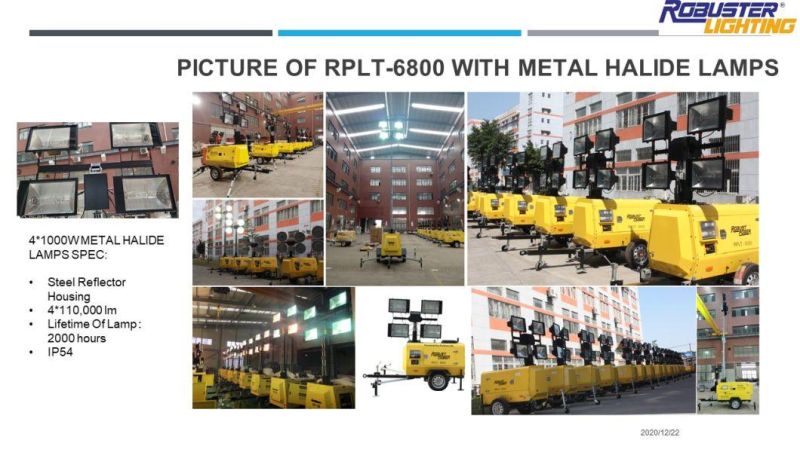

Type  of  lamps	Metal  halide  lamps
Generator  model	RD-10K
Engine  model	KUBOTA  D1105-BG  Diesel
Engine  type	3  cylinder, in-line, water-cooled
Engine  Aspiration	Natural
Alternator  type	4-pole, brushless, self-excitation
Rated  power	6.7 KW/50HZ    8.4 KW/60 HZ
Maximum  power	7.4 KW/50HZ    9.2 KW/60 HZ
Frequency	50 / 60 HZ
Phase	Single
Starting  system	12VDC
Fuel  tank  capacity	100L
Continuous  operating  time	50  hours
Retracted  dimension	2560× 1300× 2450  (L× W× H  mm)
Net  weight	880kg
Container  load  quantity	6  units  /  20ft    12  units  /  40ft
Options
Alternator	Leroysomer  or  Stamford
Engine	Perkins(UK)
Trailer	AL-KO(Germany)
