Auto Paint Spray Booth and Preparation Bay for Car Refinishing

Hangzhou Mig Packaging Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Airflow Direction：Fully Undershot-type
  • Heating Mode：Gas Heating

Base Info

  • Paint Mist Treatment：Dry-type
  • Condition：New
  • Plenum (Height)：600mm
  • Extraction：800mm
  • Walls：50mm Rock Wool Walls
  • Brightness：>1, 000lux
  • Empty Loaded Air Speed：0.25m,S
  • Burner：Riello Gas Burner RS5d
  • Noise：<78dB
  • Maximum Working Temperature：80 Degrees Celsius
  • Warranty：2 Years
  • Inverter：Schneider
  • Grids Carrying Capacity：900kg,Wheel
  • Extraction Area：38.71m2
  • Air Volume：35,000m3,H
  • Rated Power：28kw
  • Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
  • Specification：7900 X 4900 X 2800mm (L X W X H)
  • Trademark：INFITECH
  • Origin：Guangzhou, China
  • HS Code：8419899090
  • Production Capacity：1000 Sets,Year

Description

PAINT BOOTHITEMSSPECIFICATIONSModelPaint Booth for Training CenterDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions 7900 X 4900 X 2800mm (L X W X H)External dimensions8400 X 5000 X 5000mm (L X W X H)AirflowFull DowndraftPlenum (height)600mmExtractionThrough 800mm pit in the groundExtraction area38.71m2Grids carrying capacity900kg/wheelEntrance door3900x2700mm (WxH), 1 setService door800x2000mm(WxH), 2 setsSide wallsDouble-layer vacuum glass windows, 50mm thickBack walls & ceiling panels50mm rock wool walls, 0.6mm substrateCeiling lights (LED)10 sets, each 6 X 18W, 1,080W totalBrightness>1,000LUXFiltersBag filter, high efficiency ceiling filter, floor filter, exhaust filterIntake/Exhaust unitDirect-type turbine fan, 2x11KW, SIEMENS motorAir volume35,000m3/hEmpty loaded air speed0.25m/sHeats315kw heat exchanger, RIELLO gas burner RS5DMaximum working temperature 80ºCControlsCE standard control boxInverter SCHNEIDER inverterStack light YesOverhead steel platform Placing machinery at the top of the spray booth.Rated power28KW PREP STATIONITEMSSPECIFICATIONSModelPrep Station for Training CenterDesign standardBS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009Internal dimensions6900×4900×2800mm (L×W×H)External dimensions7600×5000×5000mm (L×W×H)Side wallDouble-layer vacuum glass windows, 50mm thickRear wall50mm rock wool panelsPlenumWith plenum, 600mm(H)ExtractionThrough 800mm deep pit in the groundGrids carrying capacity700kg/wheelFilter areas32m2Front openingManual soft curtainsDividerElectric soft curtain doorCeiling lighting8 sets, each 4 X 18W, 576W totalBrightness> 700LuxExhaust system1×7.5KW, 970RPM, 380V, 50HZ, SIEMENS motorAir volume28,000m3/h, 650paFiltersHigh efficiency ceiling filter, floor filter, exhaust filterControlsSoft start, emergency stop switch, lighting,
failure indicationElectrical & Tool cabinetsYes, integrated on the rear wall.Overhead infrared lampsYes.Overhead steel platformPlacing machinery at the top of the prep station.Special itemRated power: 10KW
3.DETAILS

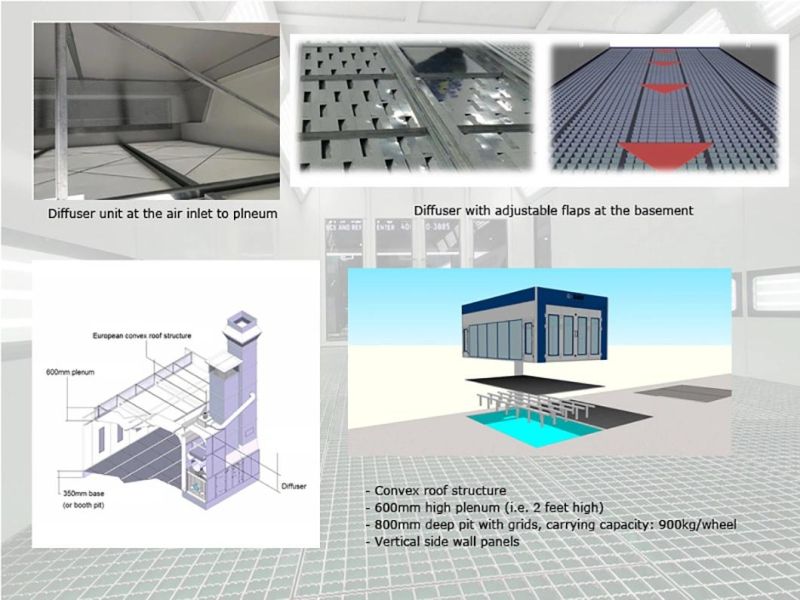

AIRFLOW & BOOTH STRUCTURE
  1. Downdraft airflow
  2. 600mm plenum
  3. Vertical walls.
  4. 800mm pit for extraction
Auto Paint Spray Booth and Preparation Bay for Car Refinishing

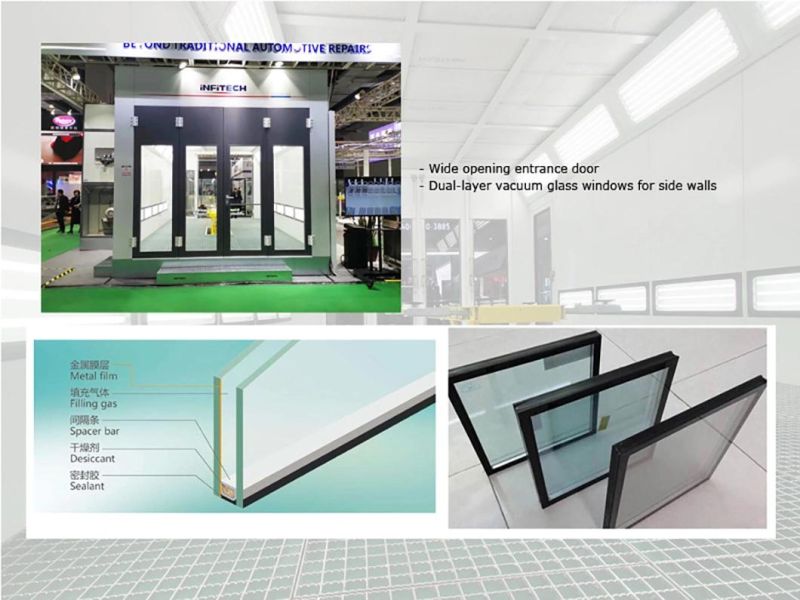

DOORS & WALLS
  • 2+2 structure entry door: 3900x2700mm
  • Side walls: dual-layer vacuum glass windows for side walls, convenient for observation during the training process
Auto Paint Spray Booth and Preparation Bay for Car Refinishing

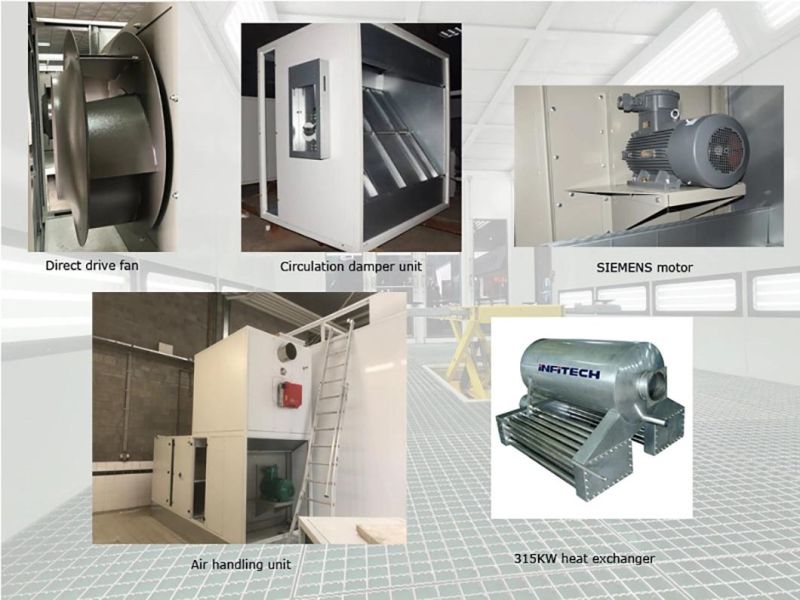

AIR INTAKE AND EXHAUST UNIT
  • Non-spark fan & SIEMENS motor
  • Cycle damper (for spraying and baking phase) - for paint booth
  • 315KW heat exchanger and RIELLO gas burner RS5D - for paint booth
Auto Paint Spray Booth and Preparation Bay for Car Refinishing

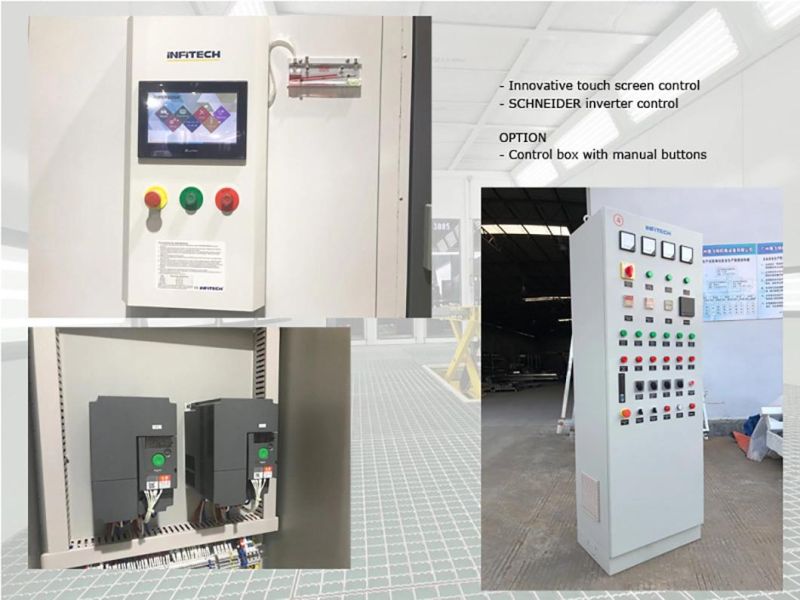

CONTROL
  • Touch screen control panel with basic functions and safety functions
  • SCHNEIDER inverter control

UPGRADE
  • Traditional control panel with manual buttons
  • Automatic pressure adjustment
Auto Paint Spray Booth and Preparation Bay for Car Refinishing

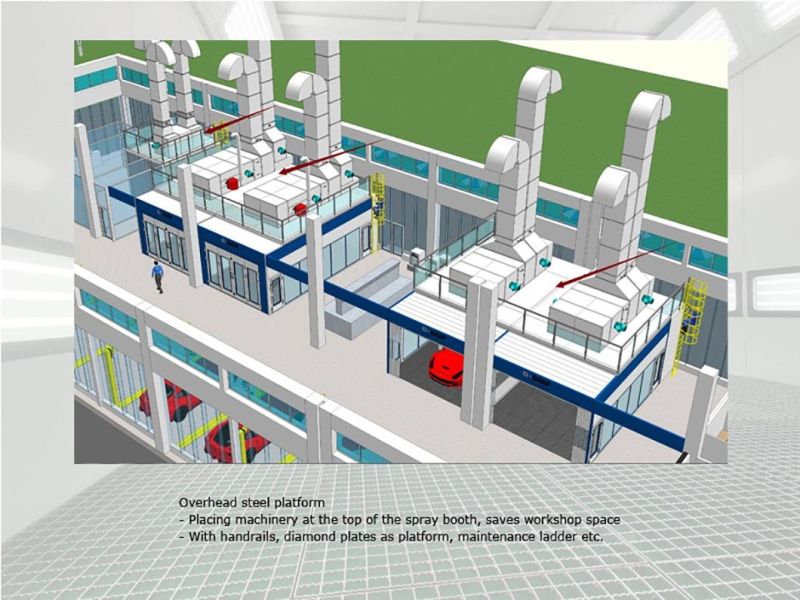

OVERHEAD STEEL PLATFORM
Application: for placing machinery at the top of spray booth, save workspace.
  • Consists of support column, steel platform frame, skid-proof diamond plate, handrail, access stairs and access barriers.
  • The loading capacity of the platform: 500kg/m2.
  • The handrail adopts double layer vacuum tempered glass, with sound-proof protection device inside.
Auto Paint Spray Booth and Preparation Bay for Car Refinishing

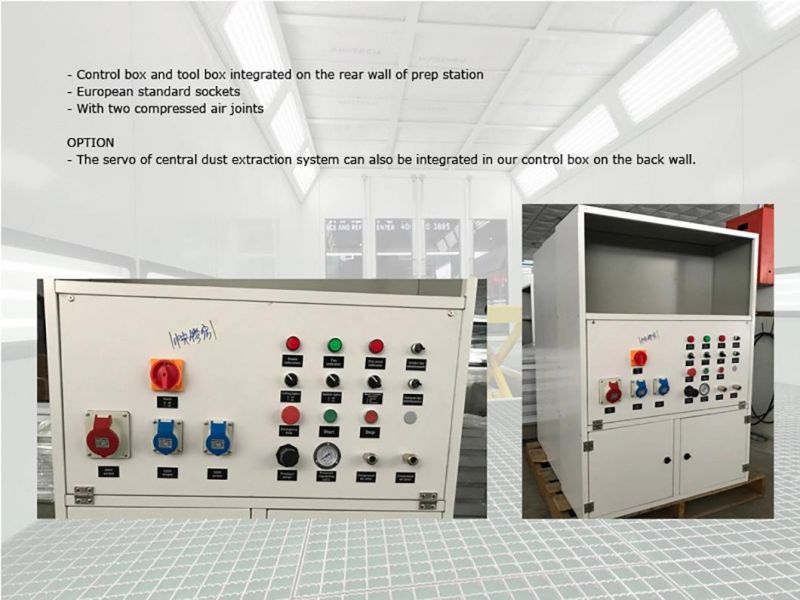

CONTROL BOX AND TOOL BOX (PREP STATION)
Arrangement: on the rear wall

OPTION
  • The servo of central dust extraction unit can be integrated in the control panel
Auto Paint Spray Booth and Preparation Bay for Car Refinishing

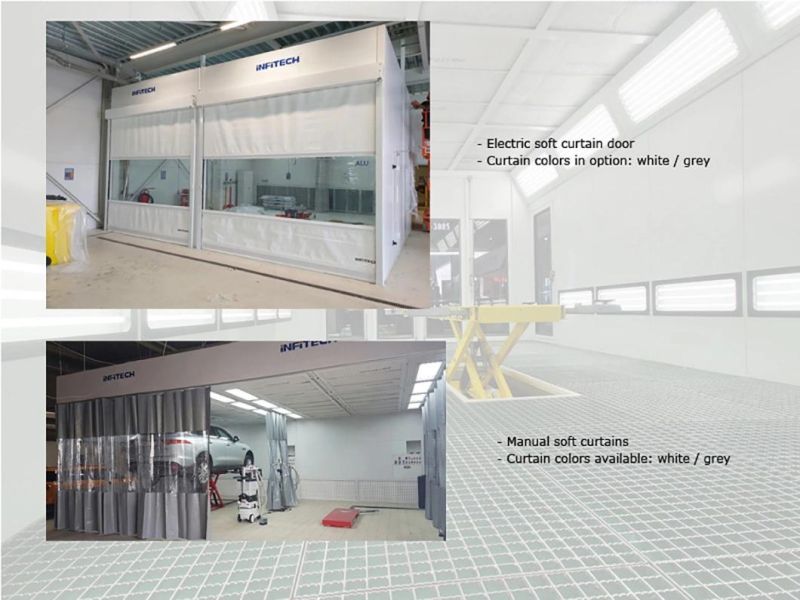

ELECTRIC SOFT CURTAIN DOOR & MANUAL SOFT CURTAINS (FOR PREP STATION)
Auto Paint Spray Booth and Preparation Bay for Car Refinishing
FAQQ: I do not need to put the machinery at the top.A: That's okay. We can cater to your requirements. Please send your inquiry, and we will work out the ideal solution for you.
 Q: Is the observation glass on the side walls heat insulation?A: Yes. It consists of two layers of tempered glass, and the middle is filled with gas. It can help preserve heat of the booth.
 Q: Is paint mixing room available?A: Yes. Additionally, we can follow your supplied dimensions and layout for the paint mixing room.
 Q: Do you also supply paint booth for industrial application?A: Certainly. Infitech provides coating solution for the automotive, and industrial manufacturing industry, including furniture, heavy machinery etc. And we have abundant experience in offering and delivering customized solutions.
 Q: What about the warranty service?A: Infitech offers 2 year warranty for paint booths.
 Q: How can I pay you?A: Please make the payment by T/T, 50% payment upon order confirmation, and balance before shipment.
Specially, we can also accept payment method of L/C, West Union etc.
