Infitech Customized Spray Booth with Automatic Conveyor Chain

Hangzhou Mig Packaging Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Airflow Direction：Fully Undershot-type
  • Heating Mode：Gas

Base Info

  • Model NO.：Customized
  • Paint Mist Treatment：Wet-type
  • Condition：New
  • Transport Package：Polyfoam and Metal Frame
  • Specification：12000 X 2500 X 3150mm (L X WX H)
  • Trademark：INFITECH
  • Origin：China
  • HS Code：8419899090
  • Production Capacity：300 Sets Per Year

Description

Technical DataItem A: Water-curtain paint boothDESIGN STANDARDBS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009INTERNAL DIMENSIONS3000 X 2200 X 3150mm (L X WX H)EXTERNAL DIMENSIONS3100 X 3100 X 4710mm (L X WX H)PERSONNEL DOOR1 set, 800x2000mm (B x H)CEILING LIGHTING (LED)2 sets of light fixtures, each 4X18W, total 144WILLUMINATION> 700LuxINTAKE SYSTEM2.2KW motor, 12,500 m3/h; 380V, 50HzEXTERNAL DIMENSIONS OF WATER CURTAIN BOOTH2500 X 800 X 2500mm (L X WX H)EXHAUST FANDirect drive motor 5.5KW, 13,500 m3/h; 380V, 50HzPAINT MIST TREATMENTWater spin treatmentNOISE<78 dbRATED POWER11KW Item B: Flash boothDESIGN STANDARDBS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009INTERNAL DIMENSIONS3000 X 2400 X 3150mm (L X WX H)EXTERNAL DIMENSIONS3100 X 2500 X 3200mm (L X WX H)SIDEWALL LIGHTING (LED)1 set of light fixture, each 2 X 18W, 36W totalRATED POWER1KW Item C: Curing boothDESIGN STANDARDBS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009INTERNAL DIMENSIONS12000 X 2500 X 3150mm (L X WX H)EXTERNAL DIMENSIONS12600 X 2600 X 4710mm (L X WX H)MAINTENANCE DOOR2 sets; 800x2000mm (B x H)SIDEWALL LIGHTING (LED)3 sets of light fixtures, each 2 X 18W, 108W totalCIRCULATING FAN5.5KW, 10,000m3/h; 380V, 50HzNOISE<78 dbEXHAUST FAN1.5KW/1450RPM/380V/50HZ, 5,000m3/hHEATING SYSTEMRIELLO Gas burner FS20HEAT EXCHANGER POWER200KWMAXIMUM OPERATING TEMPERATURE80oCRATED POWER7.5KW
Item D: Automatic conveyor chainModel No.XT100 overhead conveyor chainPitch X hanging distance100 × 600mmBearing capacity of the single lifting point200kgDiameter of the rotary wheelΦ1000mmSpeed of the conveyor chain0.8-2.5m/min(adjustable)Total length of the conveyor chain60mHeight of the suspension chain3000mmDriving power of the conveyor chain2.2KW/380V/50HzSpreader deviceThe spray line has total 60 hanger rods, the upper part of each hanger rod has a bearing and a bearing block which are strictly sealed, not being polluted by paint. Sprocket is mounted at the center, work-piece can rotate along the axis, connection rings are fixed at the lower part, which is connected with clivers.Control system1 setSpecial ItemChain suspension steel structure, 1 set
Product details

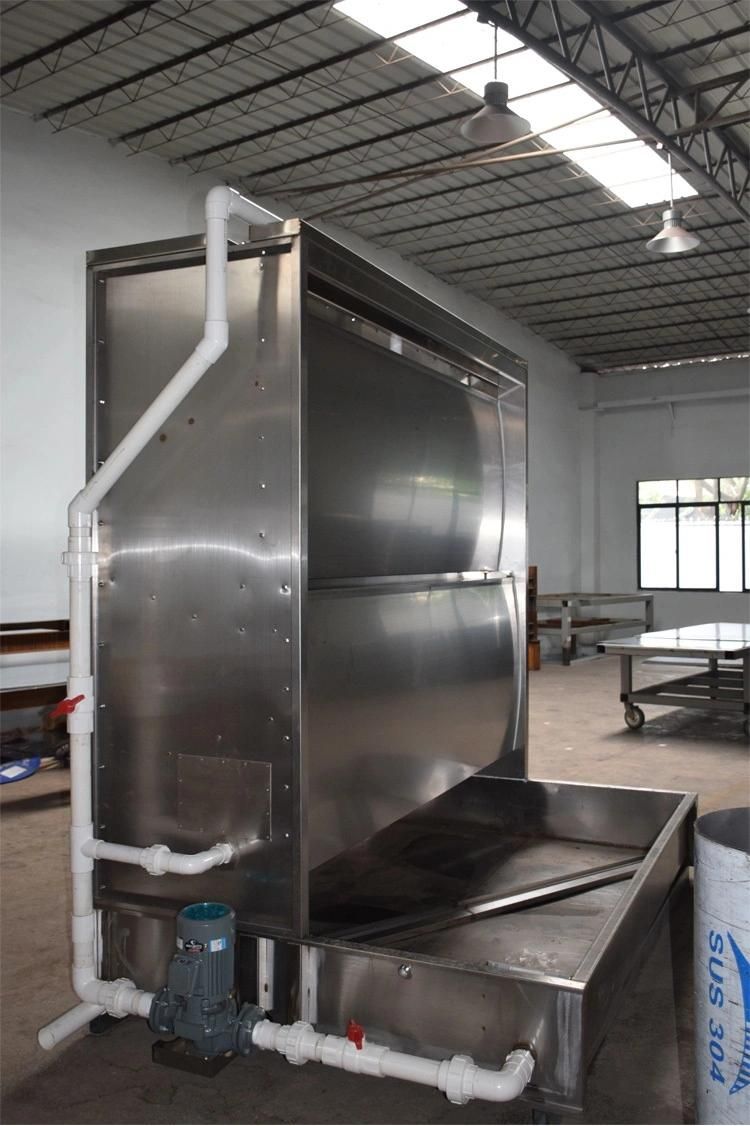

-  Water-curtain booth
Infitech Customized Spray Booth with Automatic Conveyor Chain
-  Driving system of the conveyor chain
Infitech Customized Spray Booth with Automatic Conveyor Chain

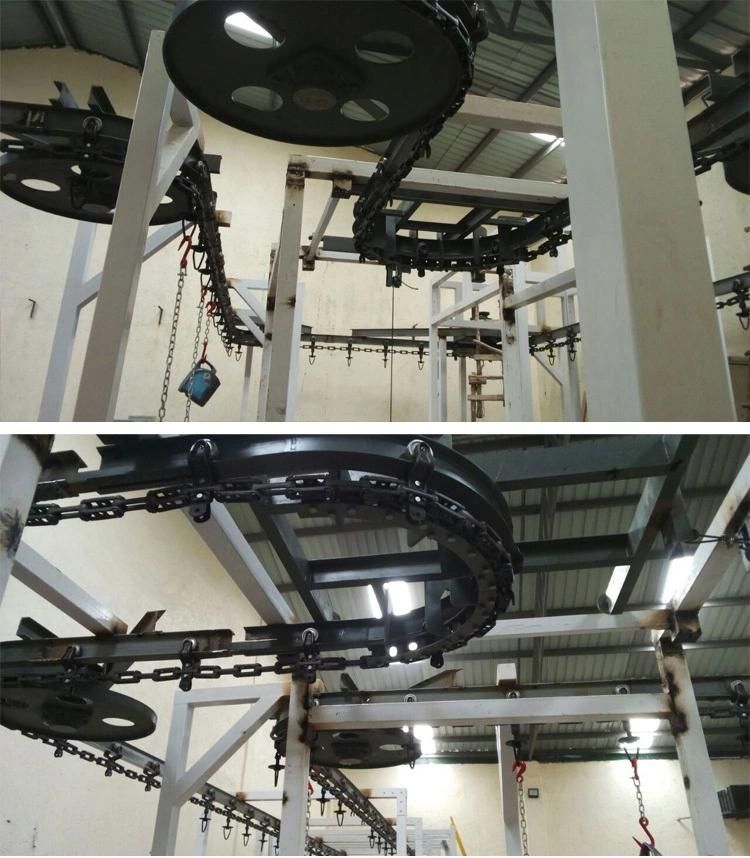

Conveyor chain
Infitech Customized Spray Booth with Automatic Conveyor Chain

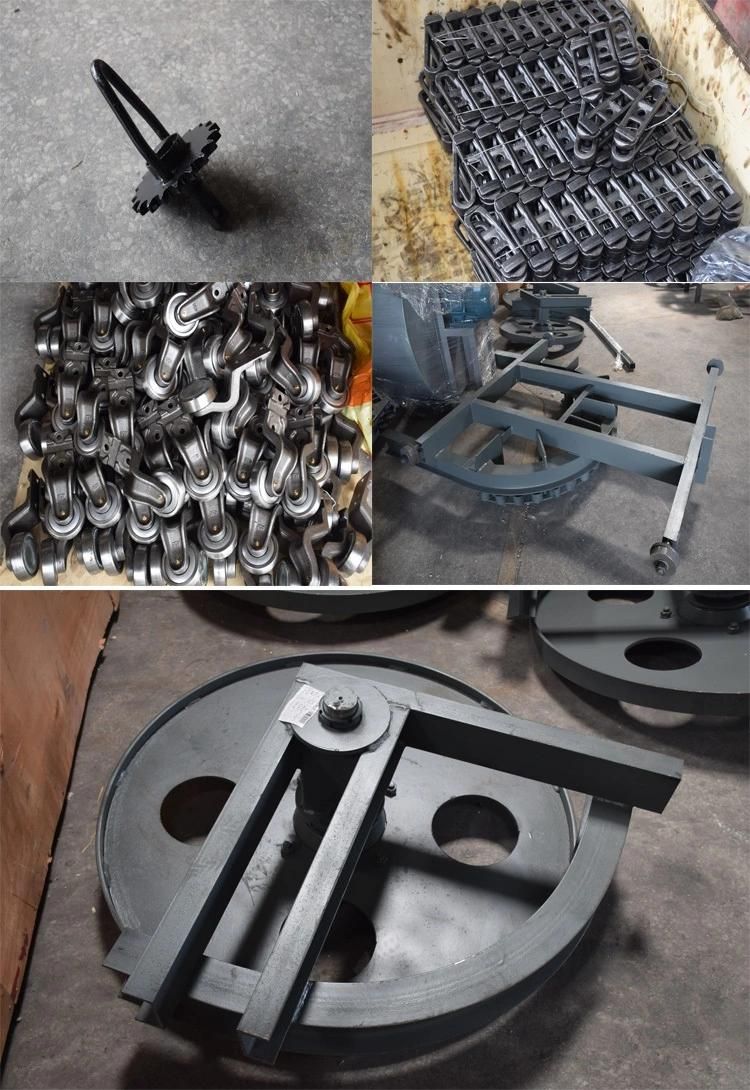

Parts of the conveyor chain
