CE Premium Quality Car Spraying and Baking Booth for Auto Body Shops
Hangzhou Mig Packaging Co., Ltd.- Warranty：2 Years
- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Infitech
- Coating：Powder Coating
Base Info
- Model NO.：IT-701
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Plenum (Height)：600mm
- Extraction：350mm
- Walls：50mm Rock Wool Walls
- Brightness：>1,200lux
- Empty Loaded Air Speed：0.24m,S
- Heat Exchanger：232kw
- Noise：<78dB
- Maximum Working Temperature：80 Degrees Celsius
- Inverter：Schneider
- Rated Power：20kw
- Extraction Area：31.5m2
- Stack Light：Yes
- Air Volume：28,000m3,H
- Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
- Specification：7000 X 4500 X 3000mm (L X W X H)
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Sets,Year
Description
SPRAY BOOTHITEMS SPECIFICATIONS Model IT-SUPER-701 Spray Booth for Auto Body Shops Design standard BS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009 Internal dimensions 7000 X 4500 X 3000mm (L X W X H) External dimensions 8560 X 4600 X 3660mm (L X W X H) Airflow Full Downdraft Plenum (height) 600mm Extraction 350mm basement sunken in the ground Extraction area 31.5m2 Grids carrying capacity 900kg/wheel Entrance door 3400x2900mm (WxH), 1 set Service door 800x2000mm(WxH), 1 set Walls 50mm rock wool walls Ceiling lights (LED) 8 sets, each 6 X 18W, 864W total Sidewall lights (LED) 8 sets, each 2 X 18W, 288W total Brightness >1,200LUX Filters Bag filter, high efficiency ceiling filter, floor filter, exhaust filter Intake/Exhaust unit Direct-type turbine fan, 2x7.5KW, SIEMENS motor Air volume 28,000m3/h Empty loaded air speed 0.24m/s Heats 232kw heat exchanger, RIELLO gas burner RS5 Maximum working temperature 80ºC Controls CE standard control box Inverter SCHNEIDER inverter as option Stack light Yes. Rated power 20KW ITEMS SPECIFICATIONS Model Car Prep Station Design standard BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 Internal dimensions 7000×4400×3000mm (L×W×H) External dimensions 8310×4500×3660mm (L×W×H) Rear wall Single layer galvanized steel, powder coated Plenum With plenum, 600mm(H) Exhaust plenum chambers 3470*660*800mm Filter areas 2.7m2 Front door 4200x2650mm, 1 set, electric soft curtain door Divider door 5800x2650mm, 1 set, electric soft curtain door Ceiling lighting 8 sets, each 4 X 18W, 576W total Brightness > 800Lux Exhaust system 1×7.5KW, 970RPM, 380V, 50HZ, SIEMENS motor Air volume 28,000m3/h, 650pa Filters High efficiency ceiling filter, pleated andreae filters + fiberglass filter, exhaust filter Controls Soft start, emergency stop switch, lighting,
failure indication Electrical & Tool cabinets Yes. Special item Rated power: 10KW
3.DETAILS
BOOTH STRUCTURE (SPRAY BOOTH)
OPTION
4-LEAF MAIN DOOR & LIGHTS (SPRAY BOOTH)
GENERATOR UNIT (SPRAY BOOTH)
Notes:

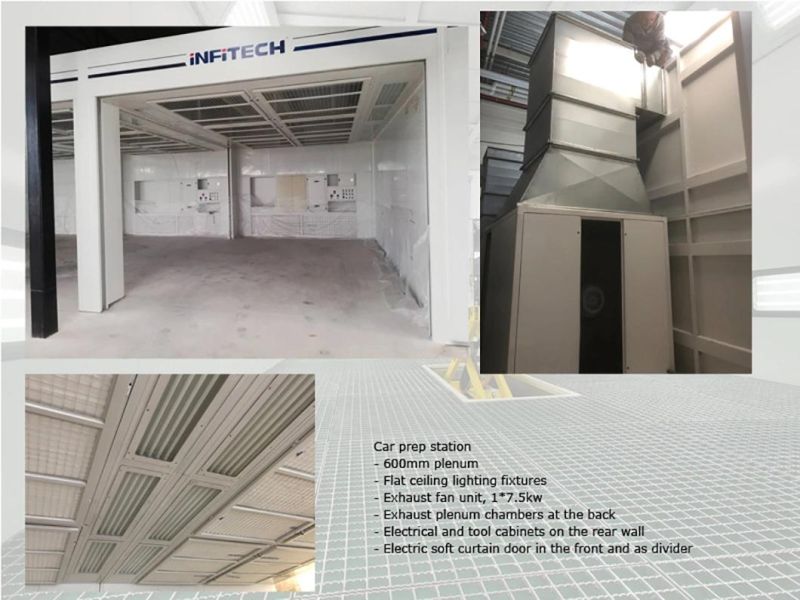

CAR PREP STATION
- 600mm plenum
- Flat ceiling lighting fixtures
- Exhaust fan unit, 1*7.5kw
- Exhaust plenum chambers at the back
- Electrical and tool cabinets on the rear wall
- Electric soft curtain door in the front and as divider

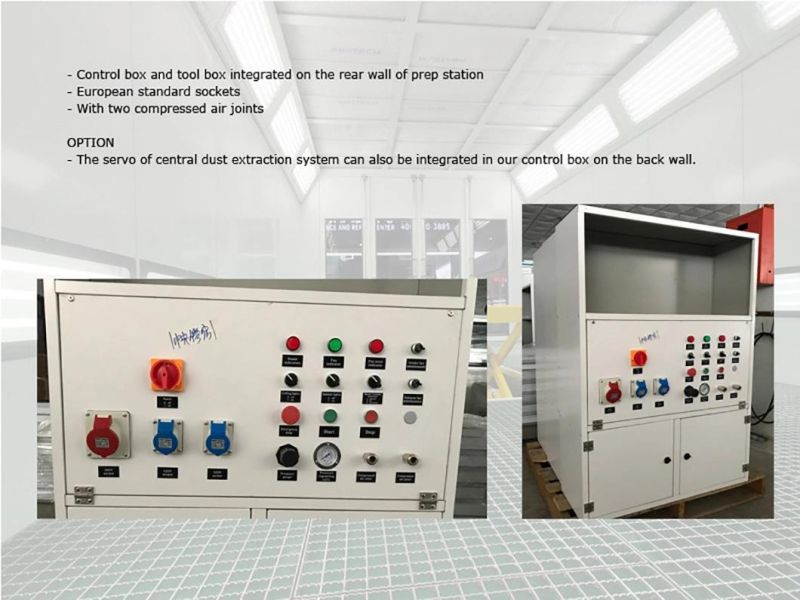

CONTROL BOX AND TOOL BOX (FOR PREP STATION)

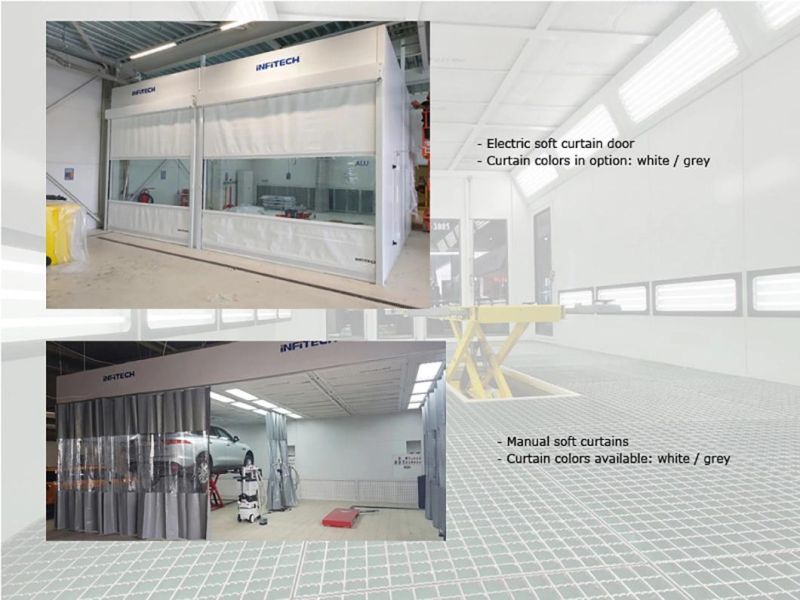

ELECTRIC SOFT CURTAIN DOOR
FAQQ: How do I know if your spray booth can fit my shop?A: Not sure if the booth will fit we provide CAD shop layouts to make sure you get the right booth configuration and dimensions for your shop. Please send your specific inquiry through. We will work out the detailed drawing for your approval.
Q: Could you tell me how many prep stations and spray booths that I need and how shall I get them arranged at the shop if I tell you the required production capacity and the shop dimensions?A: Certainly. Infitech can provide complete auto body shop design and layout for you. You can send us your requests, and we will work out the ideal solution for you.
Q: For the prep bay, I want downdraft airflow.A: No problem. We can adapt to your requirements.
Q: How long is the warranty period?A: 2 years.
Q: How do you respond if some parts are missing after I get the spray booth?A: We will send new parts to you or we send drawings for you to have them manufactured locally. For the additional cost incurred, we will pay back to you.
As we know, spray booth is not a simple product, but it is a project. It is difficult for us to ensure everything is 100% perfect. But what we can do is to respond to your requests in time, and get problems solved. In the meantime, we do the best to get things correct when we pick up goods for package and shipment.
Q: How many sets of spray booth can be shipped in 1 container?A: It depends on the spray booth configurations. For this standard spray booth IT-701, 2 sets can be shipped together in 1 big container.
BS EN 60204: 2006+A1:2009
BS EN 60204: 2006 + A1: 2009
failure indication
3.DETAILS

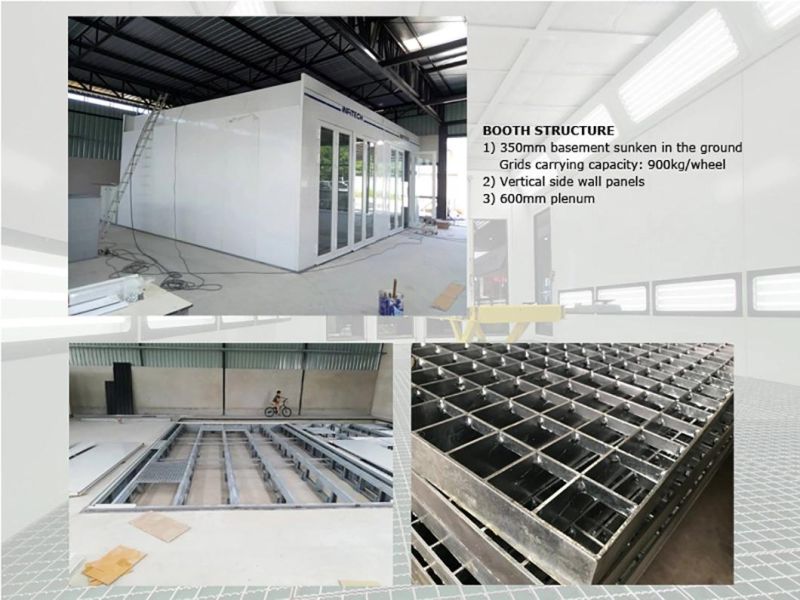

BOOTH STRUCTURE (SPRAY BOOTH)
- 350mm high basement sunken in the ground
- Vertical wall panels
- 600mm plenum
OPTION
- Other types of basement design are available. Contact us for more details.

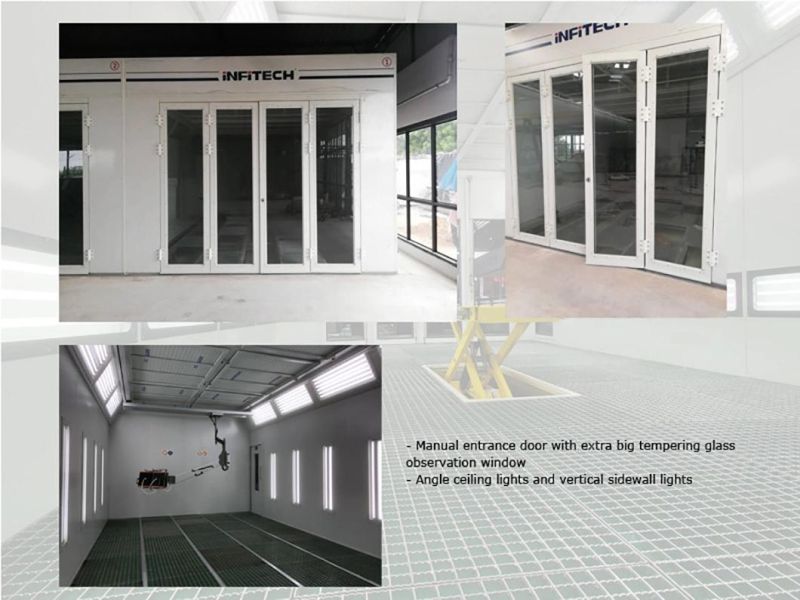

4-LEAF MAIN DOOR & LIGHTS (SPRAY BOOTH)
- Main entry door with big safety glass windows and panic latch
- LED lamps, IP55 protection grade lighting fixtures

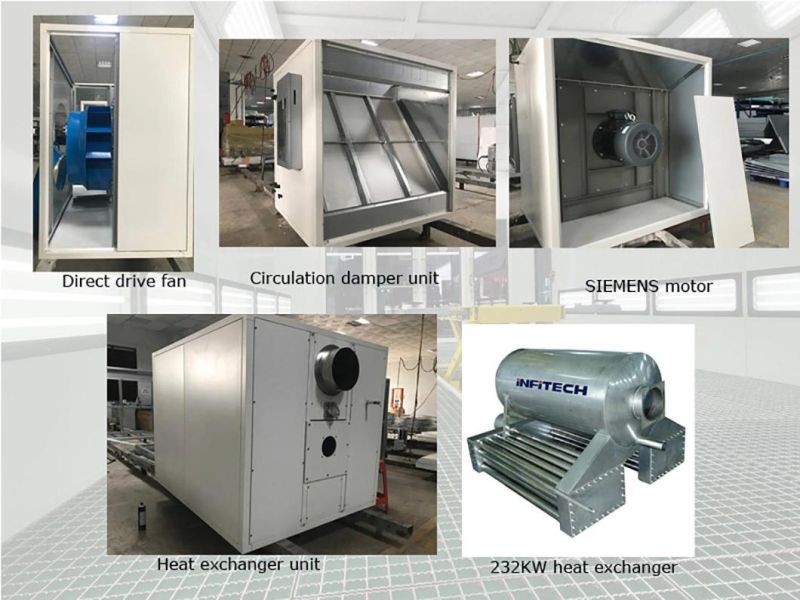

GENERATOR UNIT (SPRAY BOOTH)
- 2*7.5kw fan unit, SIEMENS motor
- 28,000m3/h air volume, 0.24m/s empty loaded air speed
- Cycle damper (for painting and baking phase)
- 232kw heat exchanger, RIELLO RS5 diesel burner
Notes:
- Non-spark fan design perfectly conforms to EN13355-2004 requirements for fans.
- Motor and fan are completely separated, meeting the compulsory requirements for fans in EN13355-2004.
CAR PREP STATION
- 600mm plenum
- Flat ceiling lighting fixtures
- Exhaust fan unit, 1*7.5kw
- Exhaust plenum chambers at the back
- Electrical and tool cabinets on the rear wall
- Electric soft curtain door in the front and as divider
CONTROL BOX AND TOOL BOX (FOR PREP STATION)
ELECTRIC SOFT CURTAIN DOOR
FAQQ: How do I know if your spray booth can fit my shop?A: Not sure if the booth will fit we provide CAD shop layouts to make sure you get the right booth configuration and dimensions for your shop. Please send your specific inquiry through. We will work out the detailed drawing for your approval.
Q: Could you tell me how many prep stations and spray booths that I need and how shall I get them arranged at the shop if I tell you the required production capacity and the shop dimensions?A: Certainly. Infitech can provide complete auto body shop design and layout for you. You can send us your requests, and we will work out the ideal solution for you.
Q: For the prep bay, I want downdraft airflow.A: No problem. We can adapt to your requirements.
Q: How long is the warranty period?A: 2 years.
Q: How do you respond if some parts are missing after I get the spray booth?A: We will send new parts to you or we send drawings for you to have them manufactured locally. For the additional cost incurred, we will pay back to you.
As we know, spray booth is not a simple product, but it is a project. It is difficult for us to ensure everything is 100% perfect. But what we can do is to respond to your requests in time, and get problems solved. In the meantime, we do the best to get things correct when we pick up goods for package and shipment.
Q: How many sets of spray booth can be shipped in 1 container?A: It depends on the spray booth configurations. For this standard spray booth IT-701, 2 sets can be shipped together in 1 big container.
