• Model NO.：fox-P10
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, SGS
• Module Dots：16*16
• Module Size：160*160mm
• Color：16777216
• IP Grade：IP 67
• Mtbf：10000hours
• Life Span：100, 000hours
• Frame Frequency：60Hz
• Refresh Frequency：350Hz
• Warranty：3 Years
• Horizontal Viewing Angle：120°
• Transport Package：Anti-Shaking Wooden Case&Carton&Flight Case
• Specification：CE, RoHS, UL, 3C, SGS
• Trademark：FOXGOLDEN
• Origin：Shenzhen, Guangdong, China.
• HS Code：85312000
• Production Capacity：3000sqm,Month

Basic Info.

Model NO. fox-P10 Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, SGS Module Dots 16*16 Module Size 160*160mm Color 16777216 IP Grade IP 67 Mtbf 10000hours Life Span 100, 000hours Frame Frequency 60Hz Refresh Frequency 350Hz Warranty 3 Years Horizontal Viewing Angle 120° Transport Package Anti-Shaking Wooden Case&Carton&Flight Case Specification CE, RoHS, UL, 3C, SGS Trademark FOXGOLDEN Origin Shenzhen, Guangdong, China. HS Code 85312000 Production Capacity 3000sqm/Month

Product Description

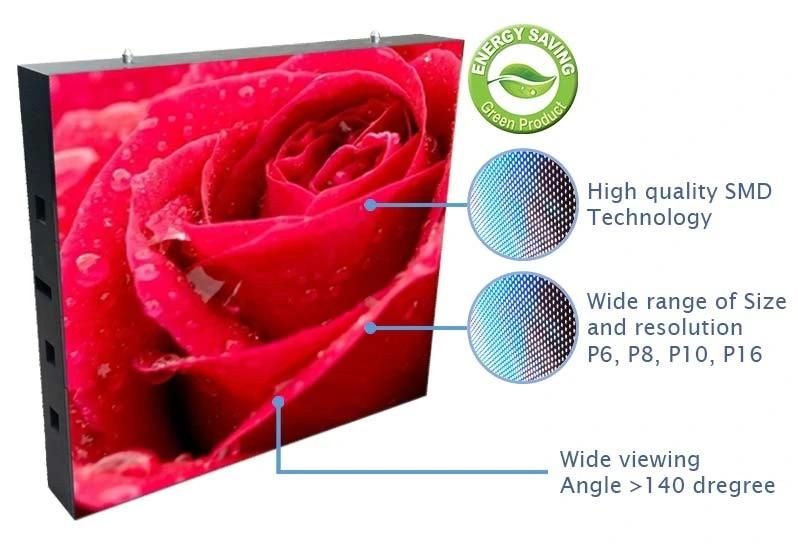

P10 Outdoor Mobile Truck LED Display Board for Advertisement



1. Easy operation
2. Long life span
3. Uniform color
4. Good waterproof
5. Warranty 5years
6. UL, CE&RoHS certificate
For more information contact us

Number	Item	P16
1	Pixel pitch	16mm
2	Size of  modual	256mm X 256 mm  /256mm X128 mm
3	Resolution of module	16 X 16/16 X 8
4	Density of pixel	3906dots/m2
5	Pixel configuration	2R1G1B
6	Red wavelength	625± 2nm
7	Green wavelength	525± 2nm
8	Blue wavelength	470± 2nm
9	Colors	16777216
10	Best viewing distance	14-300m
11	Horizontal viewing angle	120°
12	Maximum power consumption	≤ 1200W/m 2
13	Brightness	≥ 8000cd /m 2
14	Gray scale	16bits per color
15	Color temperature	6500k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/4scanning
18	Frame frequency	60Hz
19	Refresh frequency	≥ 300Hz
20	Working voltage	AC220V/110V± 10%
21	IP grade	IP67(adjustable)
22	Working temperature	-20° C~80° C
23	MTBF	> 10000 hours
24	Life span	> 100, 000 hours
25	Defects rate.	≤ 0.00001(Led display line standard< 0.0001)
26	Computer operation system	Win XP/Vista/  Win 2000/WIN7ect.
27	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC. ect
