P10 Full Color Indoor Stage LED Panel Display
Panhong Chemical Co., Limited.- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：10mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：10,000 dots , m²
- Scanning Mode：1,8 Scan
Base Info
- Model NO.：FOX-P10
- System Operating Platform：WIN XP
- Display Type：LED Video Display

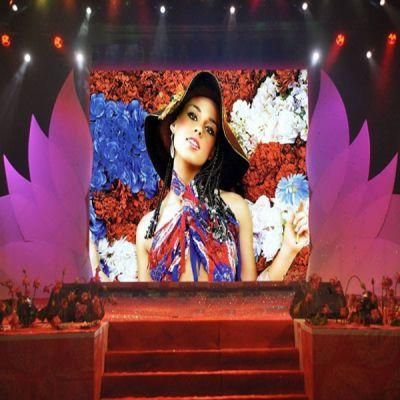

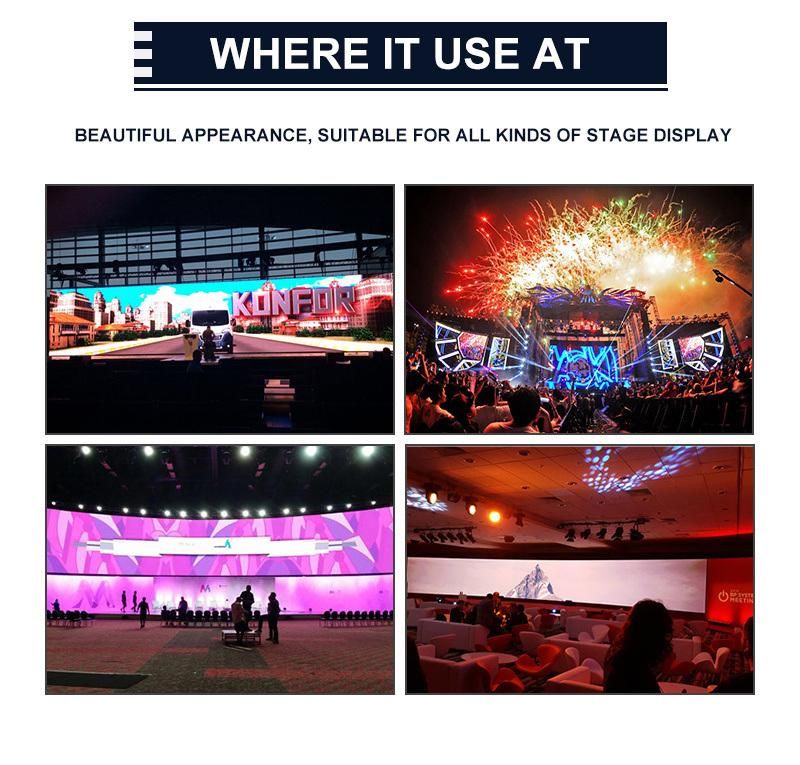

- Application：Stage Performance, Advertising, Shopping Guide, Indoor
- IP Rating：IP54
- Certification：CE, RoHS, CCC
- Warranty：3 Years
- Average Power Consumption：350W,M2
- Product：P10 Full Color LED Display
- Module Size：320*160mm
- Brightness：3500CD,M2
- Module Dots：10000dots,M2
- Usage：Indoor Stage LED Display
- Mtbf：10,000hours
- Life Span Time：100,000hours
- Name：P10 Full Color Indoor Stage LED Panel Display

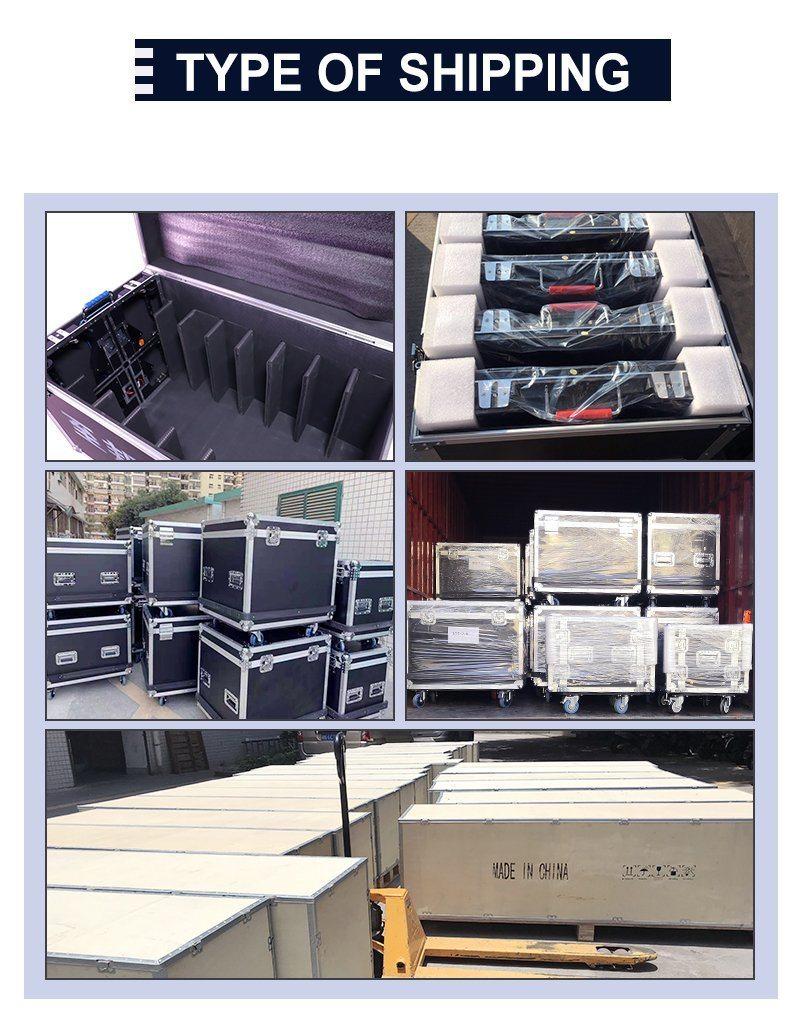

- Transport Package：Anti-Shaking Wooden Case& Flight Case&Carton
- Specification：CE, RoHS, UL, SGS
- Trademark：FOXGOLDEN
- Origin：Shenzhen, Guangdong, China
- HS Code：85312000
- Production Capacity：3000sqm,Month
Description
Technical parameterUnit module Module size 320*160mm Pixel pitch 10mm Pixel density 10000dots/m2 Pixel configuration 1R1G1B Led specification Φ 5ellipse Pixel resolution W: 32dots*H: 16dots Cabinet Dimension 960mm*960mm*150mm Quantities of module 36pcs Power supply 6pcs Material Steel Total weight 40kg Best viewing angle 10-300m Temperature Storage: -35~+85 Working: -35~+85 Thickness 17cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 250-480W Max. Power consumption ≤ 560W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Operating system WIN98/2000/NT/XP Control method Synchronization Main technical parameter Driving device Static scanning Drive type Constant Current driver IC Refresh frequency ≥ 400Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance More than 3500cd/sqm Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--90% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1024*768 Communication distance Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM Software LED media player
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
