P2.9mm Indoor High Refresh (3840 Hz) RGB LED Display
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：2.9mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：112896dots,Sqm
- Scanning Mode：1,32 Scan Method
Base Info
- Model NO.：P2.9
- System Operating Platform：Windows
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP33

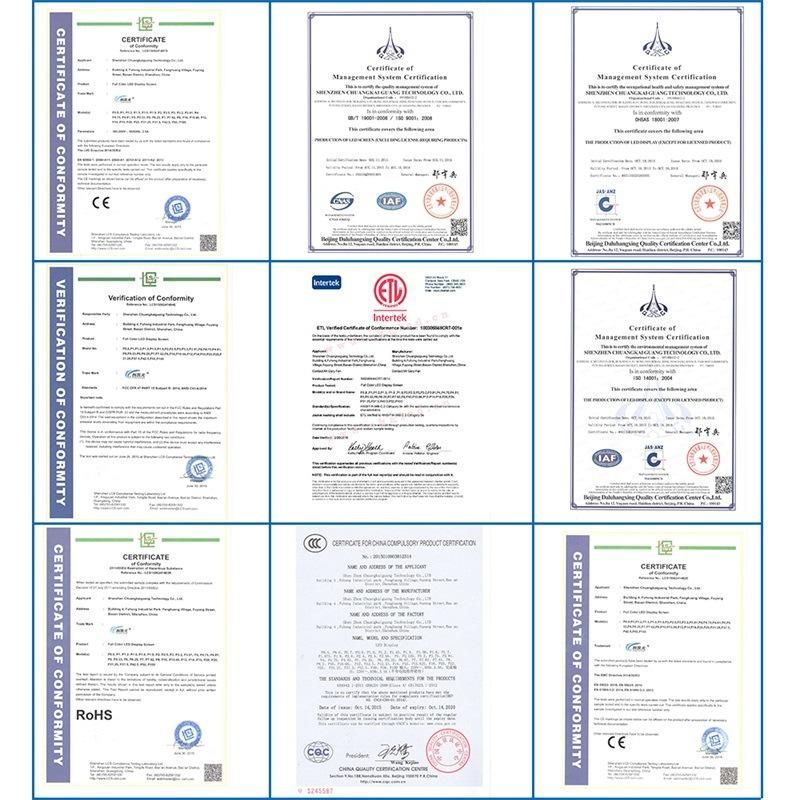

- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：250X250mm
- Module Resolution：84X84dots
- Cabinet Size：500X500mm
- Cabinet Resolution：168X168dots
- Screen Brightness：1500nits
- Refresh Rate：1920Hz-3840Hz
- Compliance：Ce,CCC,FCC,RoHS
- Protection Grade：IP33
- Cabinet Material：Die-Casting Aluminum
- Working Humidity：10~90%Rh
- Working Temperature：-20 Degree~50 Degree
- Input Voltage(V)：AC 110V-220V +,-10%
- LED Type：SMD2020
- LED Configuration：1r1g1b
- Grey Scale：16 Bits
- Transport Package：Flight Case, Wooden Case for Option
- Specification：500x500x88mm
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description

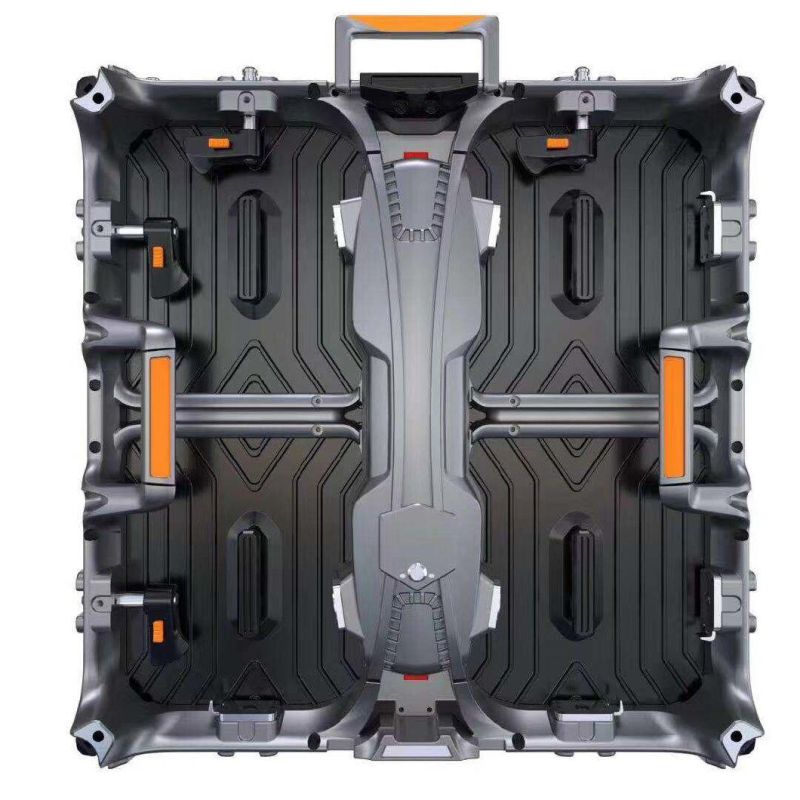

500mmx500mm size :

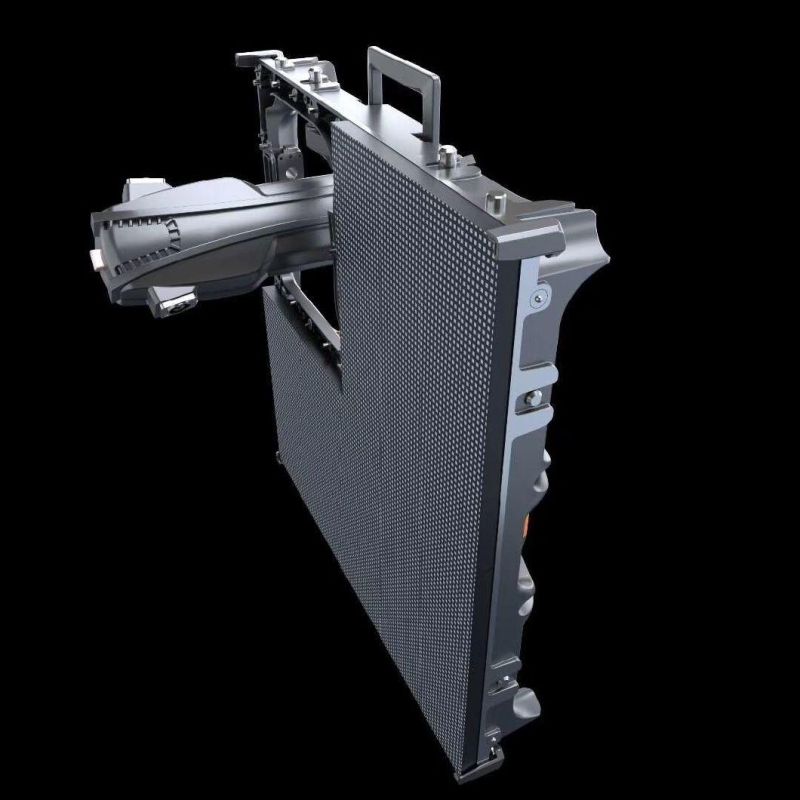

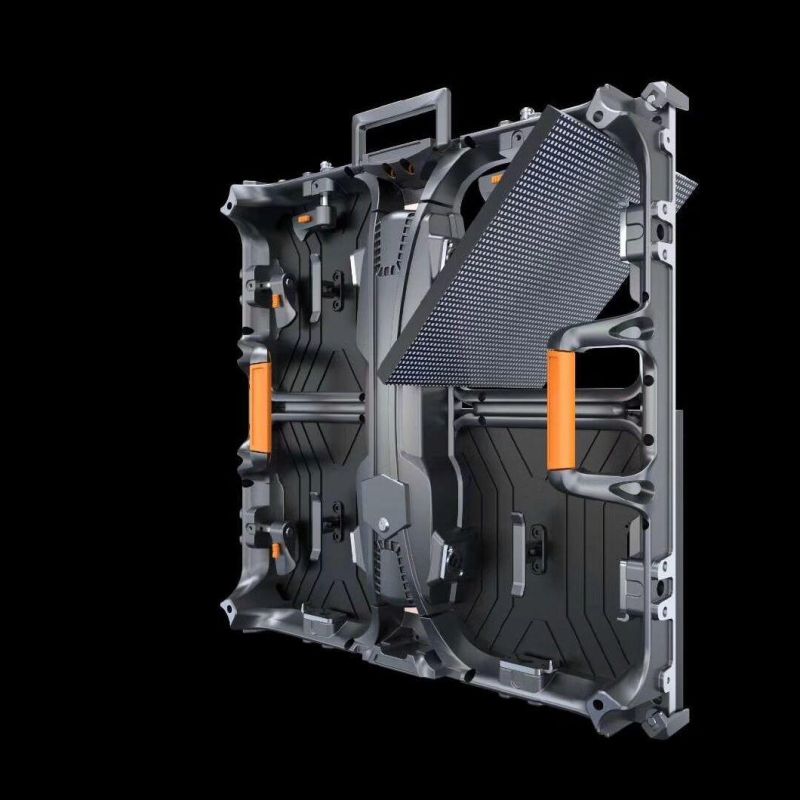

Front/ Rear Maintenance :
Corner design
Cableless design

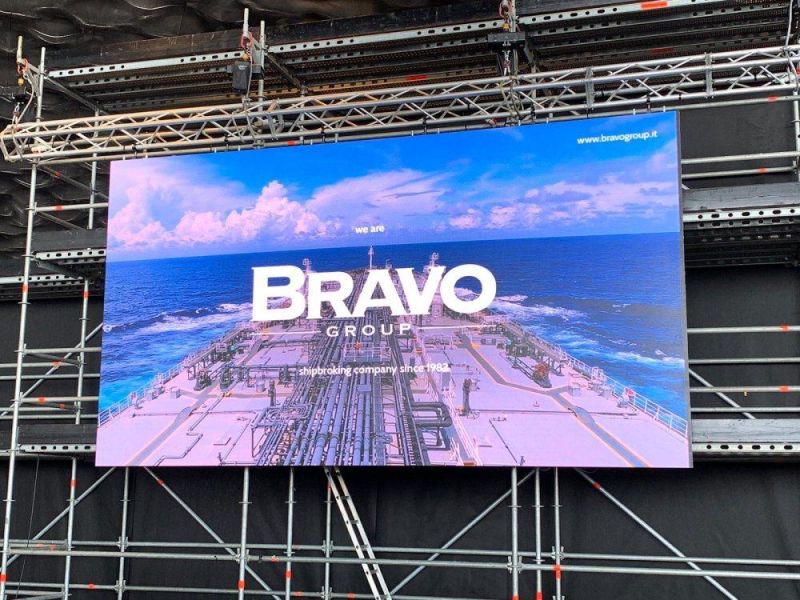

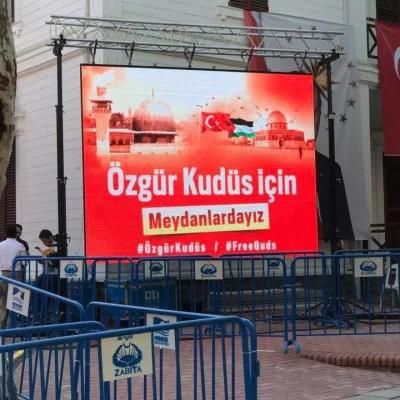

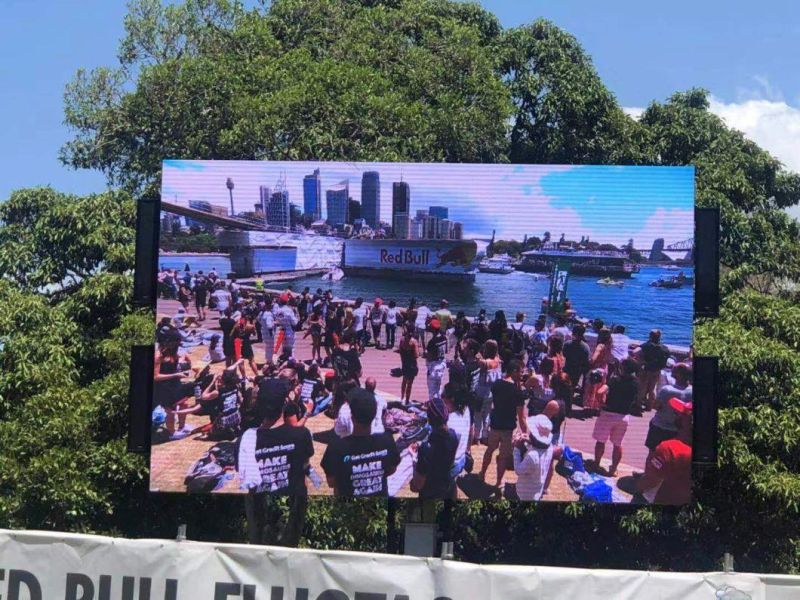

LED Display for outdoor event:
LED DISPLAY FOR LIVE BROADCAST:

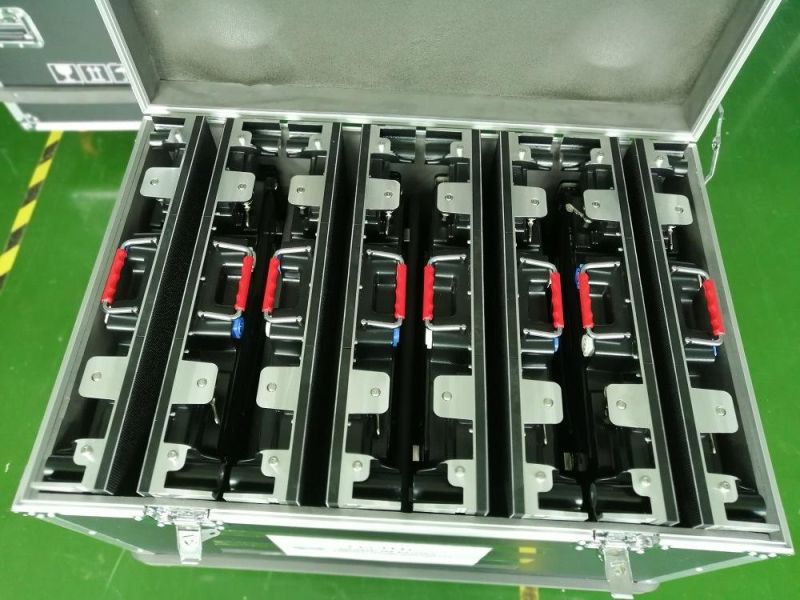

Mobile Flight cases for hire/rental Business :
SERVICE:
Pre-producing:
1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
In Producing:
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
After-service:
1. 2 years warranty
2. 1% spares Will be freely provided
3. 7 days a week, 24 hours a day on-line service for any technical support for any customers
4. Free training for customers in factory
5. Local Partner Installation Service
