P2.9 Outdoor Rental Full Color High Definition LED Display Panel
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：2.9mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：220W , m²
Base Info
- Model NO.：2.9mm
- Pixel Density：112896dots,Sqm
- Scanning Mode：1,21 Scan
- Display Type：LED Video Display

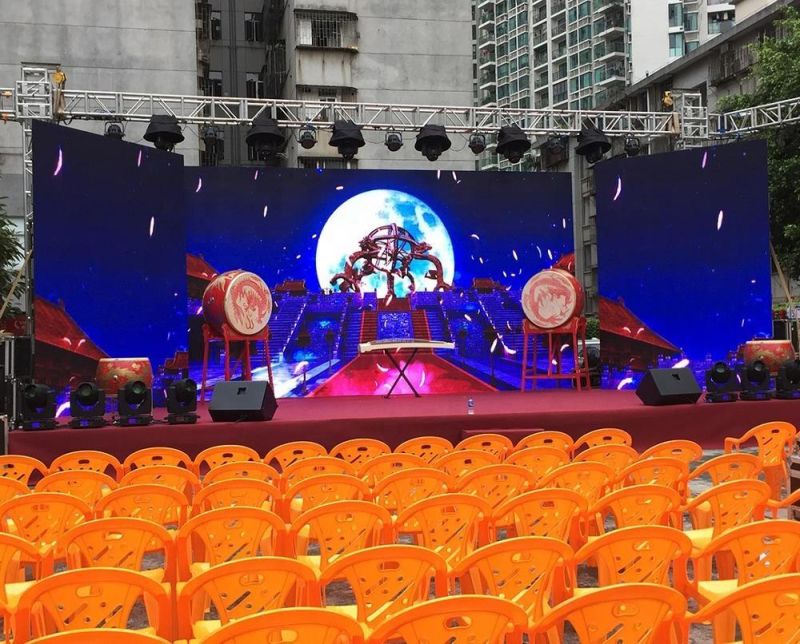

- Application：Stage Performance
- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：250*250mm
- Module Resolution：84*84dots

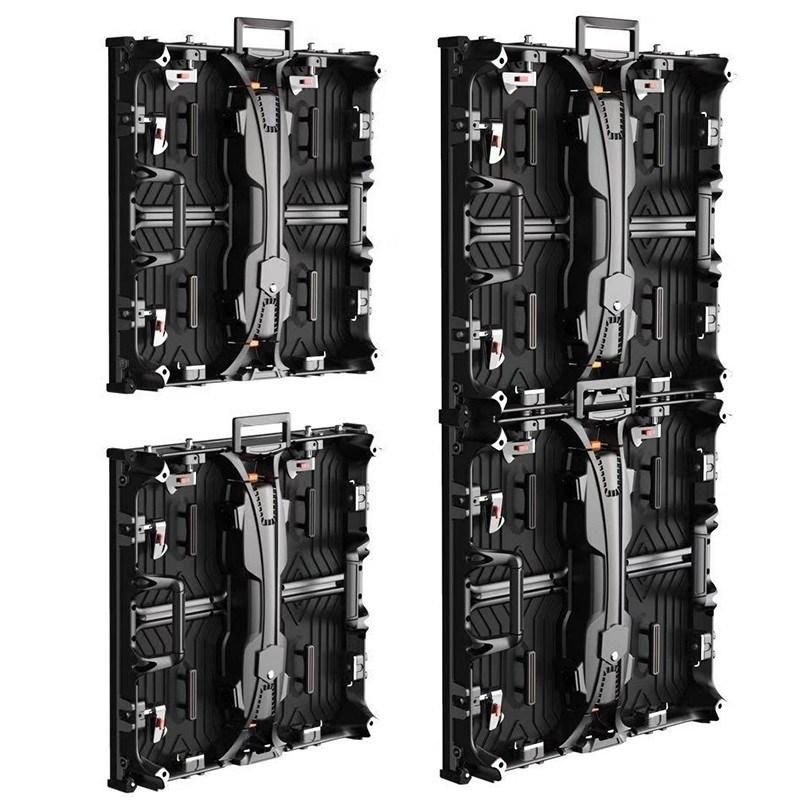

- Cabinet Size：500*500mm,500*1000mm
- Cabinet Resolution：168*168dots,168*336dots

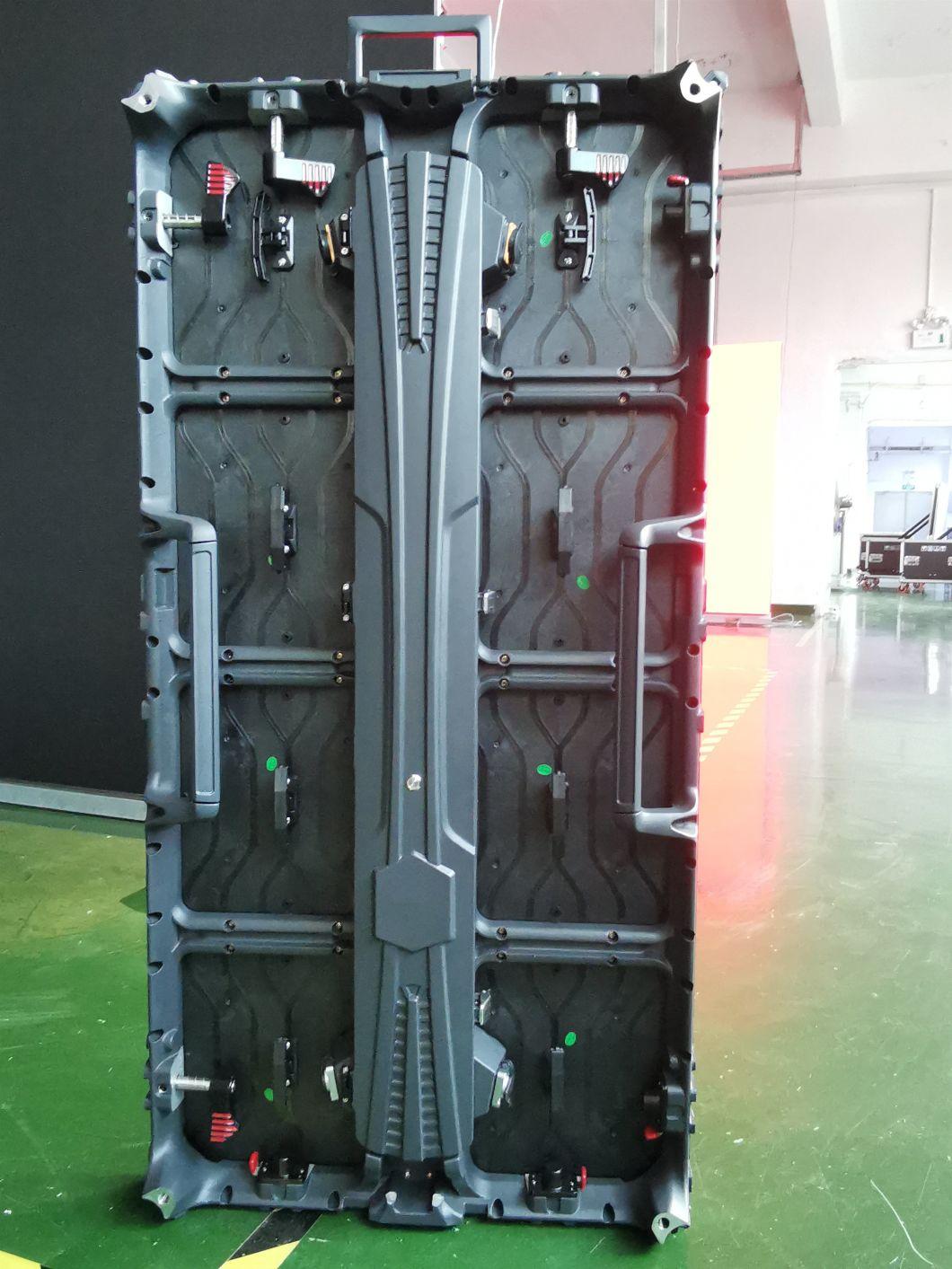

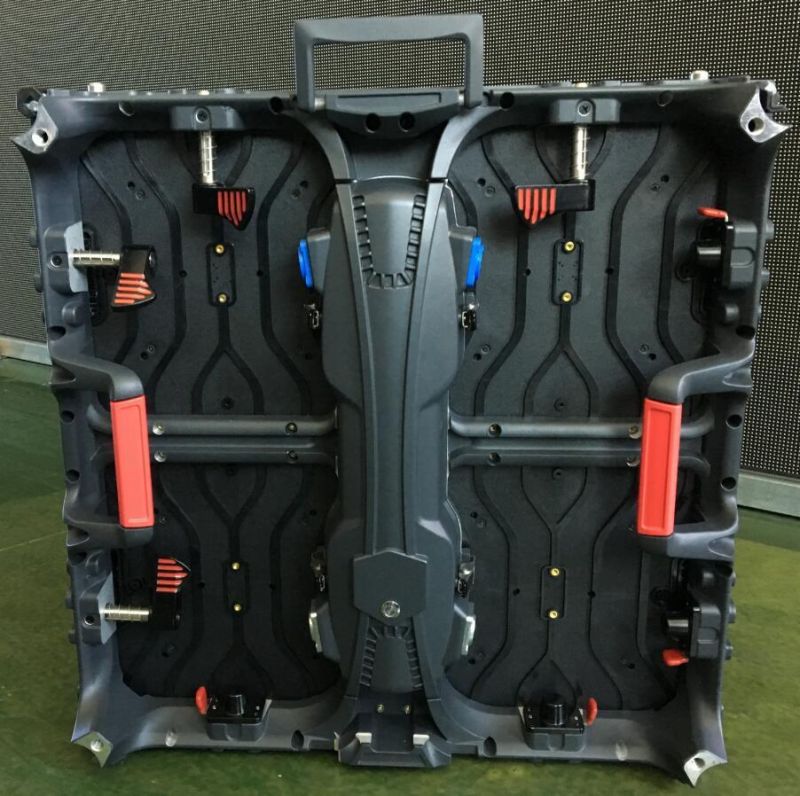

- Cabinet Material：Die-Casting Aluminum
- Drive Method：1,21 Scan
- Protection Grade：Waterproof IP65
- Refresh Rate：3840Hz
- Brightness：5500CD,Sqm
- Screen Resolution：112896dots,Sqm
- Certifications：Ce,FCC,CCC,RoHS
- Grey Scale：14-16bit Adjustable
- Ave.Power Consumption：250W,Sqm
- Max.Power Consumption：700W,Sqm
- Maintenance：Rear,Front Service
- Transport Package：Flight Case
- Specification：4,6,8 pcs cabinet in one case
- Trademark：CKGLED
- Origin：Shenzhen, China
- HS Code：8528591090
- Production Capacity：6000sqm,Per Month
Description
NO.
Parameter
Specifications
1
Model
XII3
2
Pixel Pitch(mm)
3.91
3
LED
SMD1921
4
Screen Resolution
65536dots/sqm
5
Scan Method
1/16
6
Cabinet size(L*H*W)
500x500x88mm
7
Cabinet(Kg)
7.5KG
8
Viewing angle
H:140° V:140°
9
Grey Scale
16bit
10
Refresh rate(HZ)
1920-3840
11
Module size(mm)
250*250
12
Brightness(nits)
≥5500
13
Working Voltage(V)
AC 100~240V
14
AVE. power consumption (W/m2)
230
15
MAX. power consumption(W/m2)
560
16
IP grade
F:IP65 / R:IP54
17
controller
Nova
18
Working humidity
10~95%RH
19
Storage humidity
10~90%RH
20
Working temperature
-30ºC~60ºC
21
Storage temperature
-30ºC~70ºC
22
Compliance
CE / RoHS / FCC
CKGLED FACTORY WORKSHOP:
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

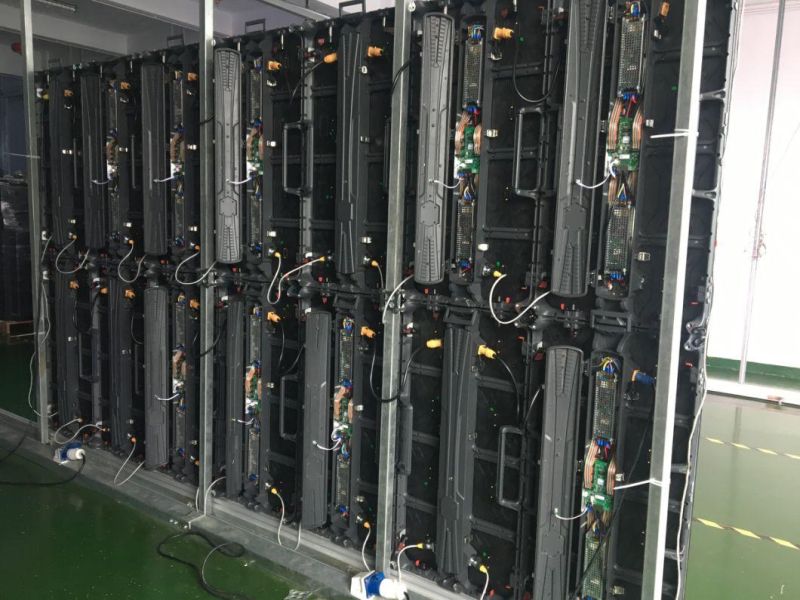

48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.

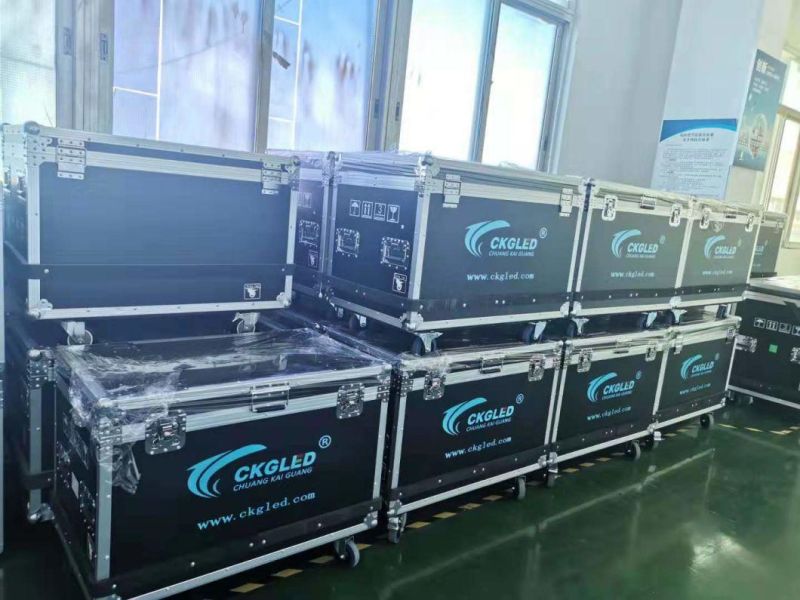

PACKAGE:
Flight Case: 4pcs/6pcs/8pcs per case for option customization
The cabinet and flight case allcan print the customer company's LOGO.

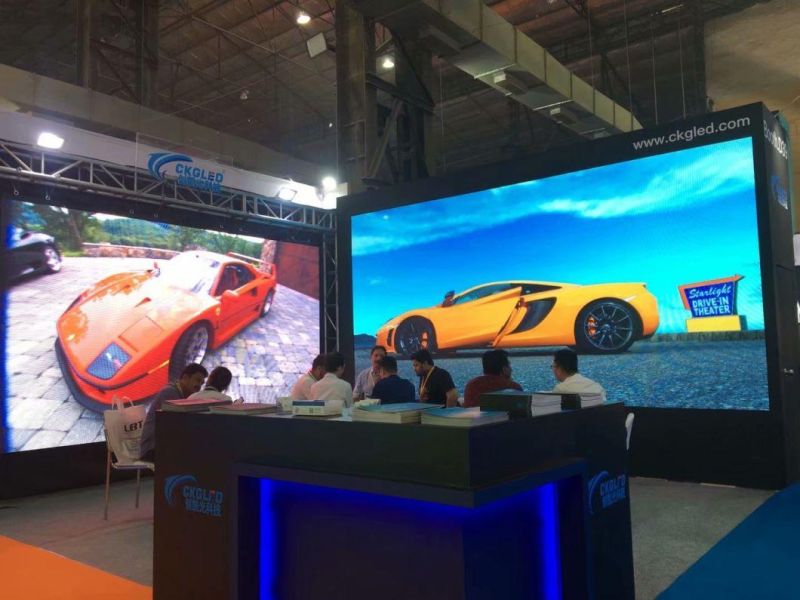

FOREIGN EXHIBITION:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
