Outdoor Rental Small Pixel High Definition LED Advertising Display
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：2.976mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：2.9mm
- Pixel Density：112896dots,Sqm
- Scanning Mode：1,21 Scan
- Display Type：LED Video Display
- Application：Stage Performance

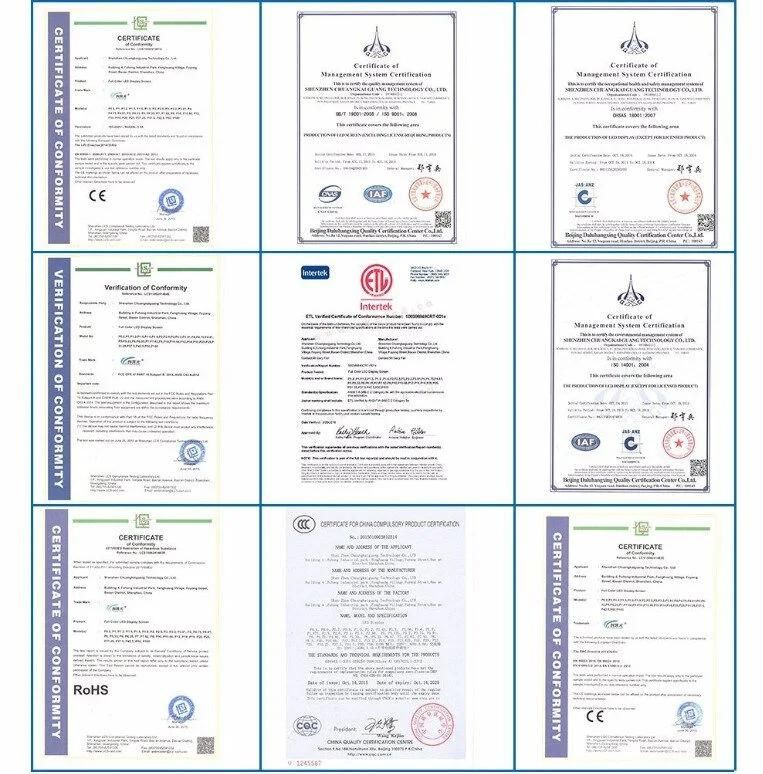

- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：250*250mm
- Module Resolution：84*84dots
- Cabinet Size：500*500mm,500*1000mm
- Cabinet Resolution：168*168dots,168*336dots
- Cabinet Material：Die-Casting Aluminum
- Drive Method：1,21 Scan
- Protection Grade：Waterproof IP65
- Refresh Rate：1920-3840Hz
- Brightness：5000CD,Sqm
- Screen Resolution：112896dots,Sqm
- Certifications：Ce,FCC,CCC,RoHS,ETL
- Grey Scale：14-16bit Adjustable
- Ave.Power Consumption：300W,Sqm
- Max.Power Consumption：900W,Sqm
- Maintenance：Rear Service
- Transport Package：Flight Case
- Specification：4,6,8 pcs cabinet in one case
- Trademark：CKGLED
- Origin：Shenzhen, China
- HS Code：8528591090
- Production Capacity：6000sqm,Per Month
Description
NO.
Parameter
Specifications
1
Model
T2
2
Pixel Pitch(mm)
2.976
3
LED
SMD1415
4
Screen Resolution
112896dots/sqm
5
Scan Method
1/21
6
Cabinet size(L*H*W)
500x500x88mm
7
Cabinet(Kg)
7.5KG
8
Viewing angle
H:140° V:140°
9
Grey Scale
16bit
10
Refresh rate(HZ)
1920-3840
11
Module size(mm)
250*250
12
Brightness(nits)
≥5000
13
Working Voltage(V)
AC 100~240V
14
AVE. power consumption (W/m2)
300
15
MAX. power consumption(W/m2)
900
16
IP grade
F:IP65 / R:IP54
17
controller
Nova
18
Working humidity
10~95%RH
19
Storage humidity
10~90%RH
20
Working temperature
-30ºC~60ºC
21
Storage temperature
-30ºC~70ºC
22
Compliance
CE / RoHS / FCC

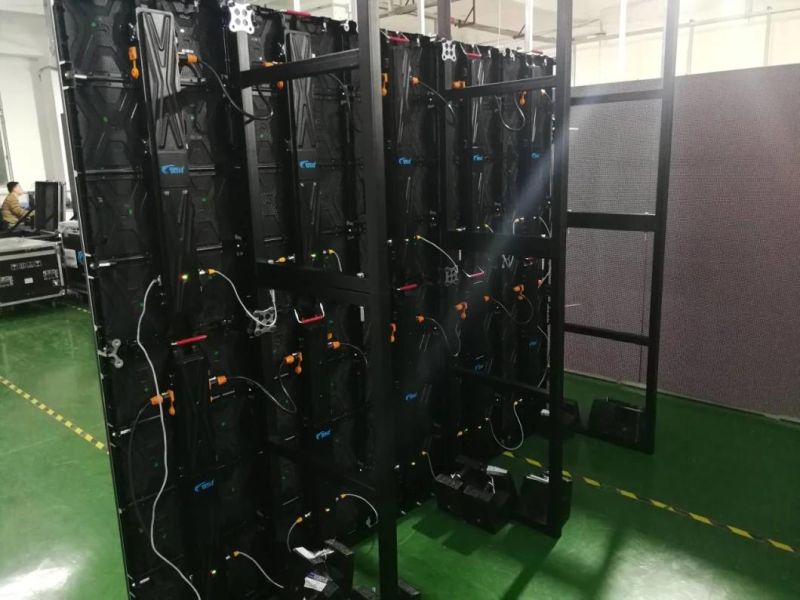

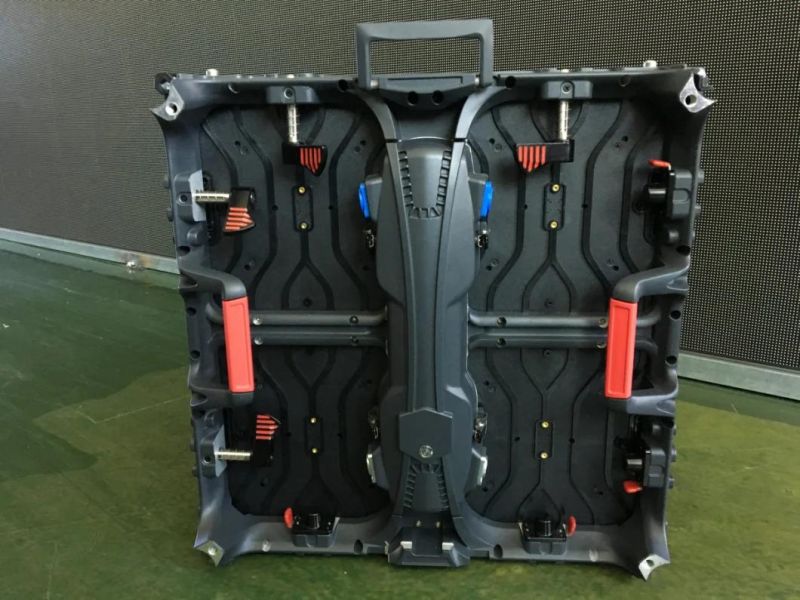

Cabinet Photos:

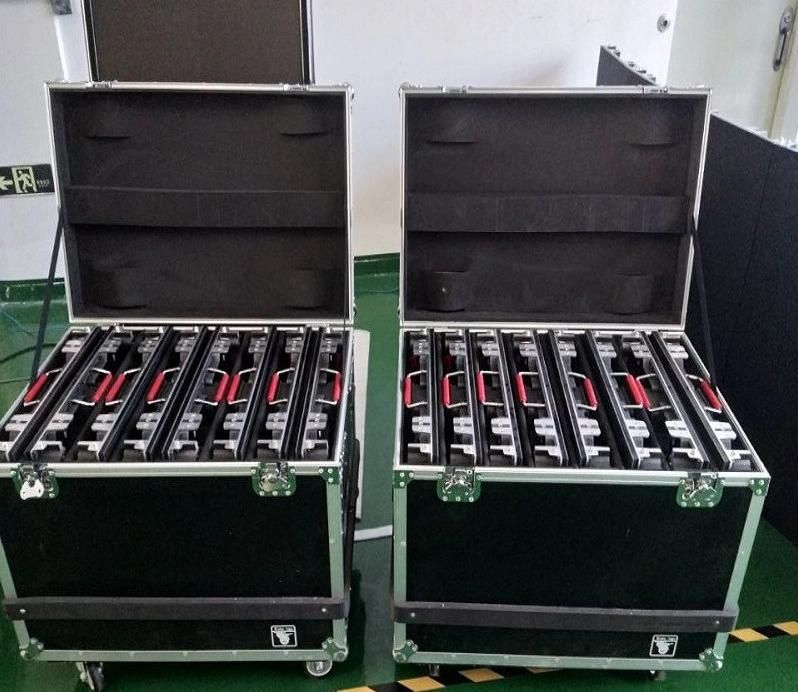

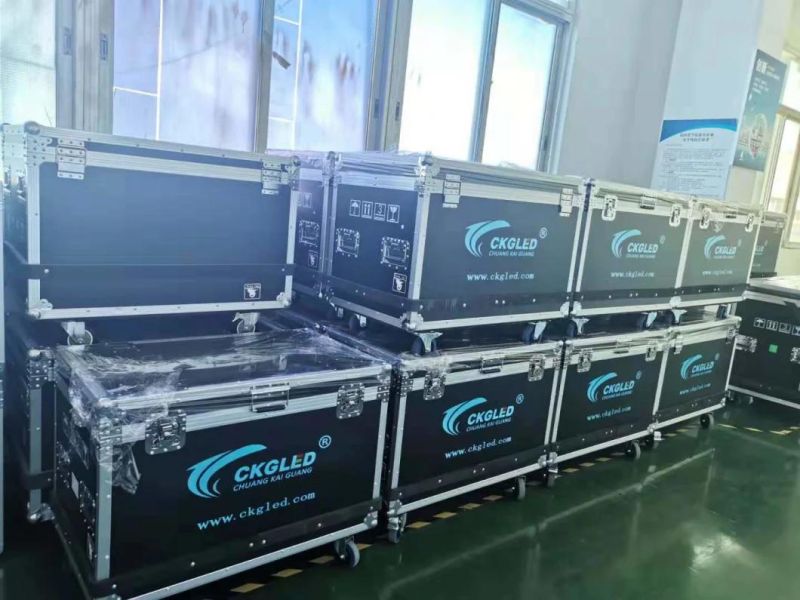

PACKAGE:
Flight Case: 4pcs/6pcs/8pcs per case for option customization
The cabinet and flight case allcan print the customer company's LOGO.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
