Zys Motorcycle Parts Precision Cross Roller Bearing Rb11012, Rb11015
Hengtailong Plastic Net Co. Ltd- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：Small and Medium-Sized (60-115mm)
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial and Thrust Bearing
Base Info
- Model NO.：RB11012, RB11015
- Separated：Separated
- Inner Diameter：30mm
- Outer Diameter：55mm
- Weight：0.12kg
- Dynamic Load：7.35kn
- Static Load：8.36kn
- Bearing Type：Rb Bearing and Rb-Uu Bearing
- Application：Machining Centers, Joint Parts or Rotating Parts O
- Features：High Precision, High Load Carrying Capacity
- Transport Package：Cases and Pallets
- Specification：customized
- Trademark：ZYS
- Origin：Luoyang
Description
Rated load (Kn)Weight d D B/C Rmin da Da C C0 kg RB2008 20 36 8 0.5 23.5 30.5 3.23 3.1 0.04 RB2508 25 41 8 0.5 28.5 35.5 3.63 3.83 0.05 RB3010 30 55 10 0.6 37 47 7.35 8.36 0.12 RB3510 35 60 10 0.6 41 51.5 7.64 9.12 0.13 RB4010 40 65 10 0.6 47.5 57.5 8.33 10.6 0.16 RB4510 45 70 10 0.6 51 61.5 8.62 11.3 0.17 RB5013 50 80 13 0.6 57.4 72 16.7 20.9 0.27 RB6013 60 90 13 0.6 68 82 18 24.3 0.3 RB7013 70 100 13 0.6 78 92 19.4 27.7 0.35 RB8016 80 120 16 0.6 91 111 30.1 42.1 0.7 RB9016 90 130 16 1 98 118 31.4 45.3 0.75 RB10016 100 140 16 1 109 129 31.7 48.6 0.83 RB10020 100 150 20 1 113 133 33.1 50.9 1.45 RB11012 110 135 12 0.6 117 127 12.5 24.1 0.4 RB11015 110 145 15 0.6 122 136 23.7 41.5 0.75 RB11020 110 160 20 1 120 143 34 54 1.56 RB12016 120 150 16 0.6 127 141 24.2 43.2 0.72 RB12025 120 180 25 1.5 133 164 66.9 100 2.62 RB13015 130 160 15 0.6 137 152 25 46.7 0.72 RB13025 130 190 25 1.5 143 174 69.5 107 2.82 RB14016 140 175 16 1 147 162 25.9 50.1 1 RB14025 140 200 25 1.5 154 185 74.8 121 2.96 RB15013 150 180 13 0.6 157 172 27 53.5 0.68

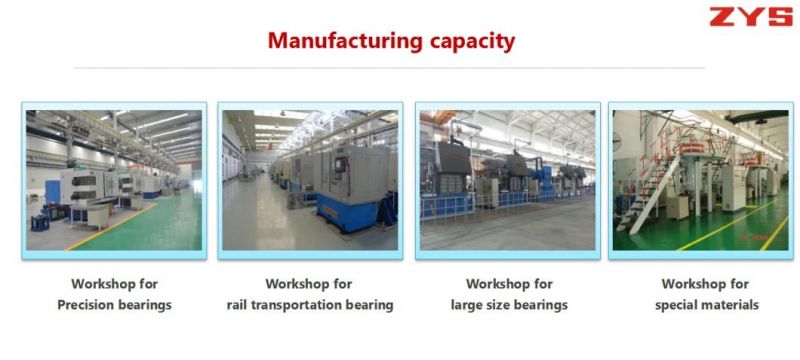

ZYS MANUFACTURING CAPACITY
ZYS Quality assurance

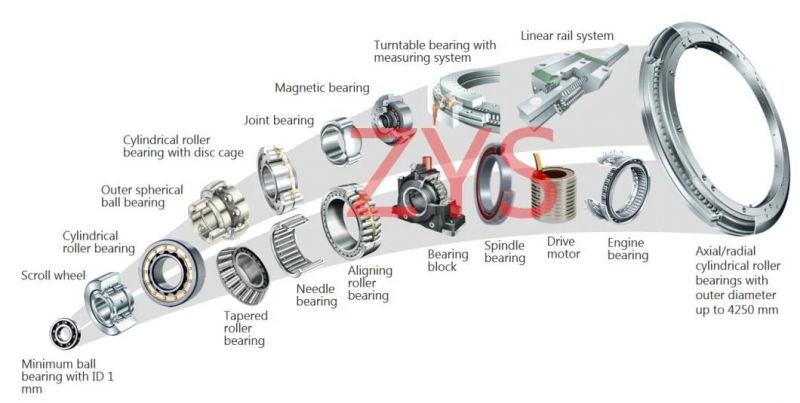

ZYS bearing products
ZYS Packing :
FAQ:
Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
| RB15025 | 150 | 210 | 25 | 1.5 | 164 | 194 | 76.8 | 128 | 3.16 |
| RB15030 | 150 | 230 | 30 | 1.5 | 173 | 211 | 100 | 156 | 5.3 |
| RB16025 | 160 | 220 | 25 | 1.5 | 173 | 204 | 81.7 | 135 | 3.14 |
| RB17020 | 170 | 220 | 20 | 1.5 | 184 | 198 | 29 | 62.1 | 2.21 |
| RB18025 | 180 | 240 | 25 | 1.5 | 195 | 225 | 84 | 143 | 3.44 |
| RB19025 | 190 | 240 | 25 | 1 | 202 | 222 | 41.7 | 82.9 | 2.99 |
| RB20025 | 200 | 260 | 25 | 2 | 215 | 245 | 84.2 | 157 | 4 |
| RB20030 | 200 | 280 | 30 | 2 | 221 | 258 | 114 | 200 | 6.7 |
| RB20035 | 200 | 295 | 35 | 2 | 225 | 270 | 151 | 252 | 9.6 |
| RB22025 | 220 | 280 | 25 | 2 | 235 | 265 | 92.3 | 171 | 4.1 |
| RB24025 | 240 | 300 | 25 | 2.5 | 256 | 281 | 68.3 | 145 | 4.5 |
| RB25025 | 250 | 310 | 25 | 2.5 | 265 | 290 | 69.3 | 150 | 5 |
| RB25030 | 250 | 330 | 30 | 2.5 | 269 | 306 | 126 | 244 | 8.1 |
| RB25040 | 250 | 355 | 40 | 2.5 | 275 | 326 | 195 | 348 | 14.8 |
| RB30025 | 300 | 360 | 25 | 2.5 | 315 | 340 | 76.3 | 178 | 5.9 |
| RB30035 | 300 | 395 | 35 | 2.5 | 322 | 368 | 183 | 367 | 13.4 |
| RB30040 | 300 | 405 | 40 | 2.5 | 326 | 377 | 212 | 409 | 17.2 |
| RB35020 | 350 | 400 | 20 | 2.5 | 363 | 383 | 54.1 | 143 | 3.9 |
| RB40035 | 400 | 480 | 35 | 2.5 | 422 | 459 | 156 | 370 | 14.5 |
| RB40040 | 400 | 510 | 40 | 2.5 | 428 | 479 | 241 | 531 | 23.5 |
| RB45025 | 450 | 500 | 25 | 1 | 464 | 484 | 61.7 | 182 | 6.6 |
| RB50025 | 500 | 550 | 25 | 1 | 514 | 534 | 65.5 | 201 | 7.3 |
| RB50040 | 500 | 600 | 40 | 2.5 | 526 | 572 | 239 | 607 | 26 |
| RB50050 | 500 | 625 | 50 | 2.5 | 536 | 587 | 267 | 653 | 41.7 |
| RB60040 | 600 | 700 | 40 | 3 | 627 | 673 | 264 | 721 | 29 |
| RB70045 | 700 | 815 | 45 | 3 | 731 | 777 | 281 | 836 | 46 |
| RB80070 | 800 | 950 | 70 | 4 | 836 | 900 | 468 | 1330 | 105 |
| RB90070 | 900 | 1050 | 70 | 4 | 937 | 1001 | 494 | 1490 | 120 |
| RB1000110 | 1000 | 1250 | 110 | 5 | 1057 | 1171 | 1220 | 3220 | 360 |
| RB1250110 | 1250 | 1500 | 110 | 5 | 1308 | 1423 | 1350 | 3970 | 440 |
ZYS MANUFACTURING CAPACITY
ZYS Quality assurance
ZYS bearing products
ZYS Packing :
FAQ:
Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
