• Model NO.：8mm
• Pixel Density：15625dots,Sqm
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：256X128mm
• Module Resolution：32X16mm
• Cabinet Size：1024X768mm
• Cabinet Resolution：128X96dots
• Screen Brightness：6000nits
• Protection Grade：IP65
• Compliance：Ce
• Service：Rear Maintenance, Front Maintenance
• Controller：Nova, Linsn
• Transport Package：Wooden Case
• Specification：1024x768mm Can be Customised
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters1Pixel Pitch(mm)82LED Configuration1R1G1B3LED TypeSMD35354Screen Resolution15625dots/sqm5Module size(mm)256x1286Module resolution(dots)32x167Scan method1/4 constant current drive8Cabinet size(mm)1024x7689Cabinet resolution(dots)128x9610Cabinet materialIron / Aluminum11Brightness(cd/sqm)≥600012Viewing angleH:140°/ V:140°13Grey Scale14bit14Refresh rate(Hz)≥192015Ave. power consumption (W/sqm)30016Max. power consumption(W/sqm)90017IP gradeF:IP65 / R:IP5418controllerNovastar / Linsn19MaintenanceRear service20Color(T)>28122Input Voltage(V)AC 110V-220V +/-10%21Frame frequency(Hz)6022Working humidity10~95%RH23Working temperature-30ºC~60ºC24CertificatesRoHS / CE / CCC


Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

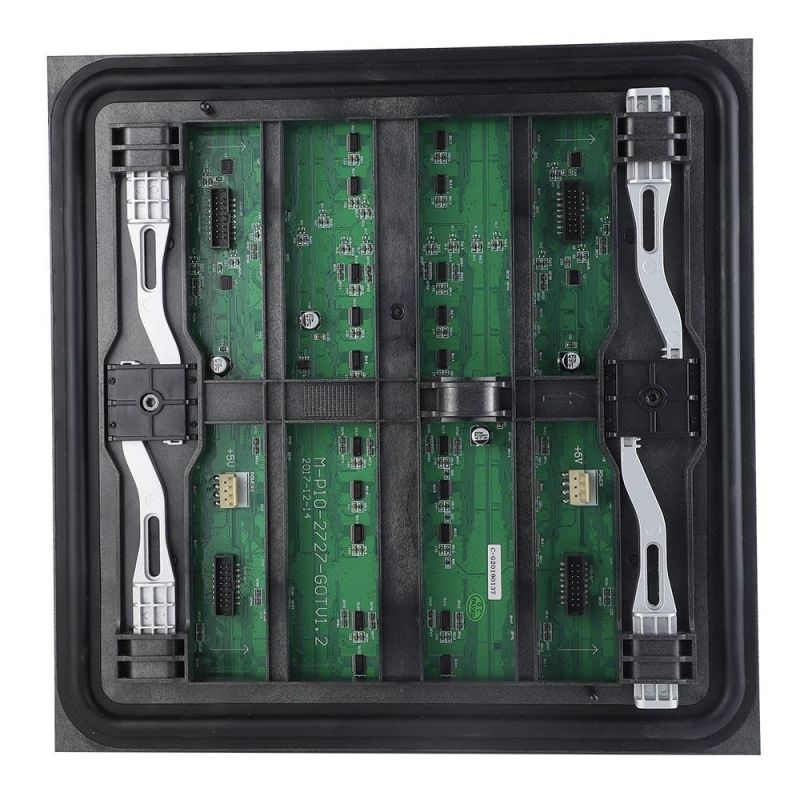

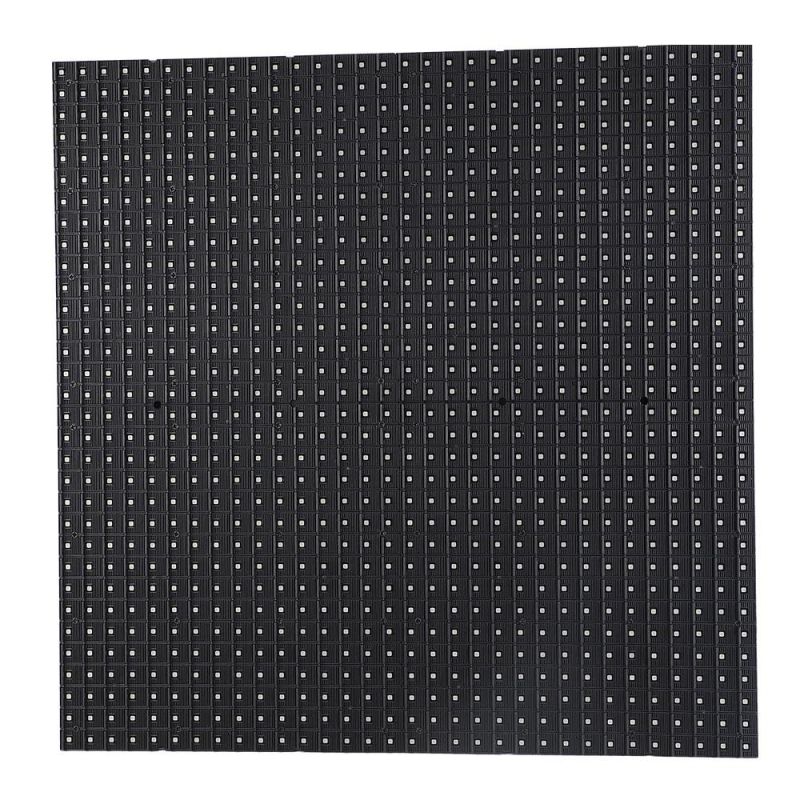

LED module :

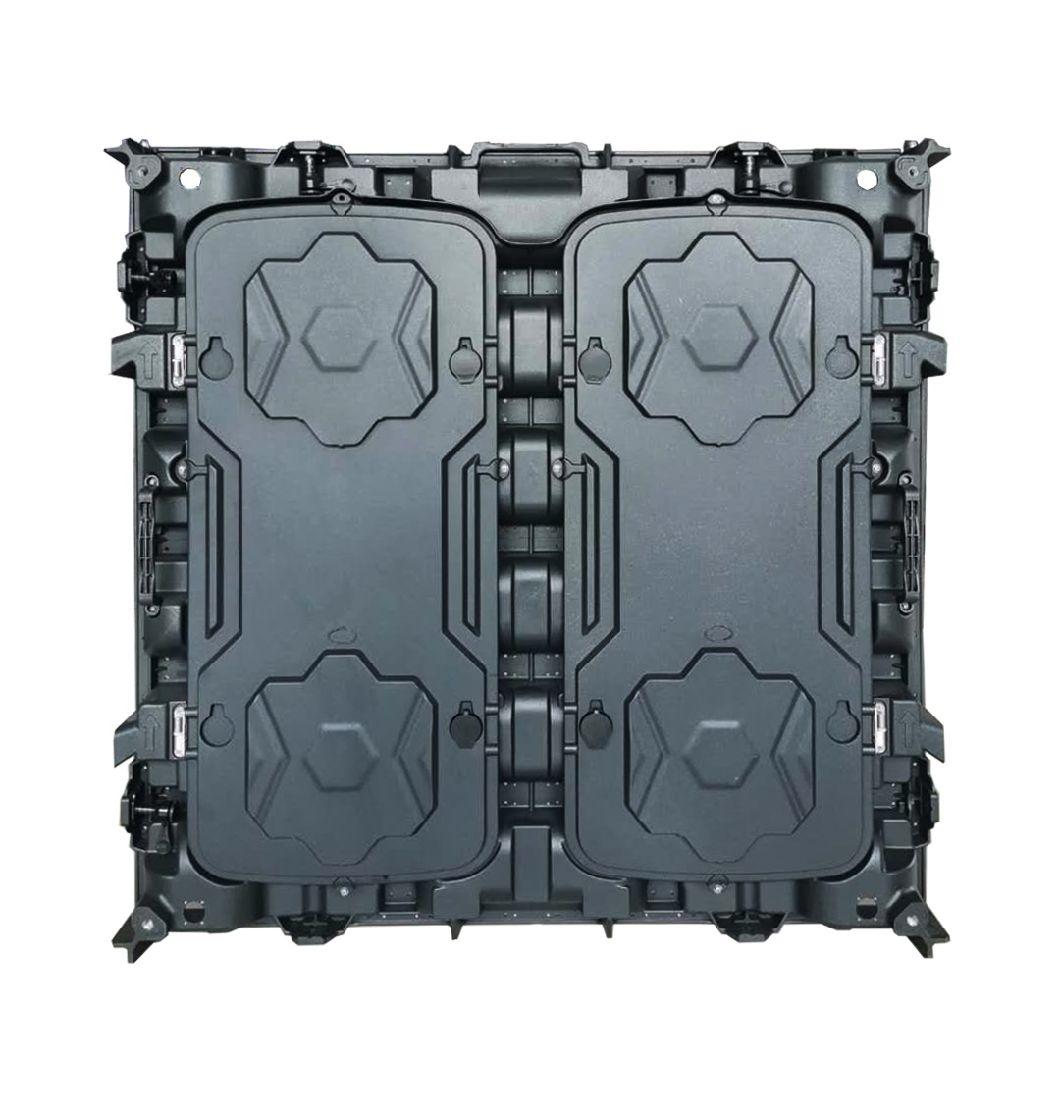

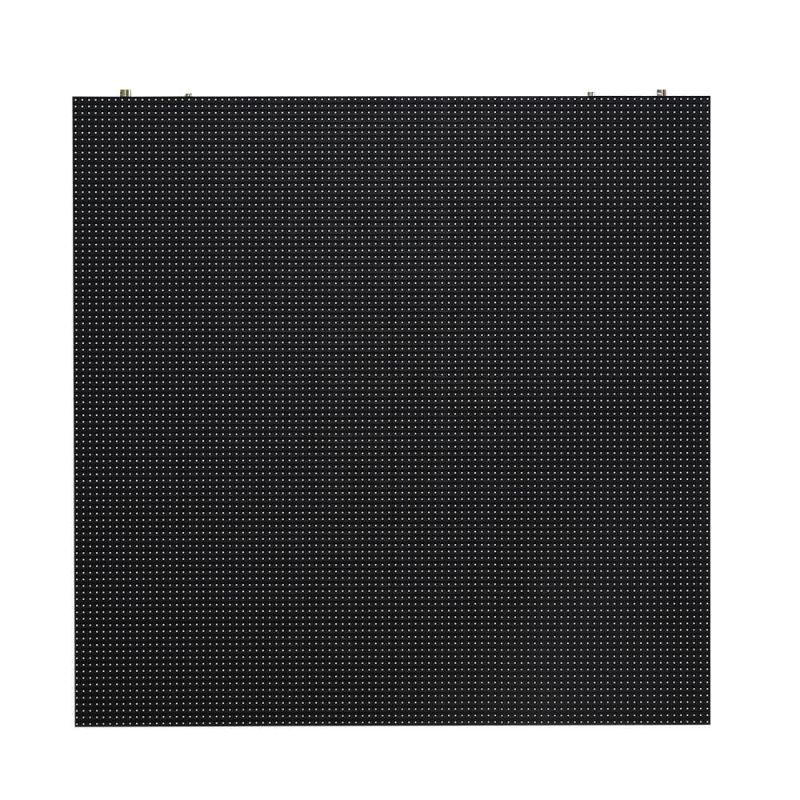

LED cabinet :





Different installation  :

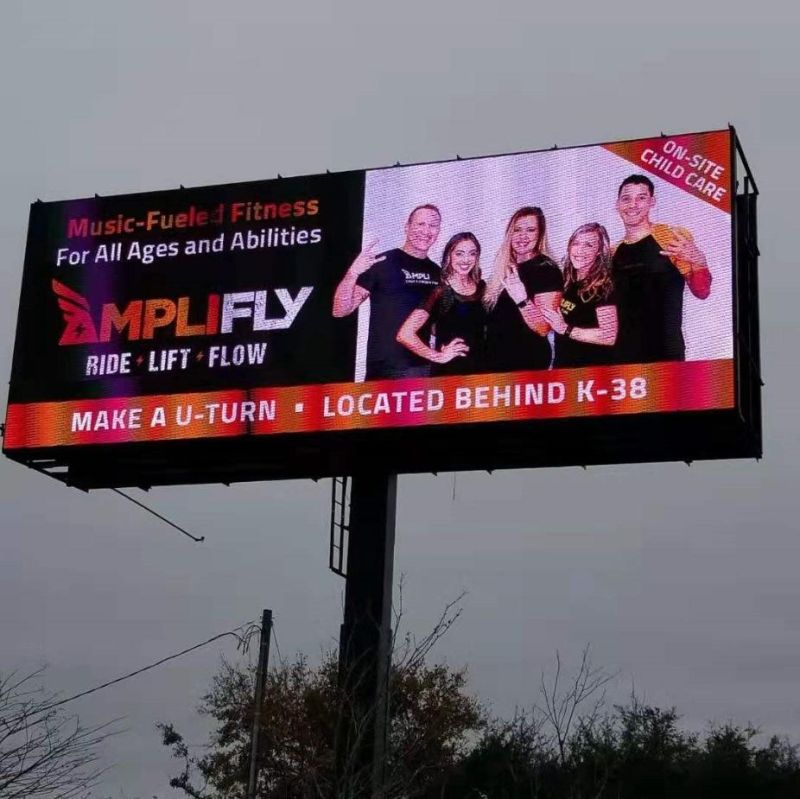

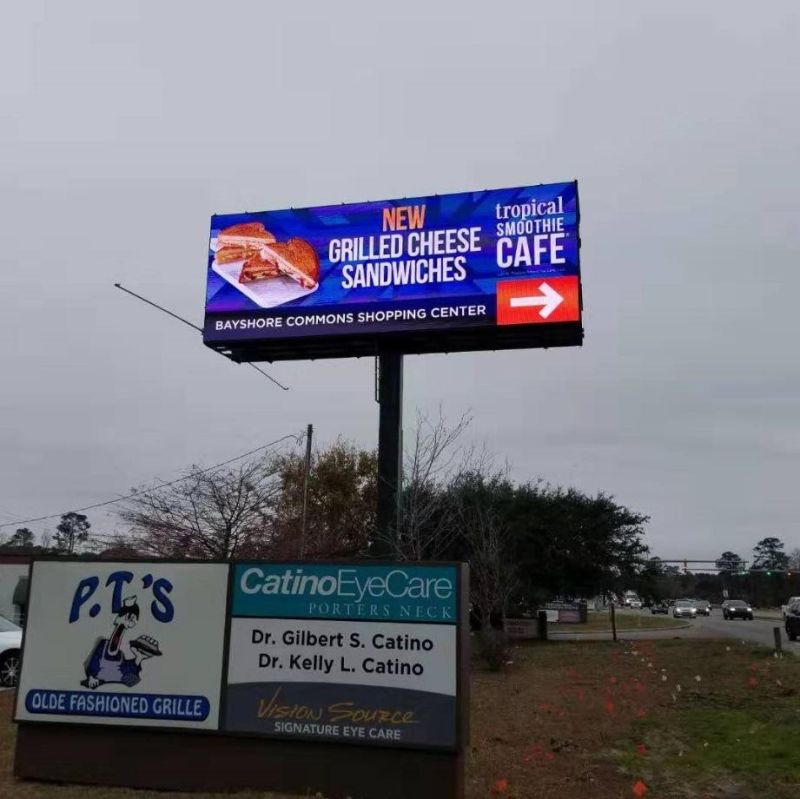

Unipole standing :

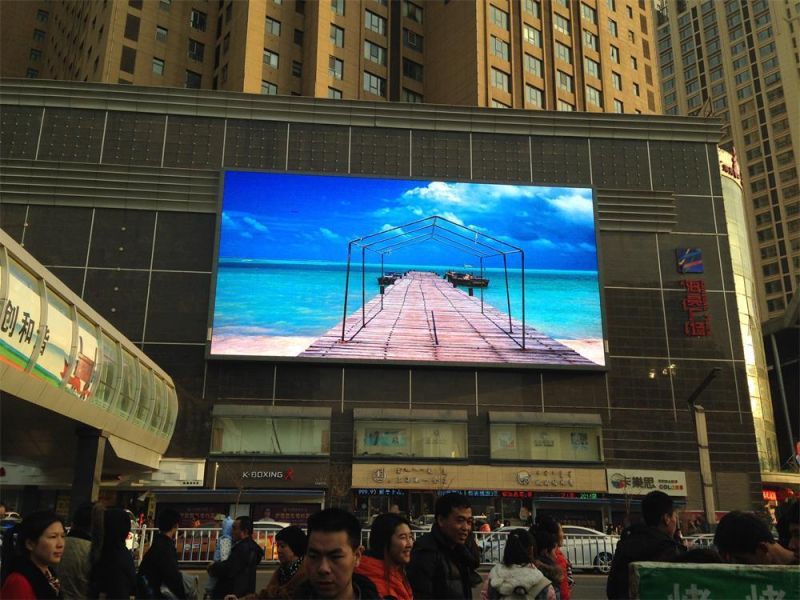

Wall mounted on the building:

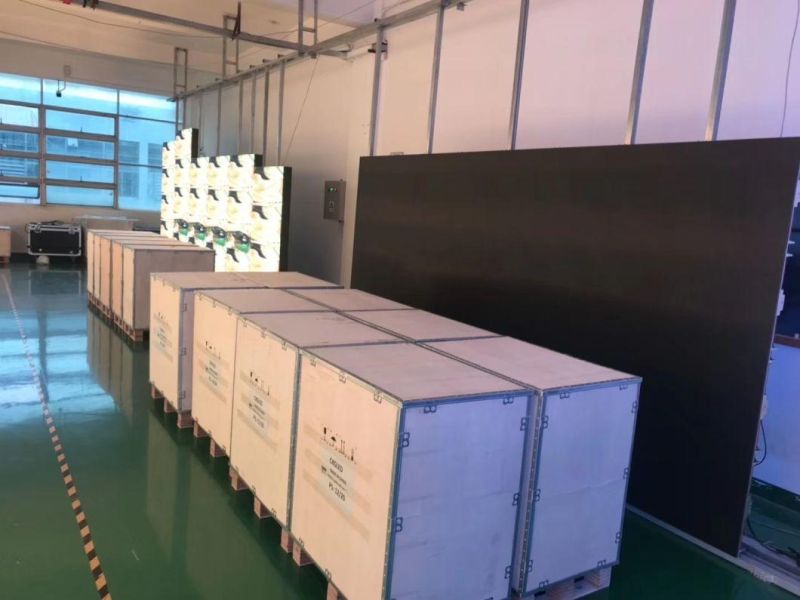

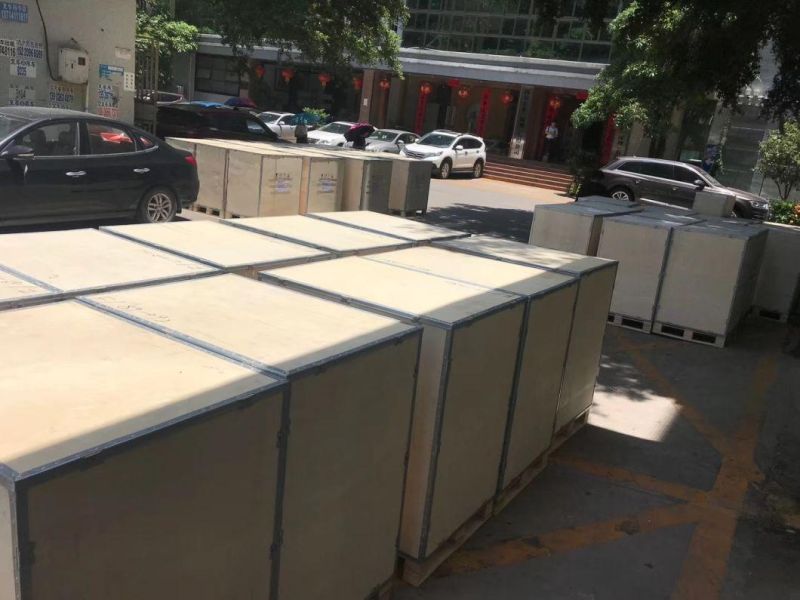

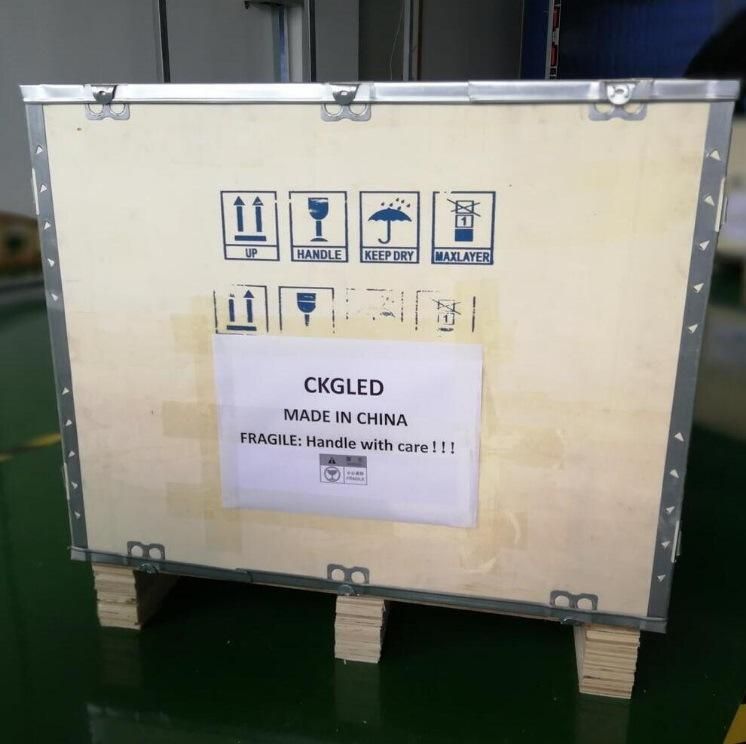

Package and shipment :





Certificates:
