• Model NO.：4mm
• Pixel Density：62500dots,Sqm
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：256X128mm
• Module Resolution：64X32mm
• Cabinet Size：512X512
• Cabinet Resolution：128X128dots
• Screen Brightness：7000nits
• Protection Grade：IP65
• Compliance：Ce
• Service：Rear Service
• Controller：Nova, Linsn
• Transport Package：Wooden Case
• Specification：512x512mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters1Pixel Pitch(mm)42LED Configuration1R1G1B3LED TypeSMD25254Screen Resolution62500dots/sqm5Module size(mm)256x1286Module resolution(dots)64x327Scan method1/16 constant current drive8Cabinet size(mm)512x5129Cabinet resolution(dots)128x12810Cabinet materialIron / Aluminum11Brightness(cd/sqm)≥450012Viewing angleH:140°/ V:140°13Grey Scale14bit14Refresh rate(Hz)≥192015Ave. power consumption (W/sqm)20016Max. power consumption(W/sqm)60017IP gradeF:IP65 / R:IP5418controllerNovastar / Linsn19MaintenanceRear service20Color(T)>28121Input Voltage(V)AC 110V-220V +/-10%22Frame frequency(Hz)6023Working humidity10~95%RH24Working temperature-30ºC~60ºC25CertificatesRoHS / CE / CCC


Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

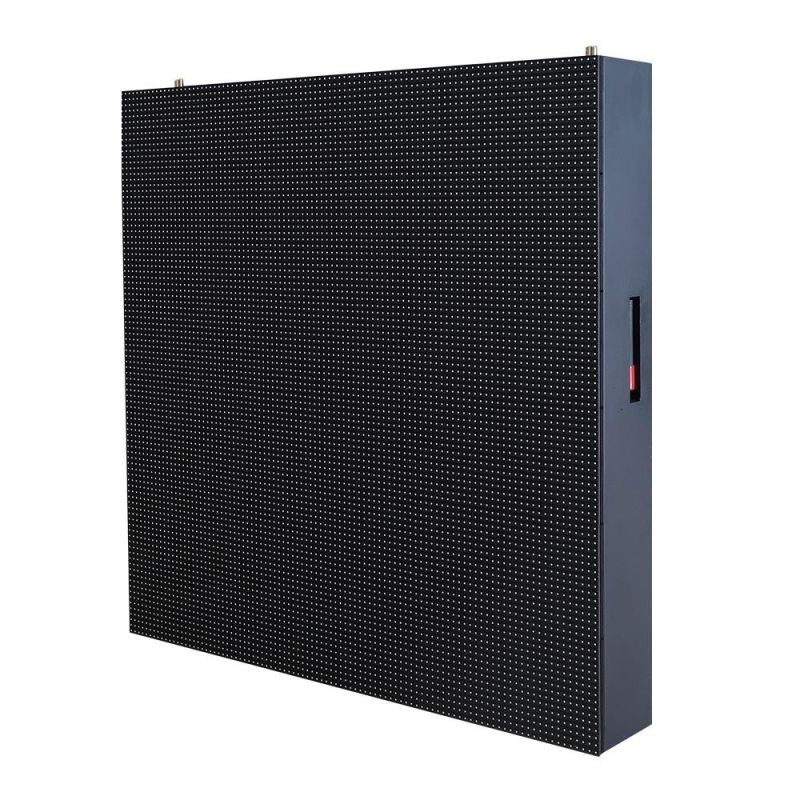

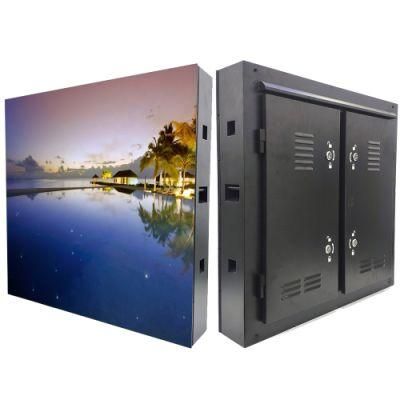

LED Display Panel photos:

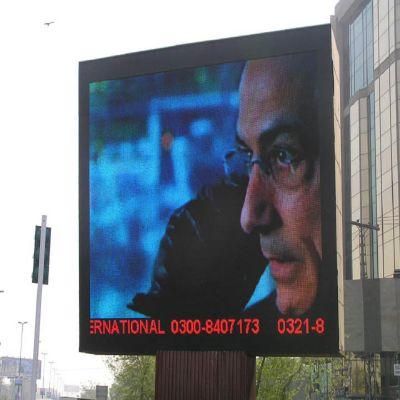

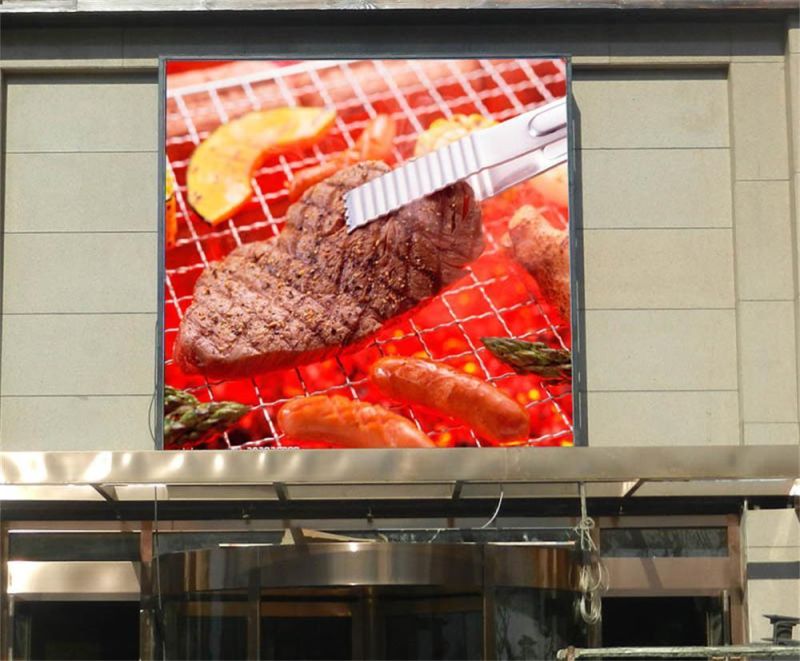

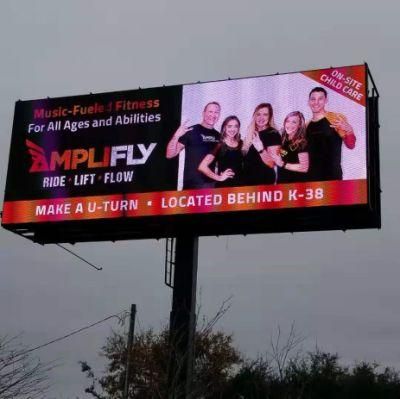

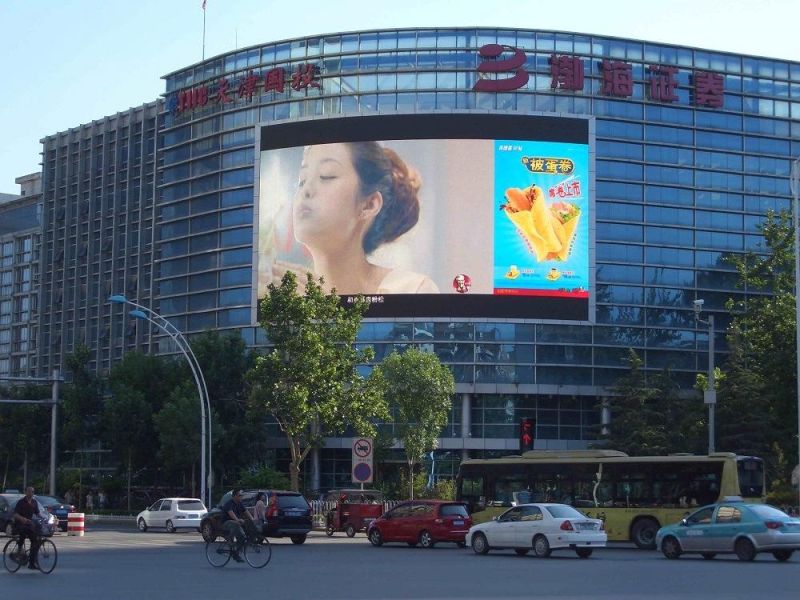

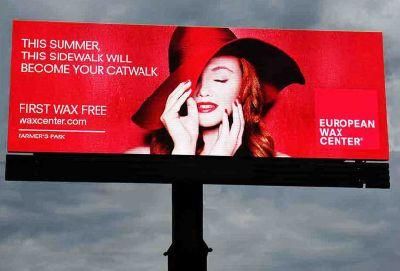

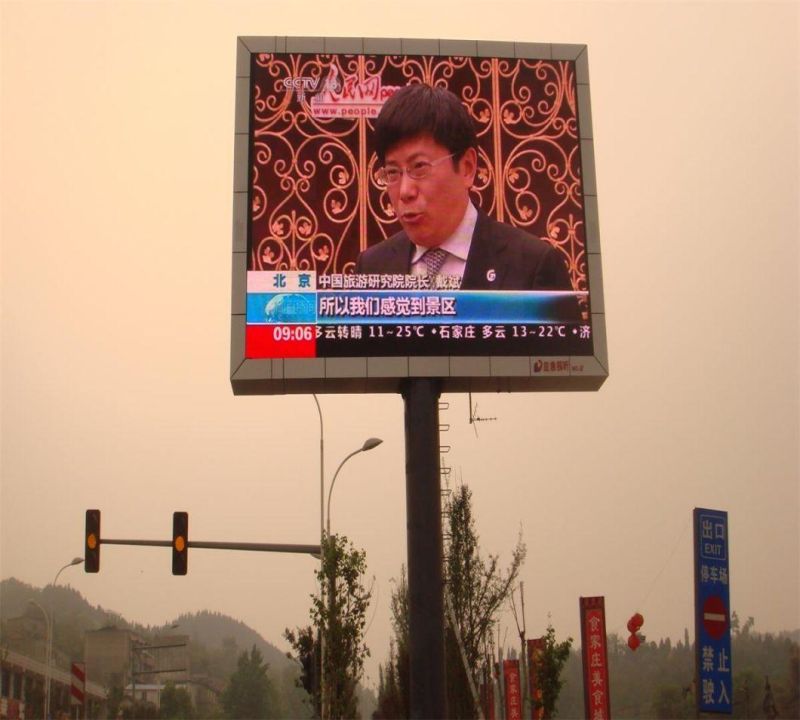

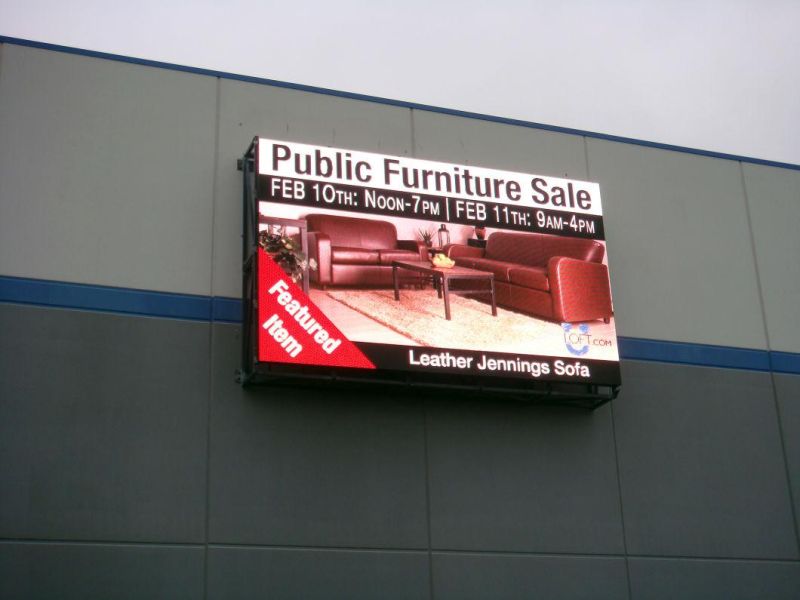

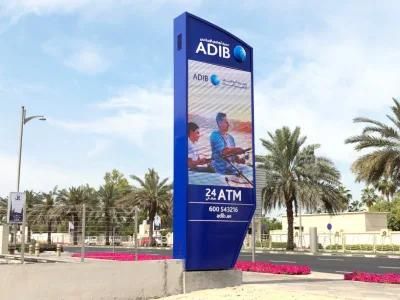

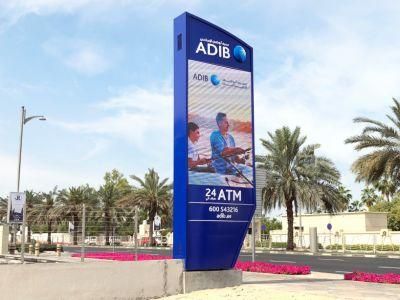

Used for different installation :

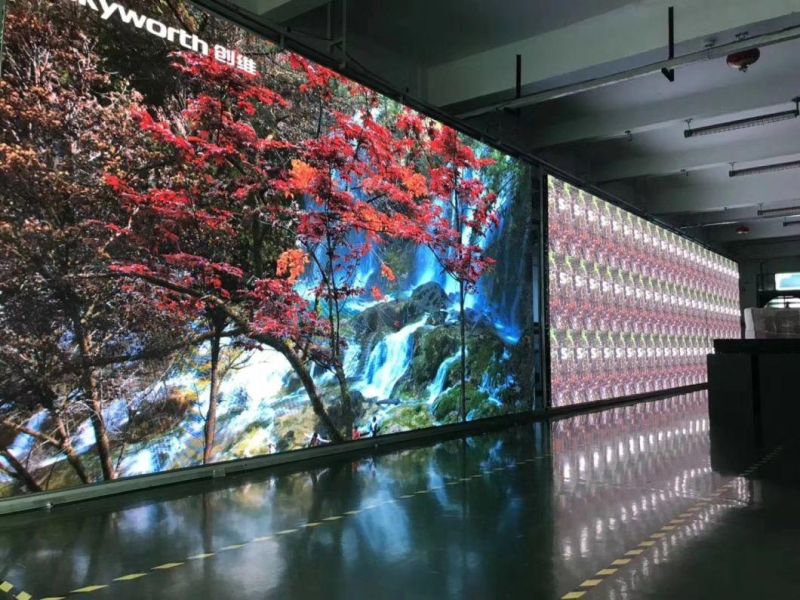

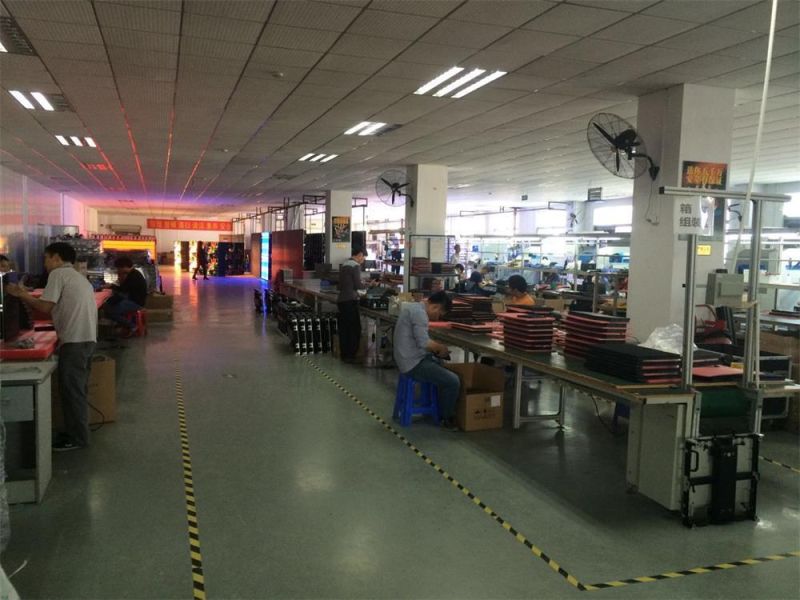

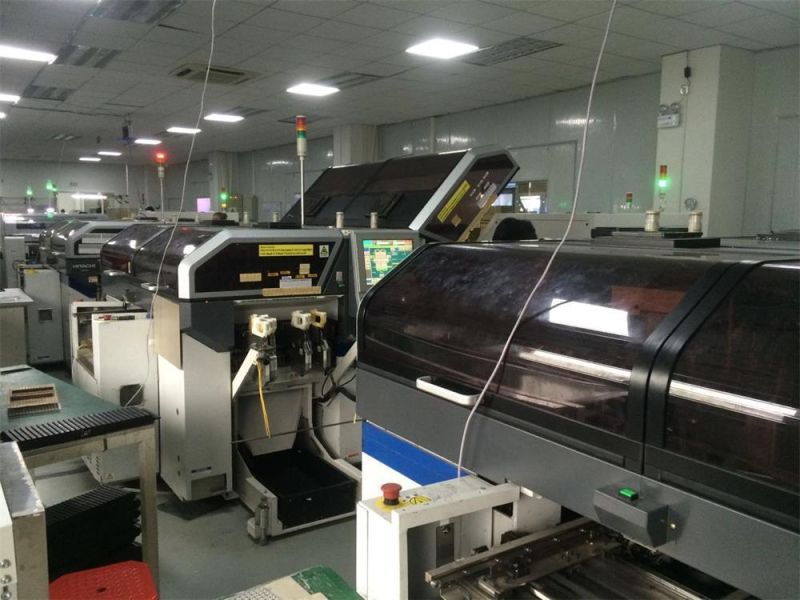

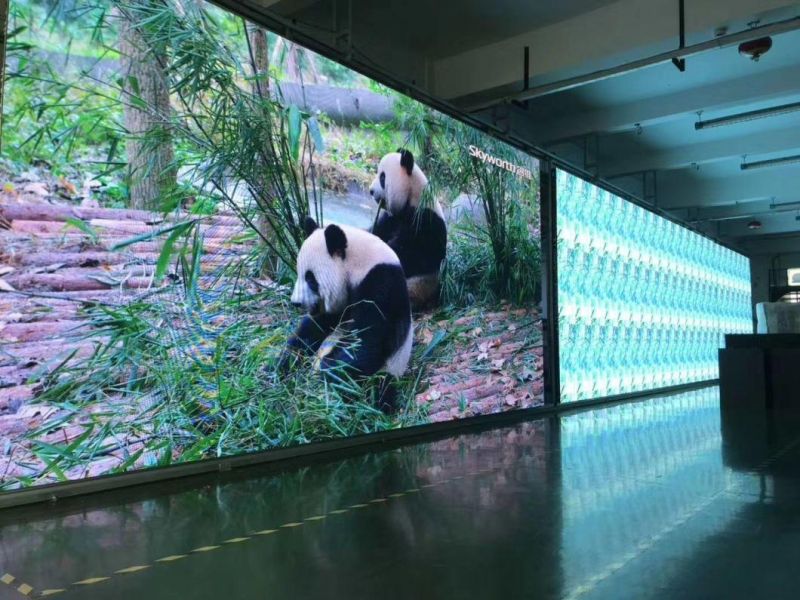

Factory photos :

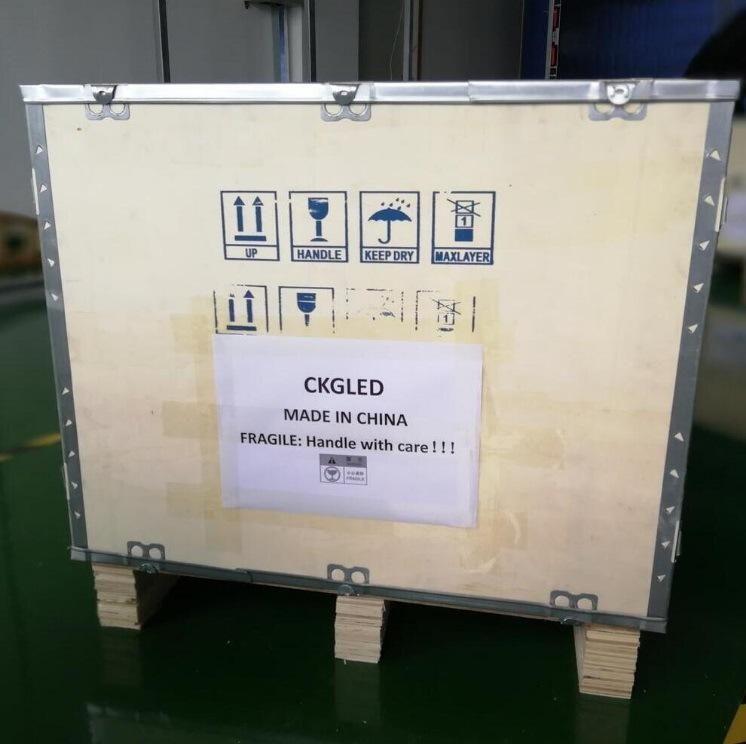

Package:

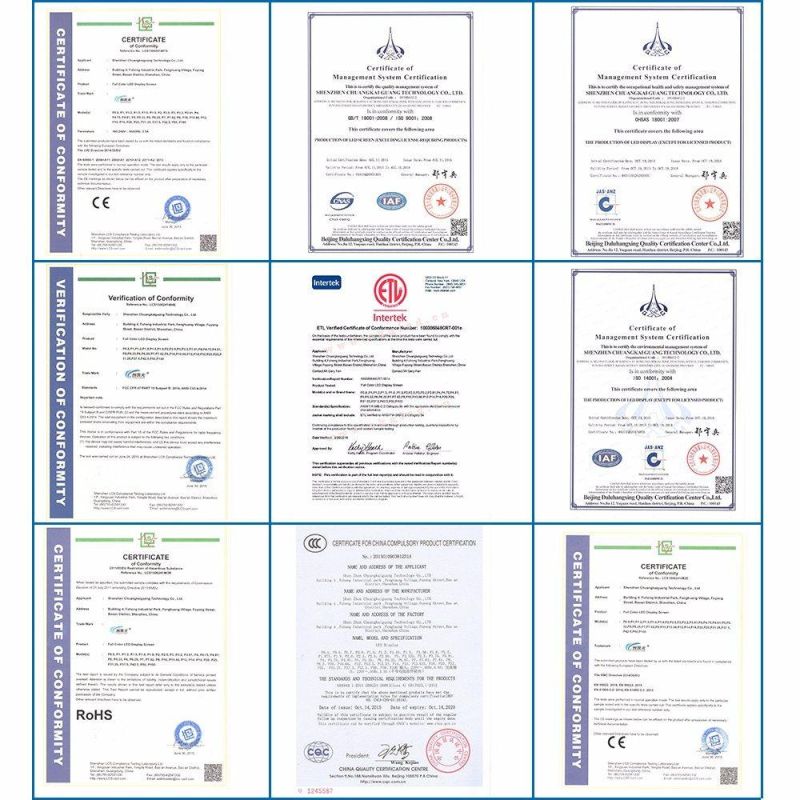

Certificates:
