• Model NO.：3.91mm
• System Operating Platform：XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：250X250mm
• Module Resolution：64X64dots
• Cabinet Size：500X500mm
• Cabinet Resolution：128X128dots
• Screen Brightness：1500nits
• Refresh Rate：1920Hz
• Controller：Nova , Linsn
• Compliance：Ce,CCC,RoHS,FCC
• Service：Rear Service
• Frame Frequency：60Hz
• Transport Package：Flight Case
• Specification：500x500mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ParameterSpecifications1ModelX032Pixel Pitch(mm)3.913LEDSMD20204Screen Resolution655365Scan Method1/166Cabinet size(L*H*W)  500x500x88mm  7Cabinet(Kg)10KG8Viewing angleH:140° V:140°9Grey Scale14-16bit adjustable10Refresh rate(HZ)≥192011Module size(mm)250*25012Brightness(nits)≥150013AVE. power consumption (W/sqm)20014MAX. power consumption(W/sqm)60015IP gradeIP3116controllerLinsn/Nova17Working humidity10~90%RH18Input VoltageAC 110V-220V +/-10%19Working temperature-30ºC~60ºC20ComplianceCCC / CE / RoHS

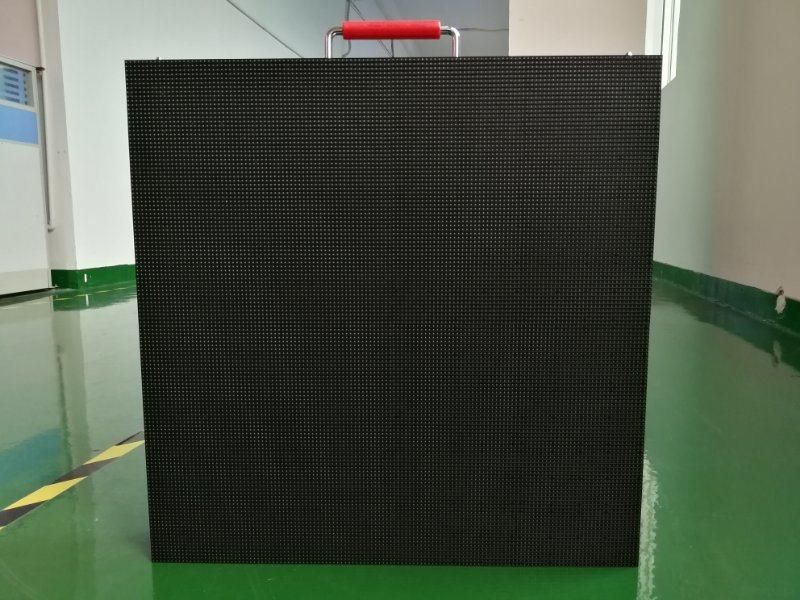

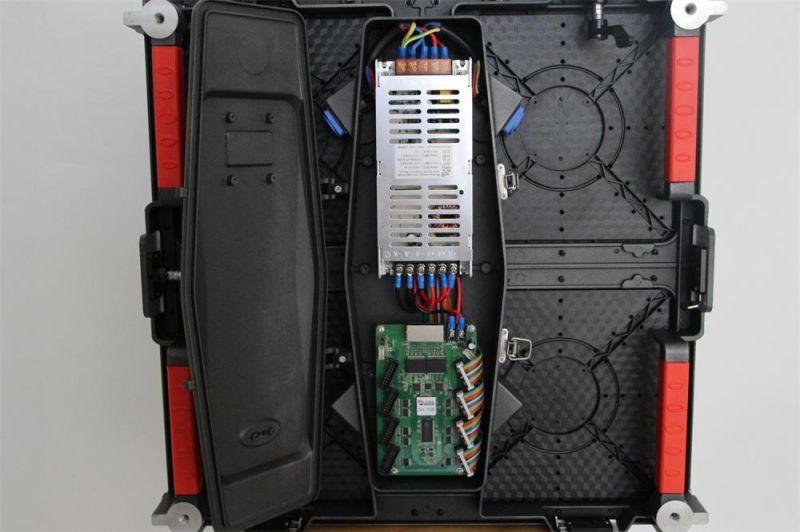

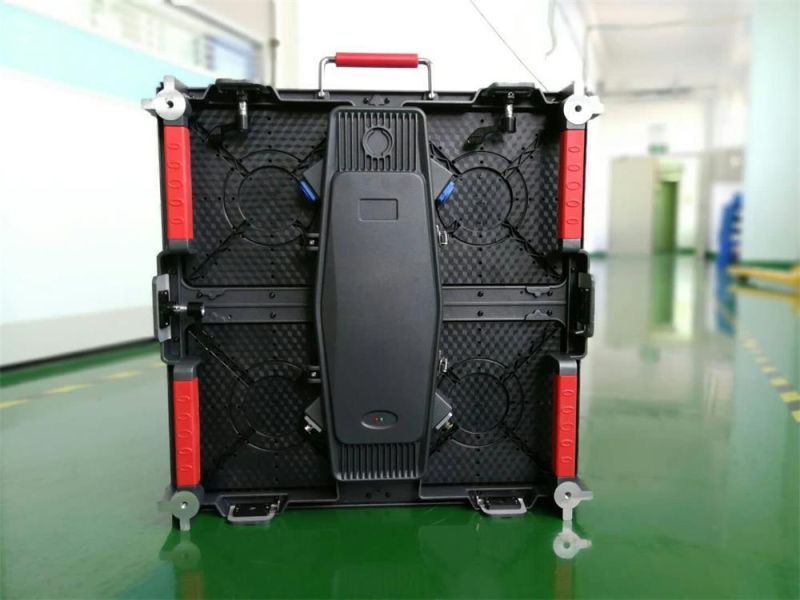

500mmx 500mm LED cabinet :

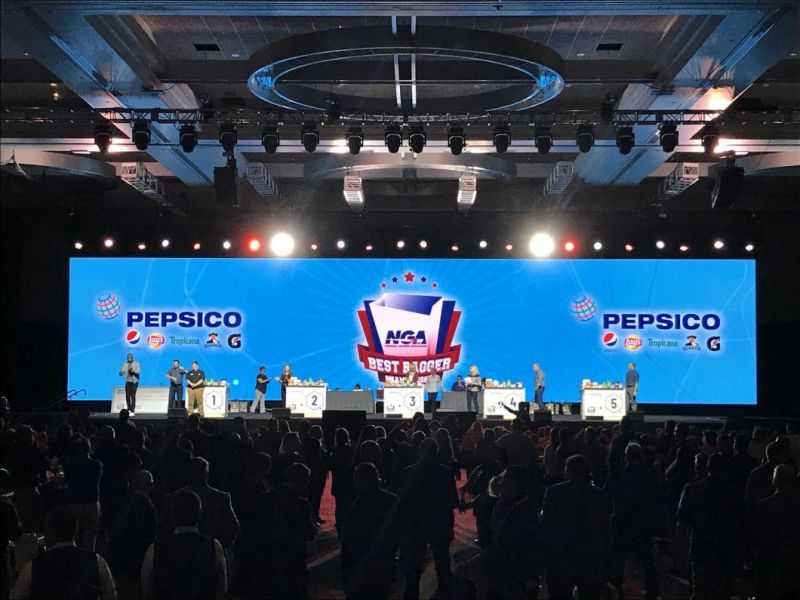

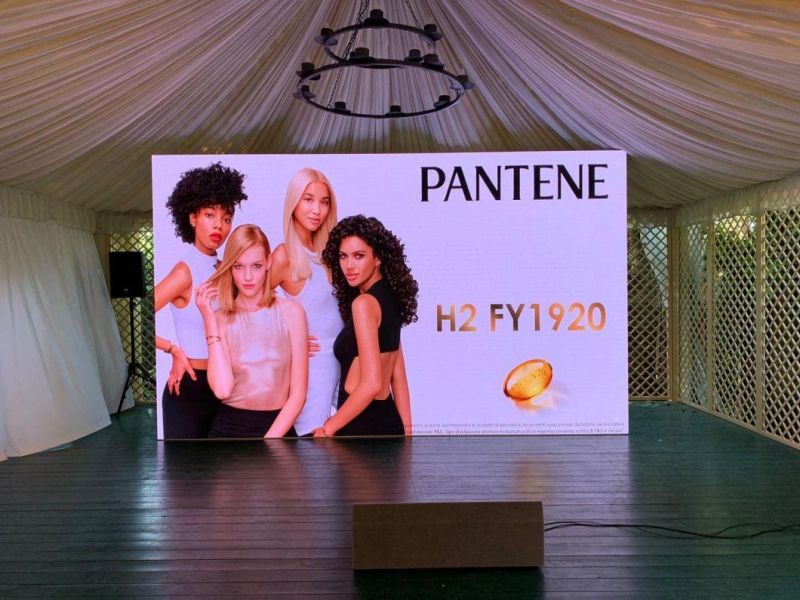

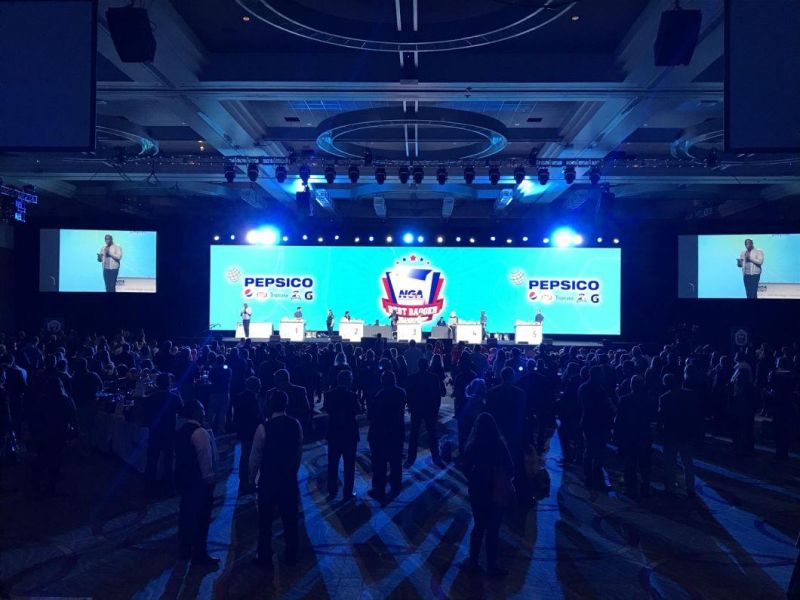

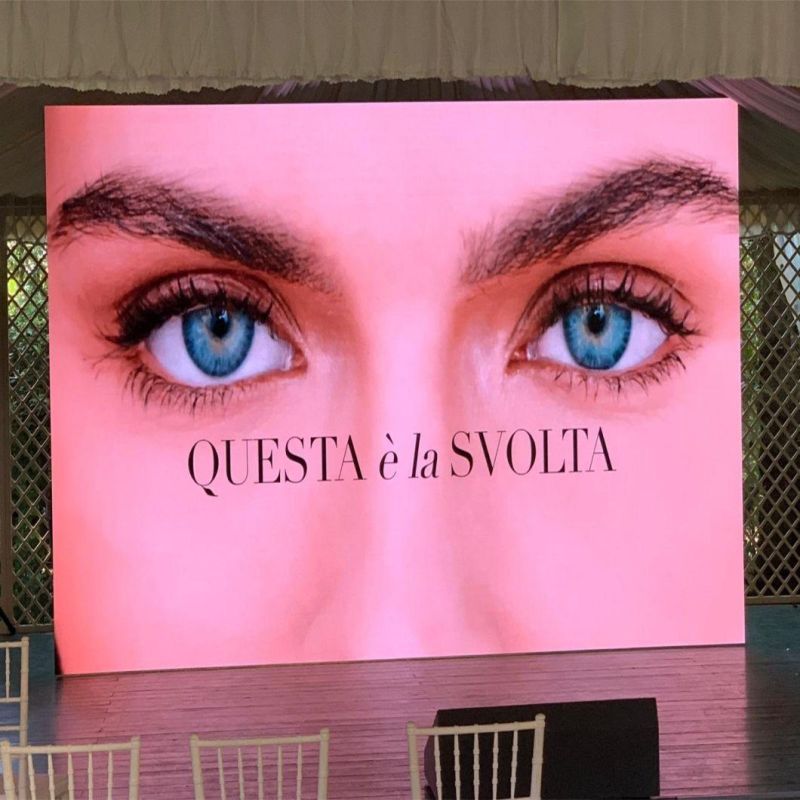

Used for Indoor conference/Event :



Used for Outdoor conference /event :

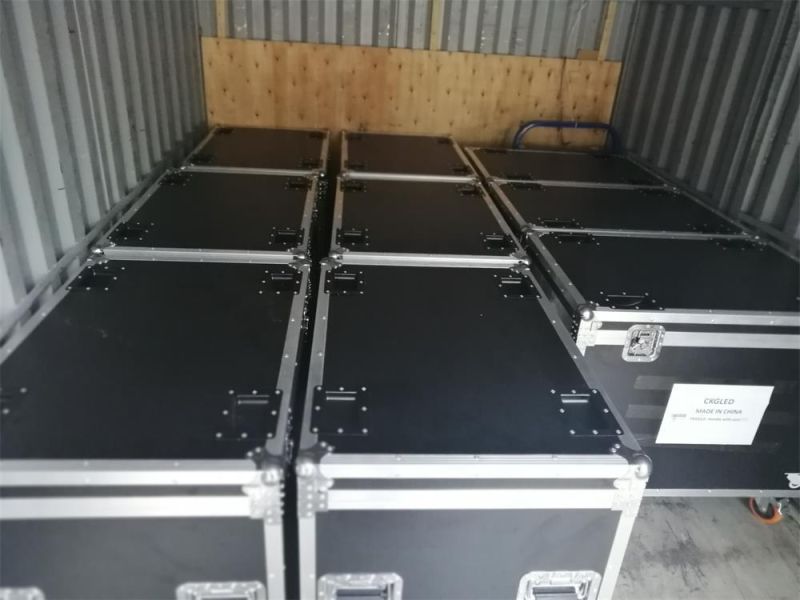

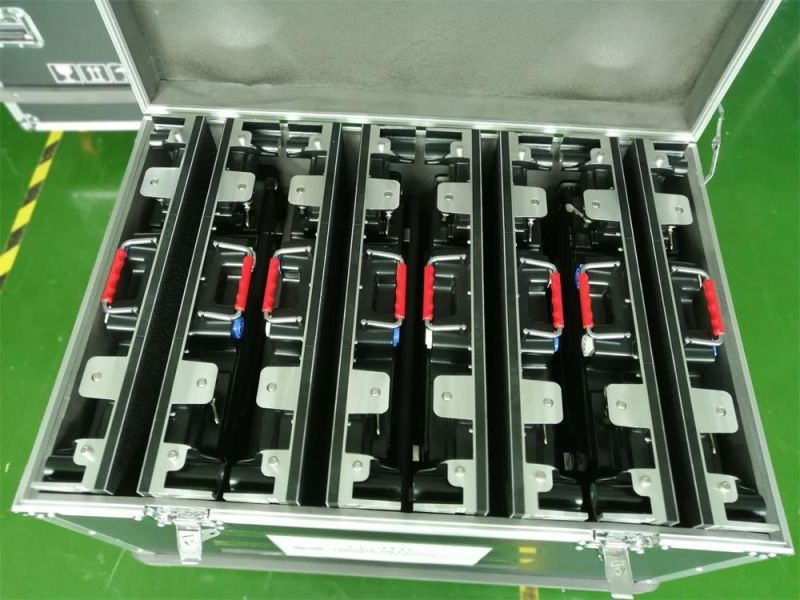

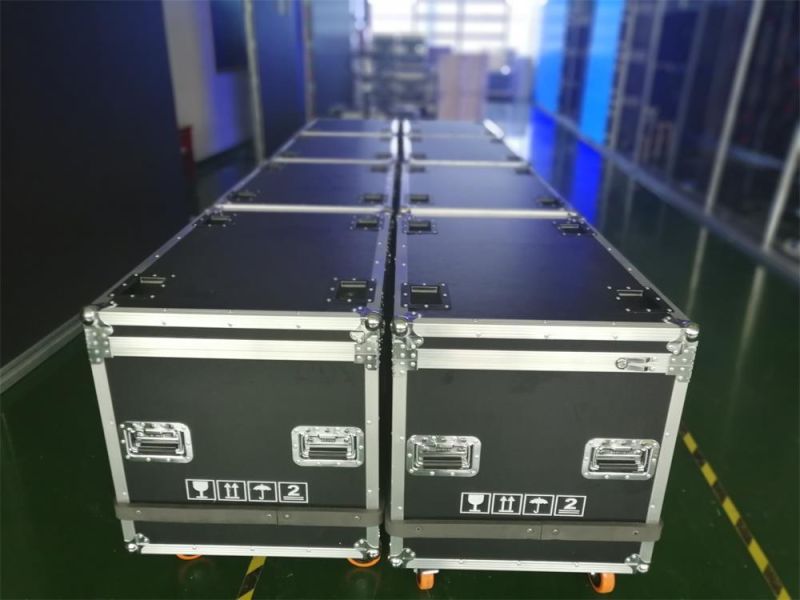

Package (Road case or Flight case):







Certificates:




Pre-producing:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design

In producing:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

After service:

1. 2 years warranty
2. 1% Free spare will be provided
3. 7 days a week, 24 hours a day on-line service for any technical support for any customers
4. Free training for customers in factory
5. Local Partner Installation Service
