• Model NO.：P1.667
• System Operating Platform：XP,Window7,8,Nt
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Rental
• IP Rating：IP31
• Certification：CE, RoHS, ETL
• LED Type：SMD1010 Black
• Cabinet Size：400X300mm
• Cabinet Resolution：240 X 180 Pixels
• View Angle(H/V)：160 Degree
• Transport Package：Flight Case or Wooden Case
• Specification：CE, FCC. ROHS, 3C
• Trademark：PRT
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：1000sq. M,Month

DESCRIPTION:PH1.6  Indoor led video wallNo.ParameterSpecification1Pixel Pitch(mm)1.6672Pixel Density360000pix/sq.m3LED TypeSMD1010 4LED Wave Length(nm)R:620-625/G:517.5-520/B:465-467.55LED Luminous Intensity(mcd)R:100~130/G:120~156/B:20~266Viewing Angle160° 7Brightness 1000cd/sqm8Drive Methodconstant current9Driving ICMBI515310Color Depth16bit11Refresh Rate(Hz)3840 Hz12Frame Rate(Hz)≥6013Brightness AdjustmentManual/Auto/Program14Module Size(mm)200×150 15Module Resolution(pixels)120×9016Cabinet Size(mm)400×30017Cabinet Display Resolution()240×18018Cabinet Type and MaterialDie-casting Aluminum19Cabinet Weight(Kg)5.0kg20Power Supply5.0V 40A 21Voltage(V)AC 220V22Avg. Power Consumption 40W/cabinet23Max. Power Consumption120W/cabinet24Service AccessBack maintenance25IP GradeIP3126Operating Temp/Humidity-20ºC~50ºC, 10~90%RH27Storage Temp/Humidity-40ºC~60ºC, 10~90%RH28Lifetime(Normal Temp)≥50000H29System ControlNova/Linsn30Compliant StandardCCC,CE,RoHs
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

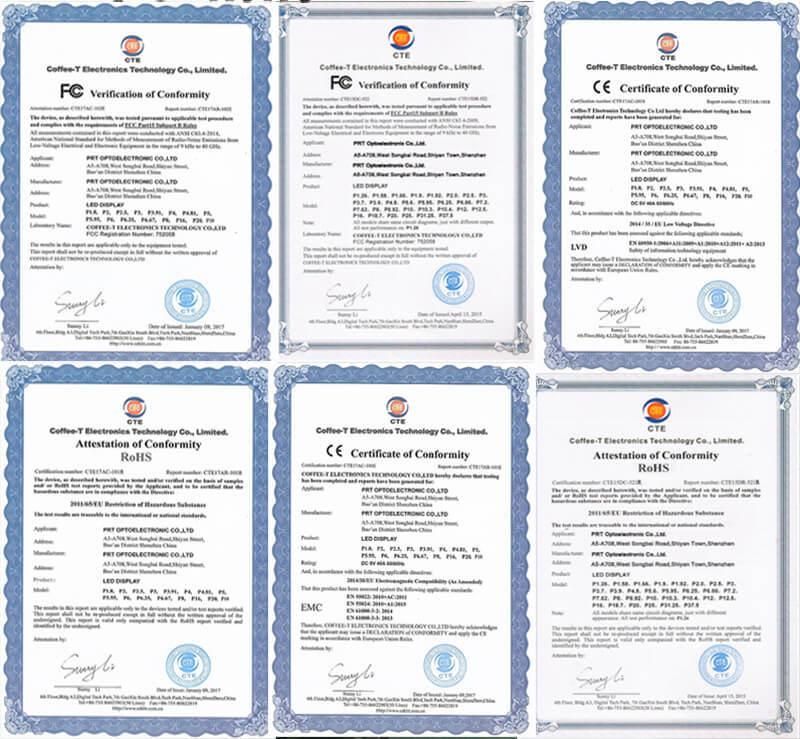

Our products produced based international standards,and with certifications:



When you send us the inquiry,please kindly tell us the more details :

1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as brand of LEDs, Driving IC,Power supply etc,
  if you have budget cost for your project,please let us know too
