• Model NO.：P2.5
• System Operating Platform：Win XP,Win 2000
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC, FCC
• Cabinet Size：480X480mm
• Cabinet Material：Die-Cast Aluminum
• LED Encapsulation：SMD2121
• Lamp Body Color：Black
• Transport Package：Flight Case or Wooden Case
• Specification：CE, FCC. ROHS, 3C
• Trademark：PRT
• Origin：Shenzhen
• HS Code：8528591090
• Production Capacity：1000sq. M,Month

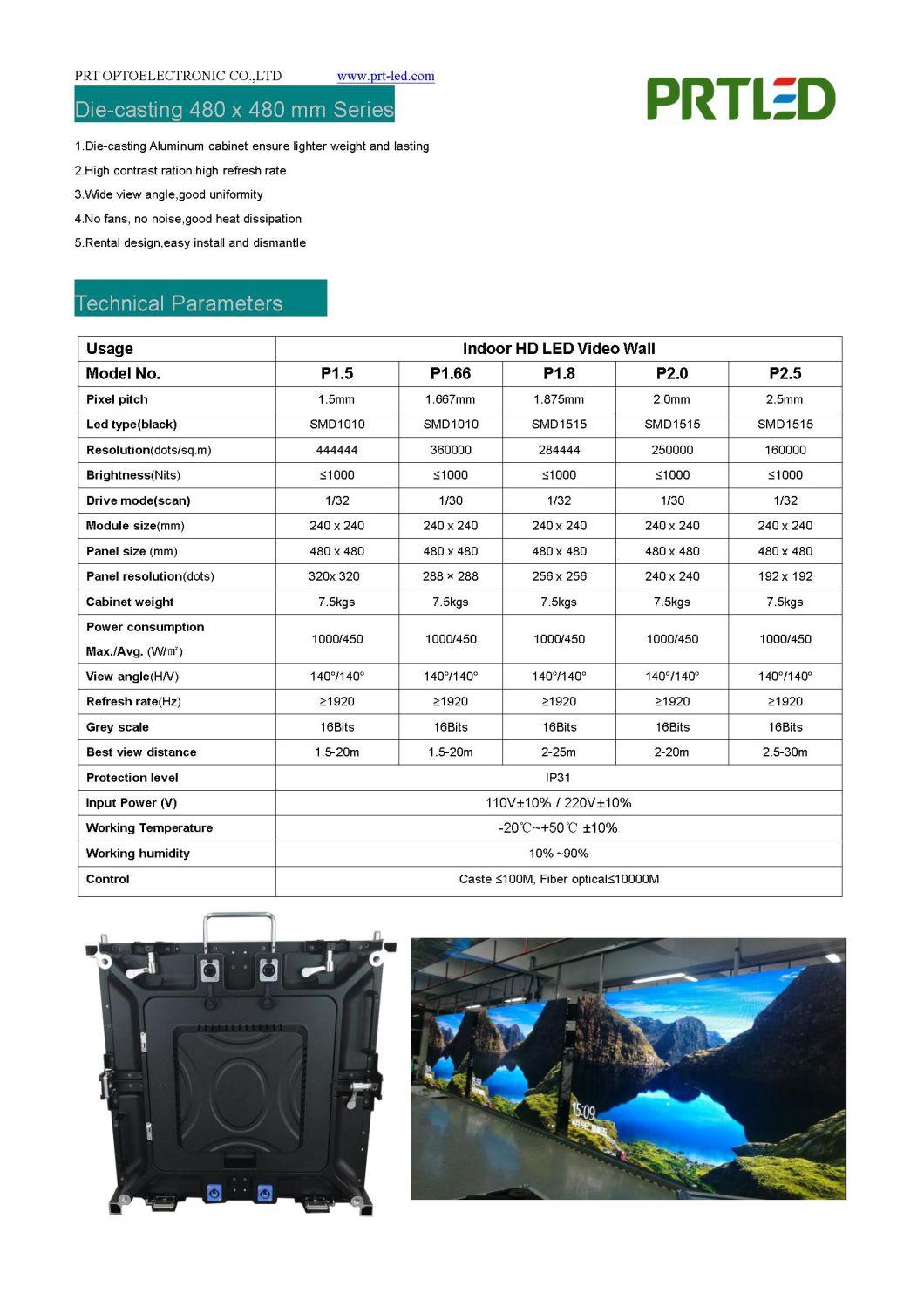

P2.5 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch3mmPixel Configuration1R1G1BLED componentSMD2121 blackSize of module160mm x 160mm/240 x 240mmResolution of module64x64dots/ 96 x 96 dotsSize of cabinet480mm x 480mm x 65mmResolution of cabinet192x192dotsMaterial of CabinetDie-casting AluminumWeight of Cabinet10.5KGSBrightness>1200cd/sq.mDensity160000dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance2-30MMaximum power consumption1200W/sq.mAverage power consumption640W/sq.mDriving method1/32 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>3000HzIP gradeIP31Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Also with other pixel pitch for this same cabinet size
