Outdoor Clear Video LED Stadium Display for P8 SMD
Panhong Chemical Co., Limited.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：8mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：350W , m²
Base Info
- Model NO.：outdoor-full color-SMD-p8
- Pixel Density：15625
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, CCC
- Product：P16 Full Color LED Display
- Module Size：256*125mm
- Cabinet Size：1024*1024mm
- Warranty Time：7 Years
- Colors：More Than 16.7m Colors
- Brightness：More Than 8000CD,Sqm
- Confiration：1r1g1b
- Best Viewing Distance：8-100m
- Mtbf：10,000 Hours
- Life Span：100,000hours

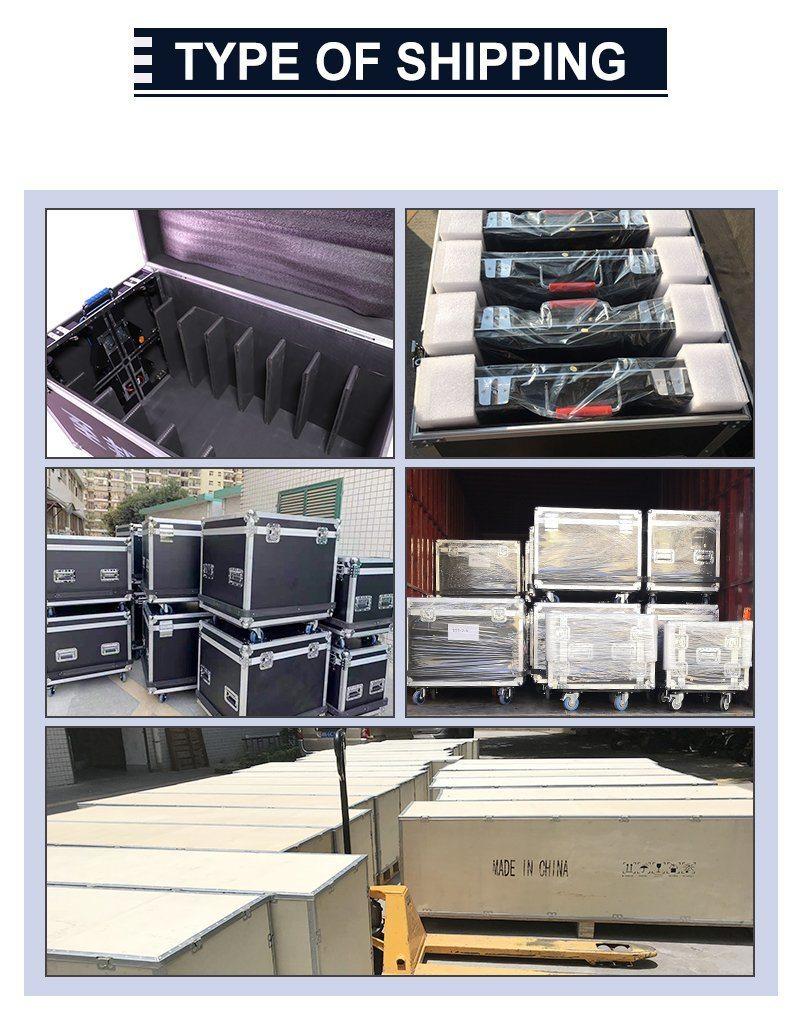

- Transport Package：Anti-Shaking Wooden Package&Air Freight Case
- Specification：P8 SMD
- Trademark：Foxgolden
- Origin：Shenzhen,Guangdong,China
- HS Code：8528591090
- Production Capacity：1000sqm,Month
Description
Technical parameterUnit module Module size 256*128mm Pixel pitch 8mm Pixel density 15625dots/m2 Pixel configuration 1R1G1B Led specification Φ 5ellipse Pixel resolution W: 16dots*H: 8dots Cabinet Dimension 1024mm*1024mm*170mm Quantities of module 32pcs Power supply 2-6pcs Thermal discharge Fan*2pcs Total weight 55kg Best viewing angle 8-100m Temperature Storage: -35~+85 Working: -35~+85 Thickness 17cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 250-480W Max. Power consumption ≤ 560W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Operating system WIN98/2000/NT/XP Control method Synchronization Main technical parameter Driving device Static scanning Drive type Constant Current driver IC Refresh frequency ≥ 400Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance More than 8000cd/sqm Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--95% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1024*768 Communication distance Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM Software LED media player
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
