• Model NO.：P10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Module：P10
• Module Size：160*160mm
• Waterproof：IP65
• Brightness：More Than 7500CD,Sqm
• Horizontal Viewing Angle：120degree
• Life-Span：10, 000hours
• Best Viewing Angle：10-300m
• Working Voltage：AC220V,110V± 10%
• Refresh Frequency：≥ 400Hz
• Brightness of White Balance：More Than 8000CD,Sqm

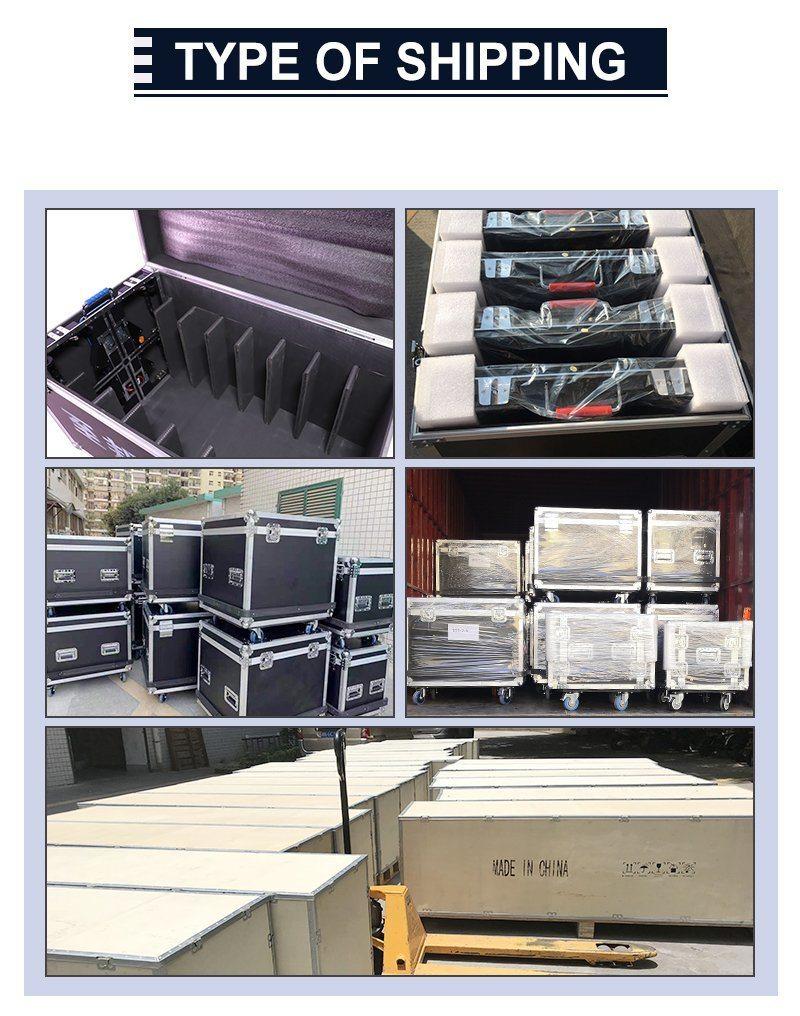

• Transport Package：1.Anti-Shaking Wooden Package.2.Air Flight Case
• Specification：CE&RoHS&UL&FCC&SGS&3c
• Trademark：FOXGOLDEN
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：4000sqm,Month

Technical parameterUnit moduleModule size160*160mmPixel pitch10mmPixel density10000dots/m2Pixel configuration2R1G1BLed specificationΦ 5ellipsePixel resolutionW: 16dots*H: 8dotsCabinetDimension960mm*960mm*110mmQuantities of module18pcsPower supply4pcsThermal dischargeFan*2pcsTotal weight55kgBest viewing angle10-300mTemperatureStorage: -35degree~+85degreeWorking: -20degree~+80degreeThickness11cm can adjustableRemarks: cabinet size can changed, upon project need.PowerWorking voltageAC220V/110V± 10%Average power consumption450WMax. Power consumption≤ 1000W/sqmCurrent≤ 20mA(single LED)Control systemCPUPentium4 or aboveOperating systemWIN98/2000/NT/XPControl methodSynchronizationMain technical parameterDriving deviceStatic scanningDrive typeConstant Current driver ICRefresh frequency≥ 400HzGrey scale/colors256 levels of each color(R/G/B)/16.7M colorBrightness of white balanceMore than 8000cd/sqmBrightness adjustment256 levels of each color(R/G/B)by softwareOperating ambient humidity10%--95%Video signalPAL/NTSCControl systemDVI display card+full color controller cardMTBF≥ 10, 000hoursLife span≥ 100, 000hoursFlatnessTolerance of interpixel ≤ 0.3mmTolerance of modules clearance≤ 0.6mmPower switchAutomatic switchDisplay mode1024*768Communication distanceNetwork calbe: 100m, Multi-model: 500m, Single-model fiber: 20kmSoftwareLED media player
