• Model NO.：P6-outdoor
• Pixel Density：27777DOT,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, SGS ISO
• Module Size：384*192mm
• Best Viewing Angle：140°
• Working Voltage：AC220V,110V± 10%
• Refresh Frequency：≥ 300Hz
• Brightness：8500CD,M2
• Max Consumption：1100W,M2
• Life Span：>100, 000hours
• Mtbf：>10, 000hours
• Transport Package：1.Anti-Shaking Wooden Package.2.Air Flight Case
• Specification：CE&RoHS&UL&FCC&SGS&3c
• Trademark：FOXGOLDEN
• Origin：Shenzhen City, Guangdong Province, China
• HS Code：8528591090
• Production Capacity：4000sqm,Month

Technical parameterUnit moduleModule size384*192mmPixel pitch6mmPixel density27777dots/m2Pixel configuration1R1G1BLed specification3528 SMD 3 in 1Pixel resolutionW: 192dots*H: 96dotsCabinetDimension768mm*768mm*100mmQuantities of module8pcsPower supply4pcsThermal dischargeFan*2pcsTotal weight40kgBest viewing angle140°TemperatureStorage: -35degree~+85degreeWorking: -35degree~+85degreeThickness10cm can adjustableRemarks: cabinet size can changed, upon project need.PowerWorking voltageAC220V/110V± 10%Average power consumption800-950WMax. Power consumption≤1100W/sqmCurrent≤ 20mA(single LED)Control systemCPUPentium4 or aboveOperating systemWIN98/2000/NT/XPControl methodSynchronizationMain technical parameterDriving device1/16scanningDrive typeConstant Current driver ICRefresh frequency≥ 800HzGrey scale/colors256 levels of each color(R/G/B)/16.7M colorBrightness of white balanceMore than 7500cd/sqmBrightness adjustment256 levels of each color(R/G/B)by softwareOperating ambient humidity10%--95%Video signalPAL/NTSCControl systemDVI display card+full color controller cardMTBF≥ 10, 000hoursLife span≥ 100, 000hoursFlatnessTolerance of interpixel ≤ 0.3mmTolerance of modules clearance≤ 0.6mmPower switchAutomatic switchDisplay mode768*768Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KMSoftwareLED media player

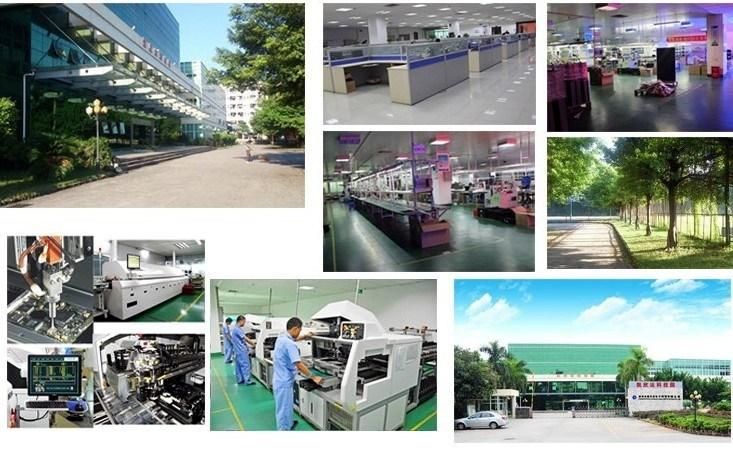

Company Information




Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004,
we have been dedicating to the aim that making high quality products, and have been well integrated with R&D,
production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED
display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough
progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent
public reputation from both domestic and overseas market.
