• Model NO.：SMLN-60W
• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• CRI (Ra>)：75,80,85,90
• Working Lifetime(Hour)：50000
• Beam Angle：150*70°

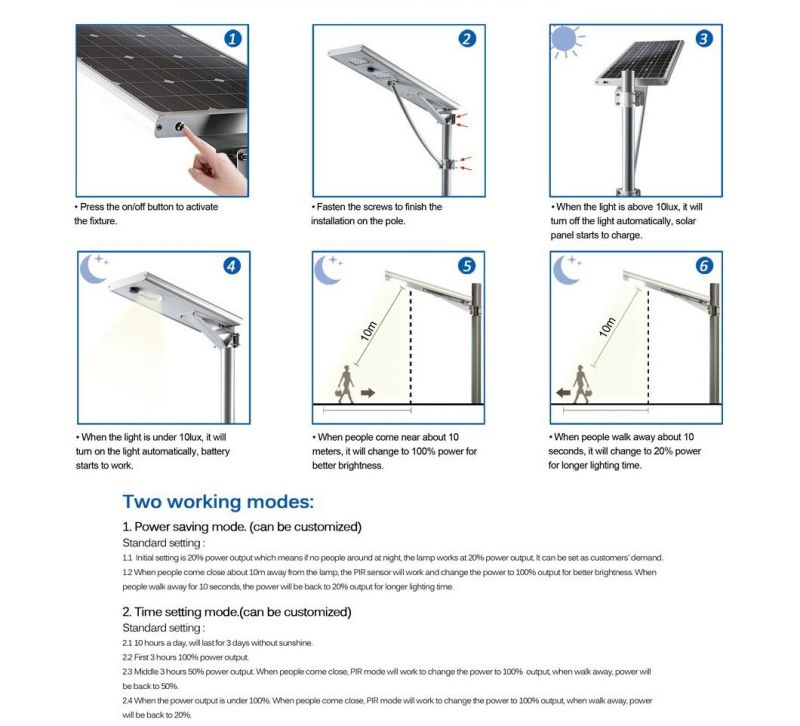

• Working Mode：Full Power and PIR Sensor
• Lighting Area：100m²
• Lighting Time：Over 3 Nights
• Pole Height：7m 5m 12m
• Solar Cells：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• LED Chip Brand：USA Bridgelux 210lm,W
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：′-40ºC - 60
• Transport Package：Carton
• Specification：1144X450X140mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-60W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V CRI (Ra>) 75/80/85/90 Working Lifetime(Hour) 50000 Beam Angle 150*70° Working Mode Full Power and PIR Sensor Lighting Area 100m² Lighting Time Over 3 Nights Pole Height 7m 5m 12m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 10 Years LED Chip Brand USA Bridgelux 210lm/W Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) ′-40ºC - 60 Transport Package Carton Specification 1144X450X140mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

1.3-5 rainy /cloudy days backup 2.Dusk-to-Dawn 12 hours with dim energy saving mode 3.Lighting times can be individually adjusted with program switch. 4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.

Model NO.	SMLN-60W	Battery Type:	LiFePO4 42Ah/12.8V
Power:	60W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1144*450*470mm
Viewing Angle:	120	Packing Dimension:	1180*510*200mm
Working temperature :	,-20 ~ +70	Product Weight	20.67kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	7-8 m
Solar Panel:	18V 90W Mono-crystalalline	Warranty:	3 years
