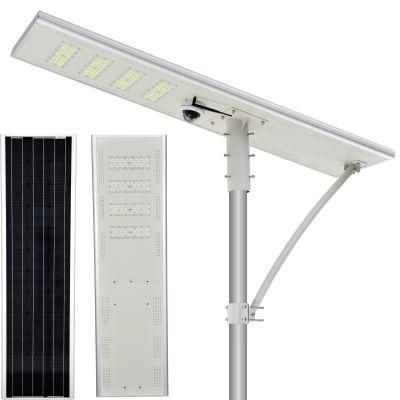

• Model NO.：SMLN-90W

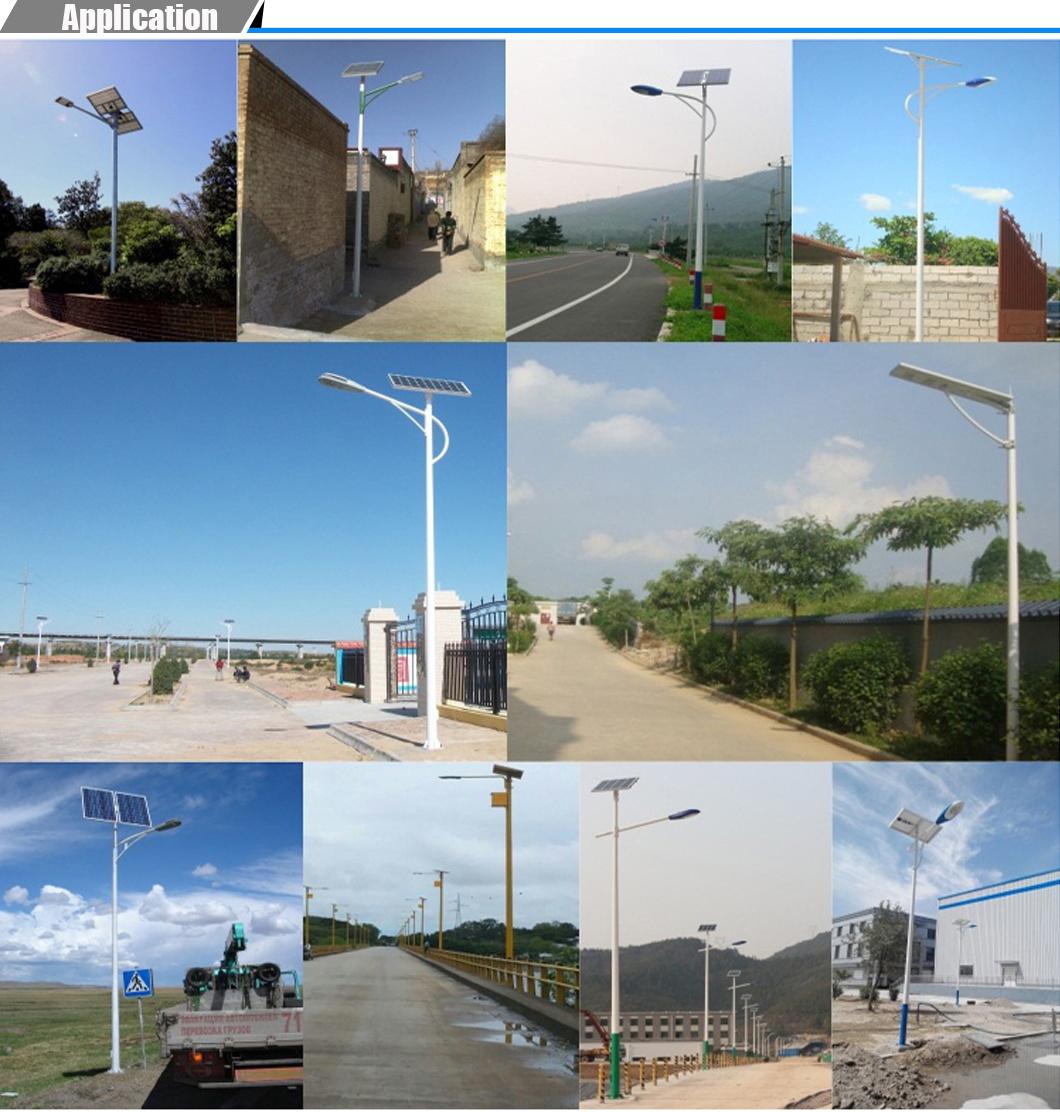

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Mounting Height：3m 4m 5m 6m 7m
• Controller：MPPT
• LED Chip Brand：USA Bridgelux 210lm,W
• Working Lifetime(Hour)：10000
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Distance Between Poles：10-15m
• Pole Height：7m 5m 12m
• Solar Cells：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Back up Days：5 Days
• Maintenance：10 Years Free Maintenance
• Transport Package：Carton
• Specification：1593X450X45mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-90W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Mounting Height 3m 4m 5m 6m 7m Controller MPPT LED Chip Brand USA Bridgelux 210lm/W Working Lifetime(Hour) 10000 Lamp Luminous Efficiency(Lm/W) 180lm/W Distance Between Poles 10-15m Pole Height 7m 5m 12m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Back up Days 5 Days Maintenance 10 Years Free Maintenance Transport Package Carton Specification 1593X450X45mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

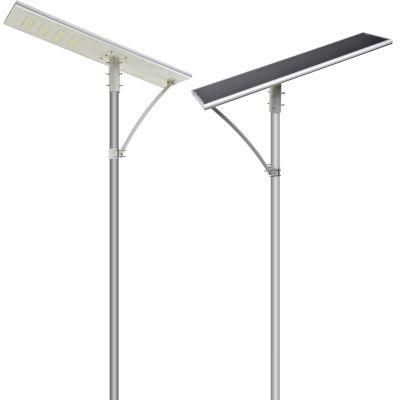

Product Description

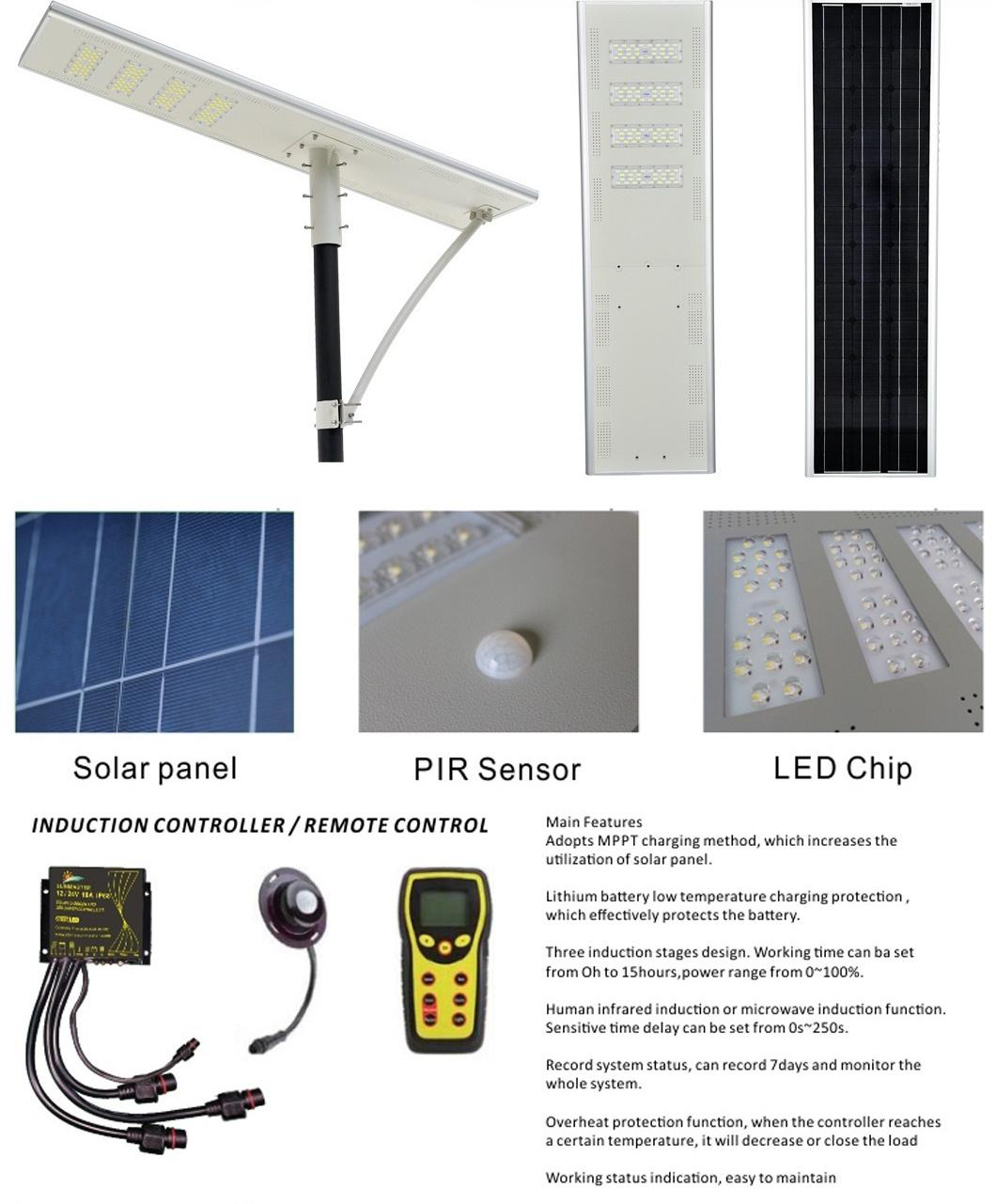

1.3-5 rainy /cloudy days backup 2.Dusk-to-Dawn 12 hours with dim energy saving mode 3.Lighting times can be individually adjusted with program switch. 4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.

Model NO.	SMLN-90W	Battery Type:	LiFePO4 27Ah/25.6V
Power:	90W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	-20 ºC~ +70ºC	Product Weight	25.4kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12m
Solar Panel:	18V 120W Mono-crystalalline	Warranty:	3 years
