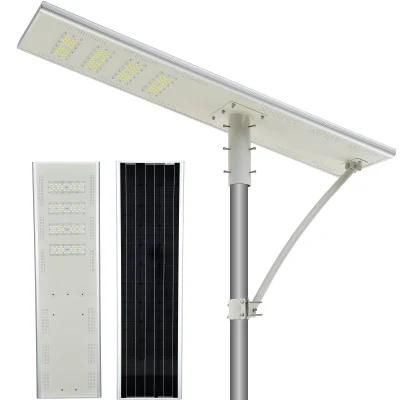

Solar Power Energy Street Light
Hechuan Color Printing(Guangzhou) Technology Co., Ltd.- Light Source：LED Light
- Color Temperature(CCT)：Cool White
- Lamp Body Material：Aluminum Alloy
- Lamp Power：50W
- Power Supply：Solar
- Average Life：>8000h
Base Info
- Application：Highway, Square, Garden
- IP Rating：IP66
- Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
- Voltage：12V
- Mounting Height：4m
- Battery：24ah
- LED Chip Brand：USA Bridgelux 210lm,W
- Lamp Luminous Efficiency(Lm/W)：180lm,W
- Pole Height：7m
- Solar Cells：Mono or Poly High Efficiency A Grade
- Dim/Non-Dim：Both Can Do
- Approval：Ce,RoHS,Coc,IEC Soncap
- OEM/ODM/Customized：Available
- Warranty(Year)：10 Years
- Controller：MPPT
- Back up Days：3 Days
- Maintenance：8 Years Free Maintenance
- Transport Package：Carton
- Specification：1144X450X140mm
- Trademark：sunmaster
- Origin：Zhejiang, China
- HS Code：9405409000
- Production Capacity：1000PCS,Week
Description
Basic Info.
Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Mounting Height 4m Battery 24ah LED Chip Brand USA Bridgelux 210lm/W Lamp Luminous Efficiency(Lm/W) 180lm/W Pole Height 7m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 10 Years Controller MPPT Back up Days 3 Days Maintenance 8 Years Free Maintenance Transport Package Carton Specification 1144X450X140mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/WeekProduct Description
1.3-5 rainy /cloudy days backup
2.Dusk-to-Dawn 12 hours with dim energy saving mode
3.Lighting times can be individually adjusted with program switch.
4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.
| Model NO. | SMLN-50W | Battery Type: | LiFePO4 33Ah/12.8V |
| Power: | 50W | Charging Time: | 6-10 hours |
| Color Temperature: | 6000-6500K | Discharging Time: | 10-12 hours |
| Certificate: | CE/ROHS/IP65 | Product Dimension: | 1144*450*470mm |
| Viewing Angle: | 120 | Packing Dimension: | 1180*510*200mm |
| Working temperature : | ,-20 ~ +70 | Product Weight | 19.5KG |
| Lamp Efficiency: | 170 lm/w | Material: | Aluminum Alloy |
| Led chip brand: | USA Bridgelux LED chip | Install Height: | 8-9 m |
| Solar Panel: | 18V 80W Mono-crystalalline | Warranty: | 3 years |
