Foxgolden P6 SMD Indoor LED Display Screen Board
Panhong Chemical Co., Limited.- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：6mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：27,777 dots , m²
- Scanning Mode：1,8 Scan
Base Info
- Model NO.：P6 indoor
- System Operating Platform：WIN XP
- Display Type：LED Video Display

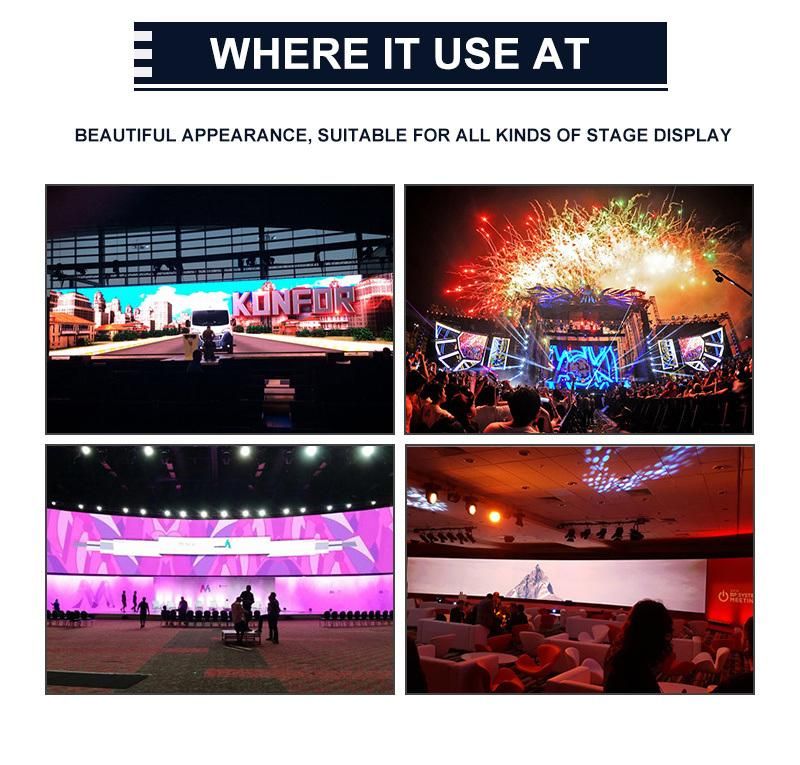

- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP60
- Certification：CE, RoHS, UL, CCC
- Module Dots：32*16
- Module Size：192*96
- Color：1r1g1b
- Best Viewing Distance：6-100m
- Horizontal Viewing Angle：140 Degree
- Refresh Frequency：300Hz
- Frame Frequency：60Hz
- Warranty：3 Years
- Mtbf：10000hours
- Life Span：100,000hours
- Transport Package：Anti-Shaking Wooden Case&Carton&Flight Case
- Specification：CE, RoHS, UL, SGS
- Trademark：FOXGOLDEN
- Origin：Shenzhen, Guangdong, China.
- HS Code：8528591090
- Production Capacity：60, 000, 000sqm,Month
Description
Technical parameterUnit module Module size 192*96mm Pixel pitch 6mm Pixel density 27777dots/m2 Pixel configuration 1R1G1B Led specification 3528 SMD 3 in 1 Pixel resolution W: 192dots*H: 96dots Cabinet Dimension 768mm*768mm*150mm Quantities of module 32pcs Power supply 4pcs Thermal discharge Fan*2pcs Total weight 40kg Best viewing angle 2-100m Temperature Storage: -35~+85 Working: -35~+85 Thickness 15cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 200-300W Max. Power consumption ≤ 320W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Operating system WIN98/2000/NT/XP Control method Synchronization Main technical parameter Driving device 1/16scanning Drive type Constant Current driver IC Refresh frequency ≥ 300Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance More than 2200cd/sqm Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--95% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1024*768 Communication distance Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM Software LED media player
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
