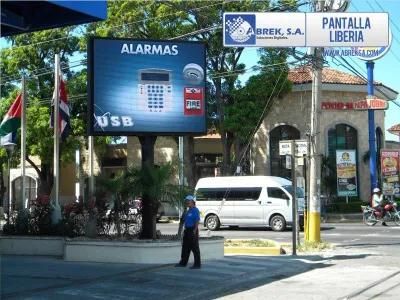

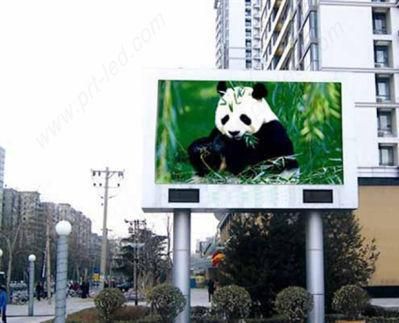

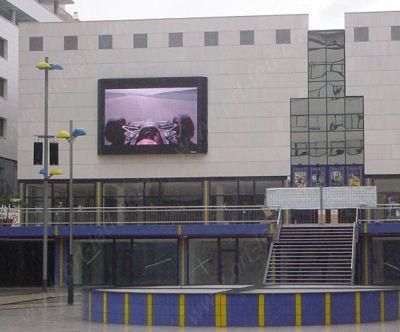

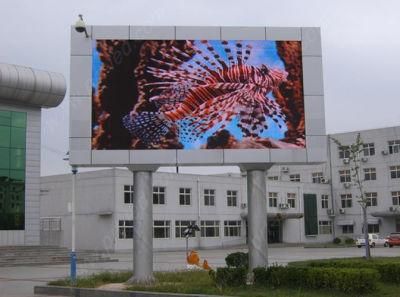

P16mm Full Color LED Display Board for Outdoor Advertising
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：16mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：P16-DIP
- Pixel Density：3906dots,Sq.M
- Scanning Mode：Static Scan
- Display Type：LED Video Display

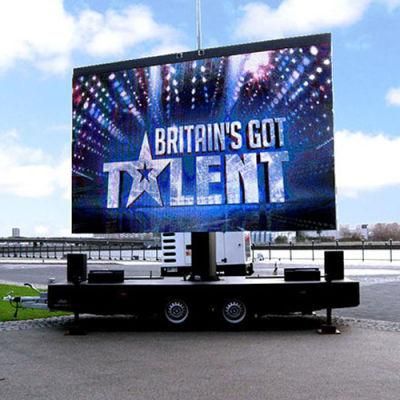

- Application：Advertising,Stage Performance,Rental
- Certification：CE, RoHS, CCC
- LED Encapsulation：DIP 346
- Module Size：256X256mm
- Module Resolution：16X16dots
- Cabinet Size：1024X768mm
- Transport Package：Wooden Case or as Required
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
P16 Outdoor full Color LED Screen SpecificationPixel pitch 16mm Pixel Configuration 1R1G1B LED component DIP346(Epsitar chips) Size of module 256mm x 256mm Resolution of module 16x16 Size of cabinet 1024mmx 768mm x 150mm Resolution of cabinet 64x48 Material of Cabinet Iron with back doors Weight of Cabinet <50KGS Brightness >7500cd/m2 Density 3906dots/m2 Best viewing angle 110 /50 Best viewing distance 15-200M Maximum power consumption <800W/m2 Average power consumption <300W/m2 Driving method Static Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >3000Hz IP grade IP65 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
