P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：8mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：220W , m²

Base Info

  • Model NO.：8mm
  • Pixel Density：15625dots,Sqm
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：320X160mm
  • Module Resolution：32X16dots
  • Cabinet Size：960X960X150mm
  • Cabinet Resolution：120X120dots
  • Screen Brightness：7500nits
  • Protection Grade：IP65
  • Compliance：Ce,CCC,FCC,RoHS
  • Controller：Nova, Linsn
  • Maintenance：Rear Service
  • Transport Package：Plywooden Case
  • Specification：960x960mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

Pixel pitch8mmModule size320mm*160mmModule pixel40dots*20dotsDriving method1/4 scan methodPixel configuration1R1G1BPixel density15625 dots/sqmModule resolution256dots


Cabinet specifications:
 Cabinet size960mm*960mm*150mmCabinet resolution120dots*120dotsCabinet weight38kgModule Qty18pcsCabinet pixel14400dotspower consumption(w/sqm)AVE.202 / MAX.599


Screen parameters:
 No.ParameterSpecification1Pixel Pitch8mm2Pixel Density15625pix/sqm3LED TypeSMD35354Viewing Angle(H)120°,(V)120°5Brightness≥7500cd/sqm6Drive Method1/4 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption220W/sqm16Max. Power Consumption650W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance/ Front Maintenace 19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

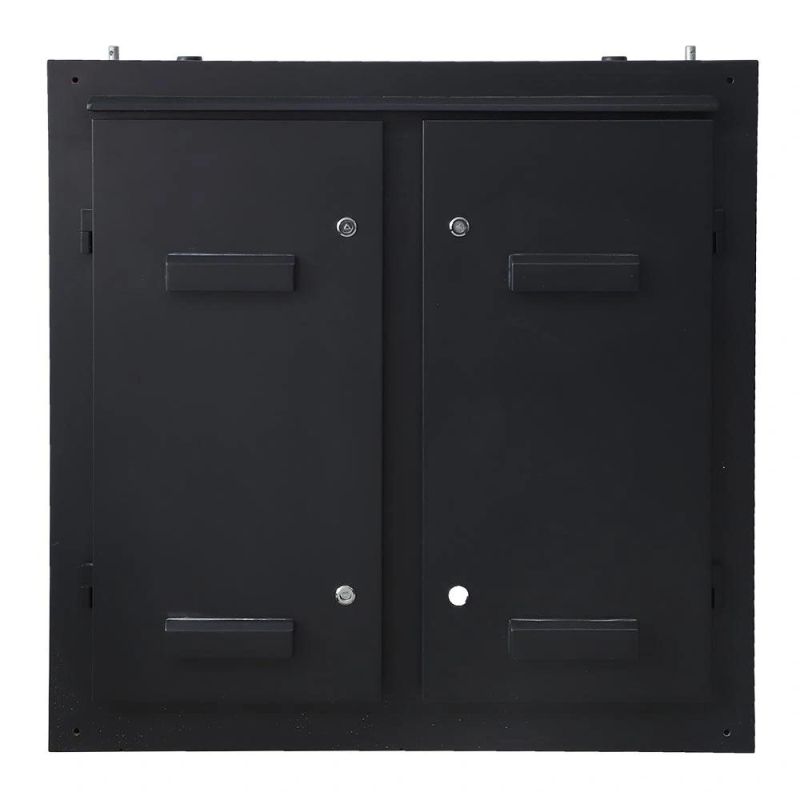

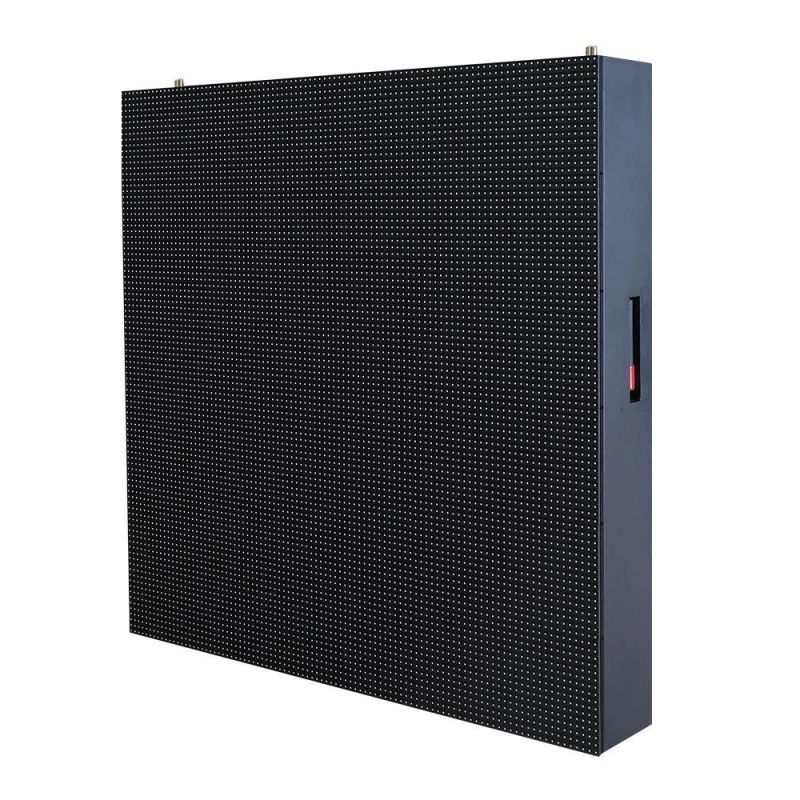

Unit LED Display Panel:
P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen
P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen

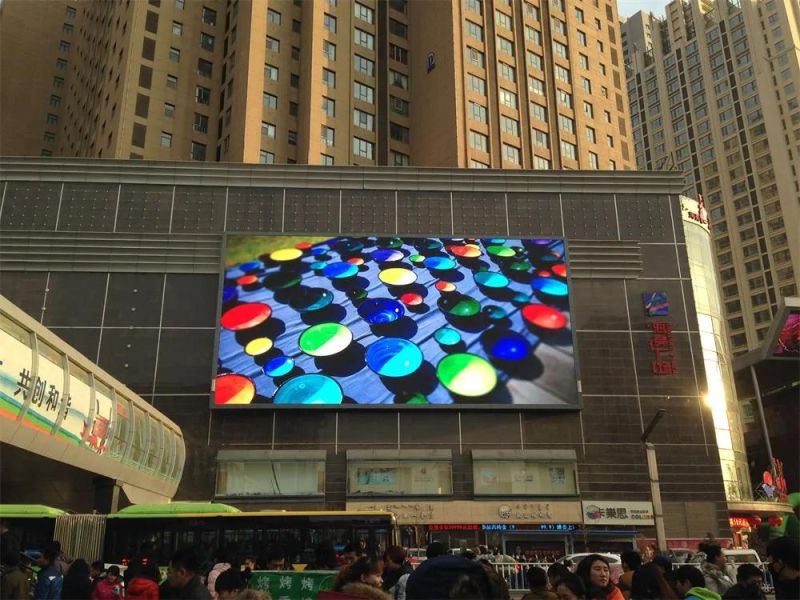

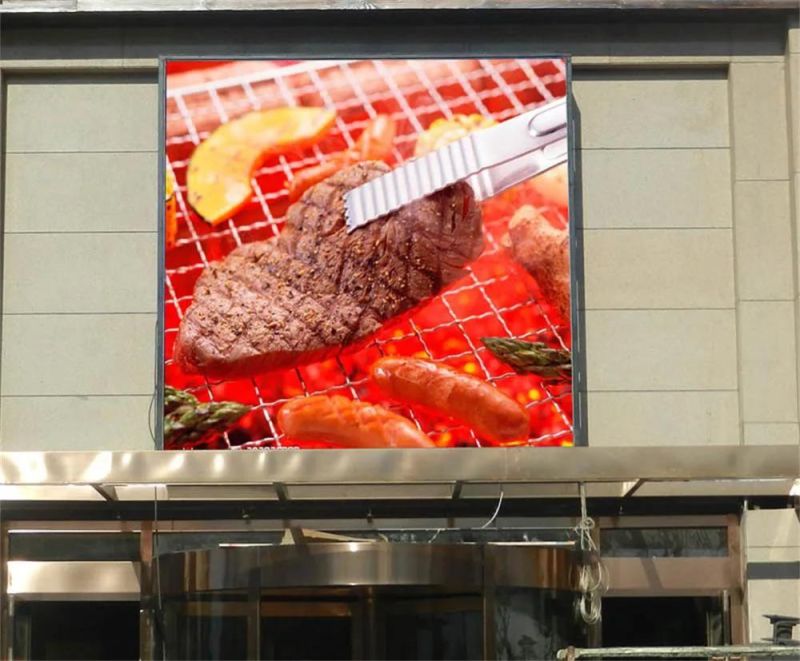

Wall -mounted on the building Photos :



P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen

P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen

Unipole standing on the roadside :

P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen

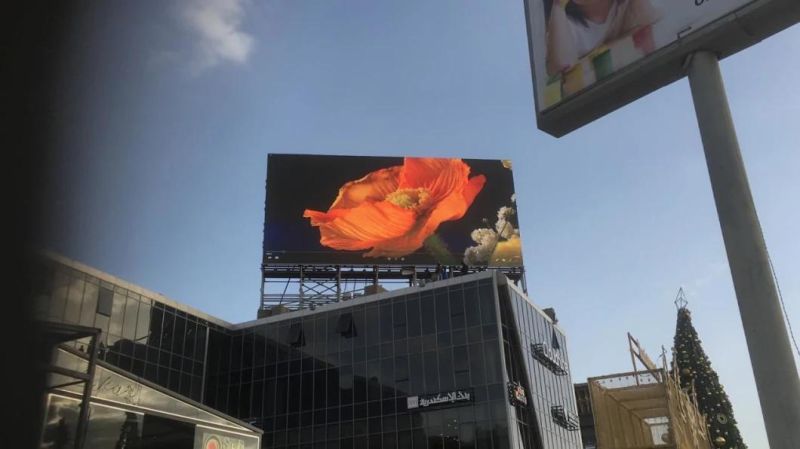

Installed on the roof :
P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen


Package:
P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen
P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen
P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen


Certificates:

P8mm in Stock Outdoor Waterproof RGB Advertising Full Color LED Display Screen
