P5/P6/P8/P10 Outdoor RGB Full Color Waterproof LED Display Screen in Stock
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：250W,Sqm
Base Info
- Model NO.：10mm
- Pixel Density：10000dots,Sqm
- Scanning Mode：1,2 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：320X160mm
- Module Resolution：32X16mm
- Cabinet Size：960X960
- Cabinet Resolution：96X96dots
- Screen Brightness：7000nits
- Protection Grade：IP65
- Compliance：Ce,CCC,FCC,EMC,RoHS
- Service：Rear Maintenance, Front Maintenance
- Controller：Nova, Linsn
- Transport Package：Wooden Case
- Specification：960x960mm Can be customised
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
Basic Info.
Model NO. 10mm Pixel Density 10000dots/Sqm Scanning Mode 1/2 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Module Size 320X160mm Module Resolution 32X16mm Cabinet Size 960X960 Cabinet Resolution 96X96dots Screen Brightness 7000nits Protection Grade IP65 Compliance Ce/CCC/FCC/EMC/RoHS Service Rear Maintenance/ Front Maintenance Controller Nova/ Linsn Transport Package Wooden Case Specification 960x960mm Can be customised Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/MonthProduct Description
FS SERIES PRODUCE FEATURES:
. High brightness and good quality by adopting high quality leds.
. Modular design, flexible cabinet size to meet up with different requests.
. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
. Great uniformity and screen flatness.
. Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
PRODUCT SPECIFICATIONS:
| NO. | Parameter | Specification |
| 1 | Model | FS10 |
| 2 | Pixel Pitch (mm) | 10 |
| 3 | Physical Density (dot/m2) | 10000 |
| 4 | LED Configuration | 1R1G1B |
| 5 | LED Type | SMD3535 |
| 6 | Module Size (mm x mm) | 320x160 |
| 7 | Module Resolution (PX x PX) | 32x16 |
| 8 | Module Power Consumption (W) | 38 |
| 9 | Drive Mode | 1/2 Constant Current Drive |
| 10 | Horizontal Viewing Angle (Deg) | 120 |
| 11 | Vertical Viewing Angle (Deg) | 120 |
| 12 | Brightness (cd/m2) | 7000 |
| 13 | Grey Scale | 16bits |
| 14 | Refresh Rate (Hz) | 1920 |
| 15 | Cabinet Resolution (PX x PX) | 96x96 |
| 16 | Cabinet Max Power Consumption (W) | 691 |
| 17 | Cabinet Average Power Consumption (W) | 230 |
| 18 | Cabinet Size (mm x mm) | 960x960 |
| 19 | Cabinet Weight (Kg) | 50 |
| 20 | Cabinet Thickness (mm) | 150 |
| 21 | Cabinet Material | Steel/Aluminum |
| 22 | Color (M) | >16.7 |
| 23 | Input Voltage (V) | AC 110V~220V+/-10% |
| 24 | Refresh Frame Frequency (Hz) | 60 |
| 25 | Protection Level | IP65 |
| 26 | Working Environment | Outdoor |
| 27 | Working Temperature (ºC) | "-30°- +60° |
| 28 | Operation humidity (RH) | 10%-95% |
| 29 | Certificates | CCC ,CE,RoHS |

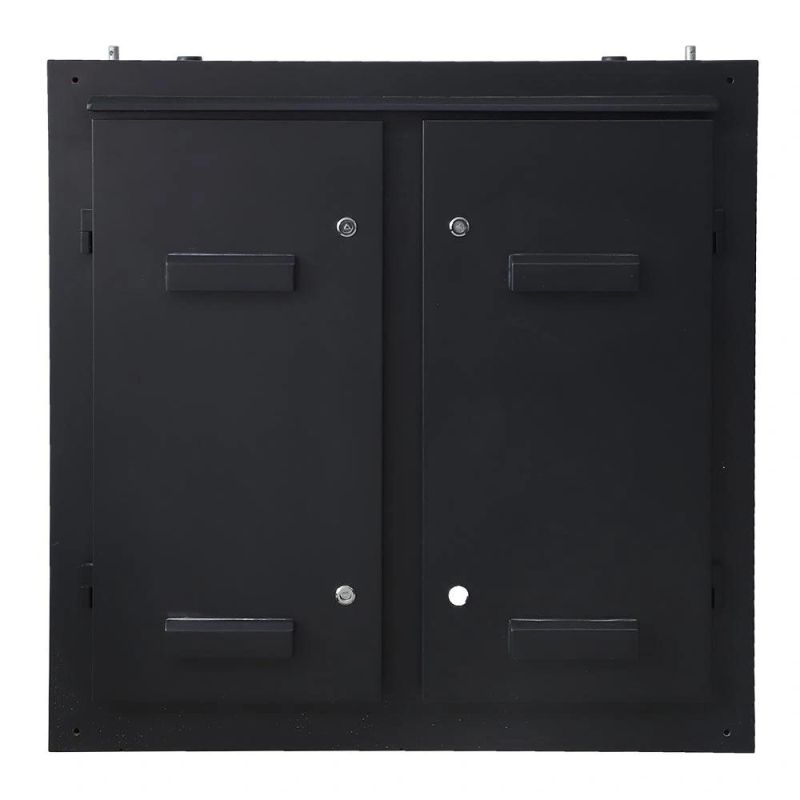

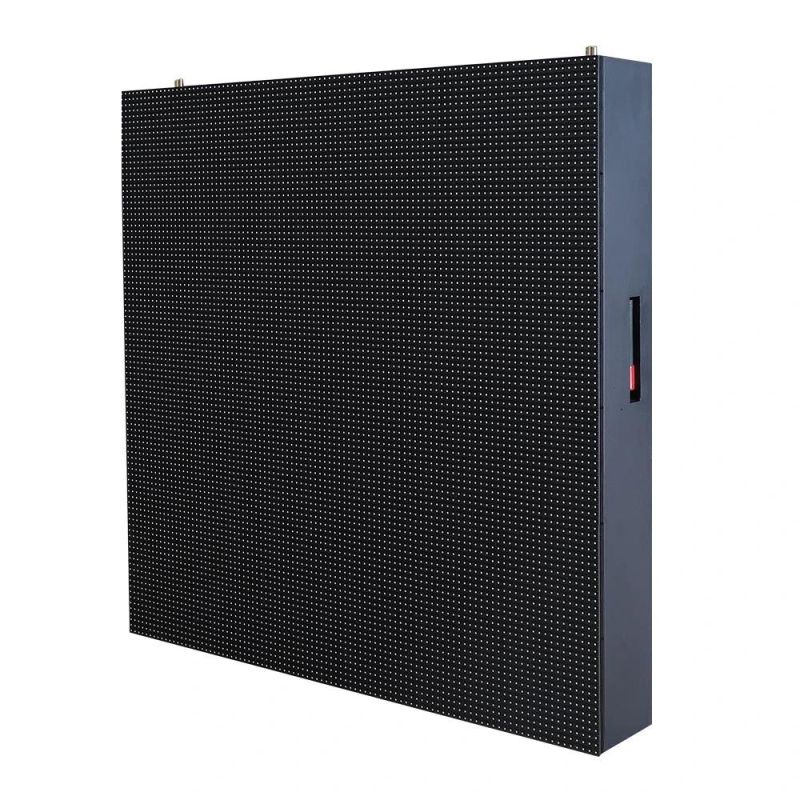

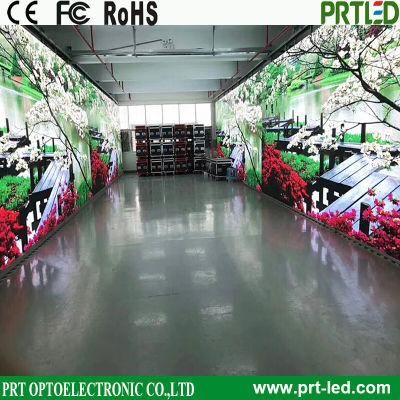

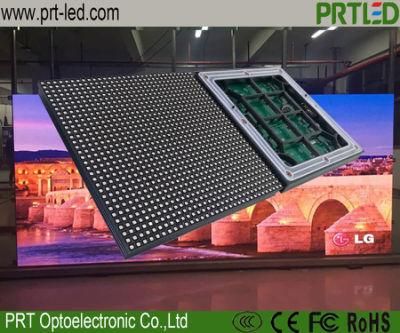

LED Cabinet in Stock

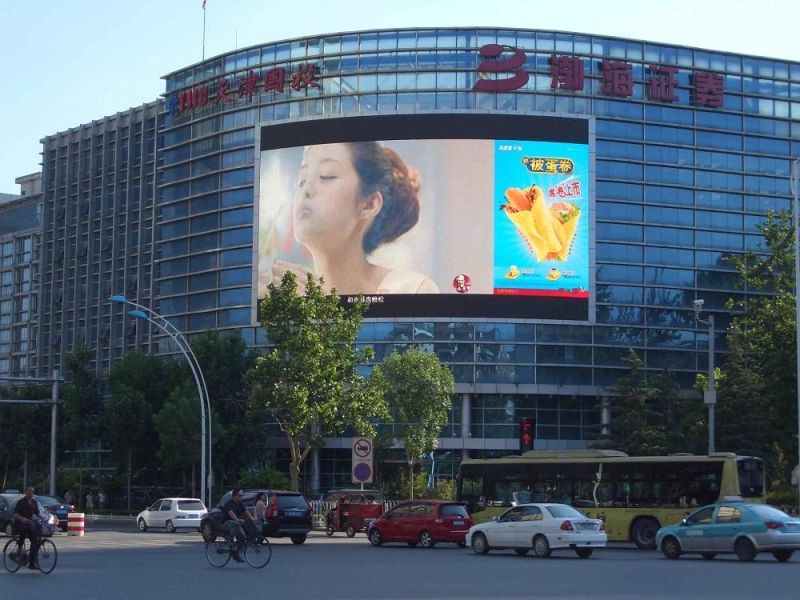

Wall-mounted on the building :

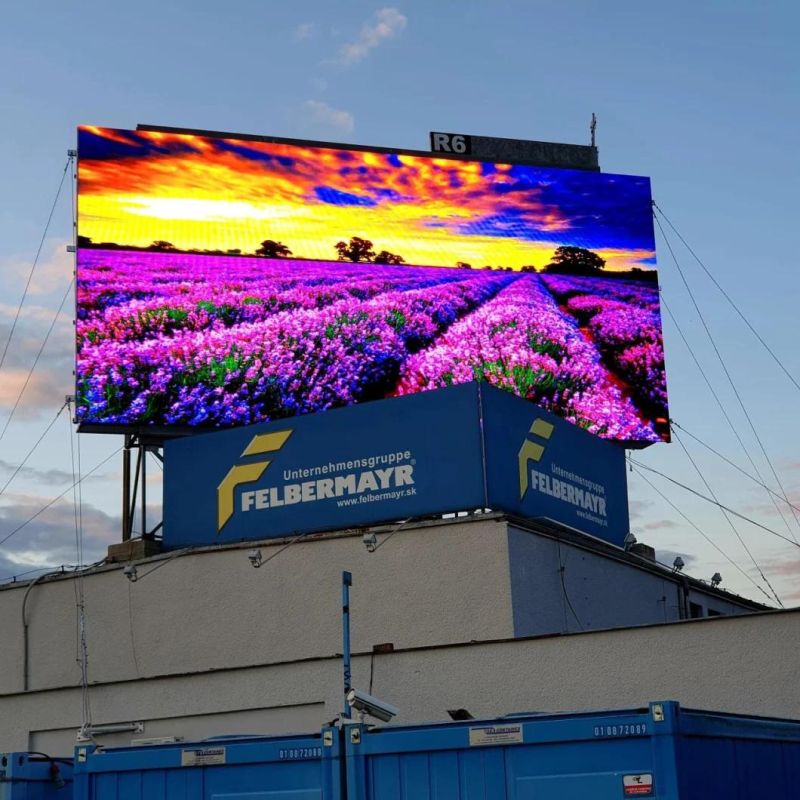

Installed on the roof :

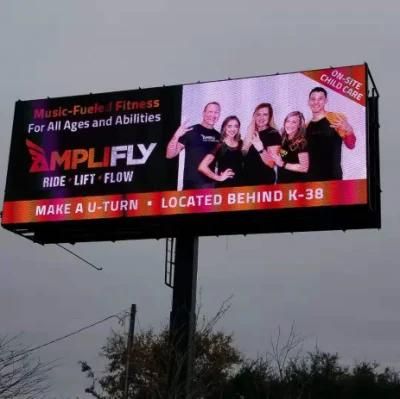

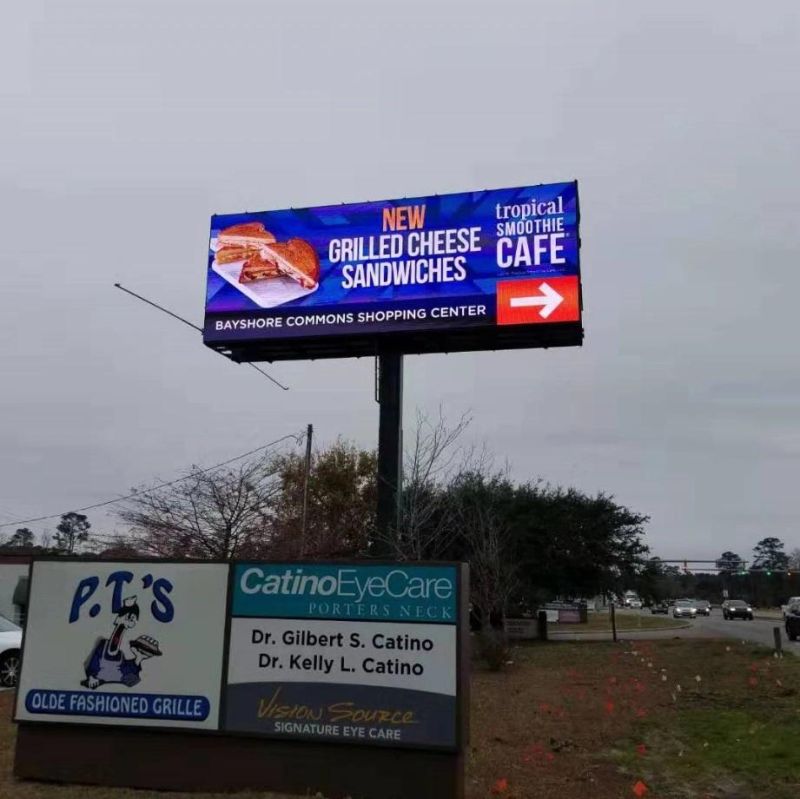

Unipole standing on the roadside :

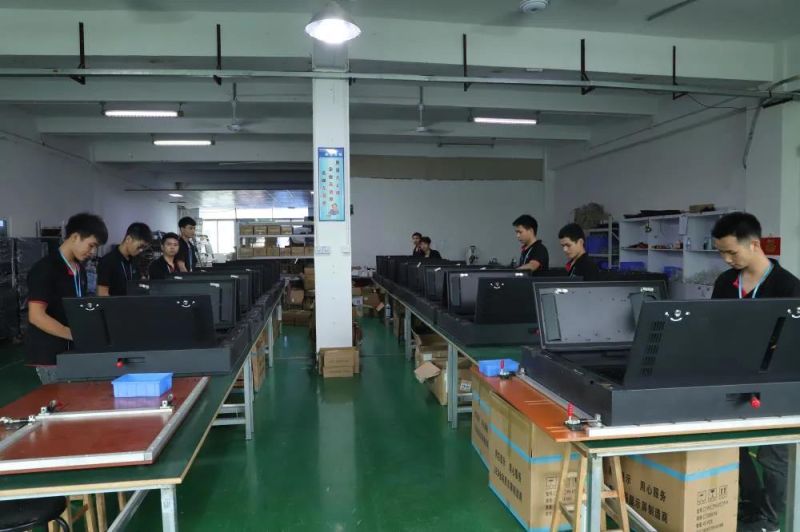

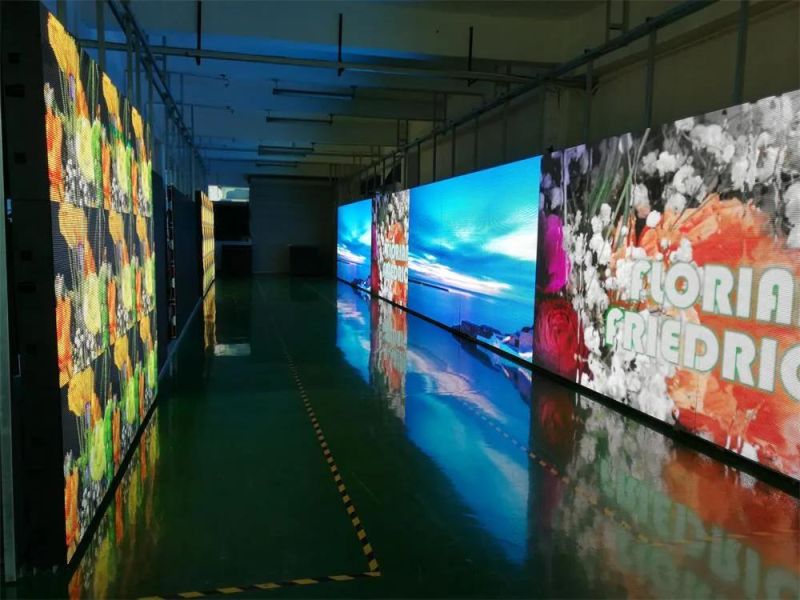

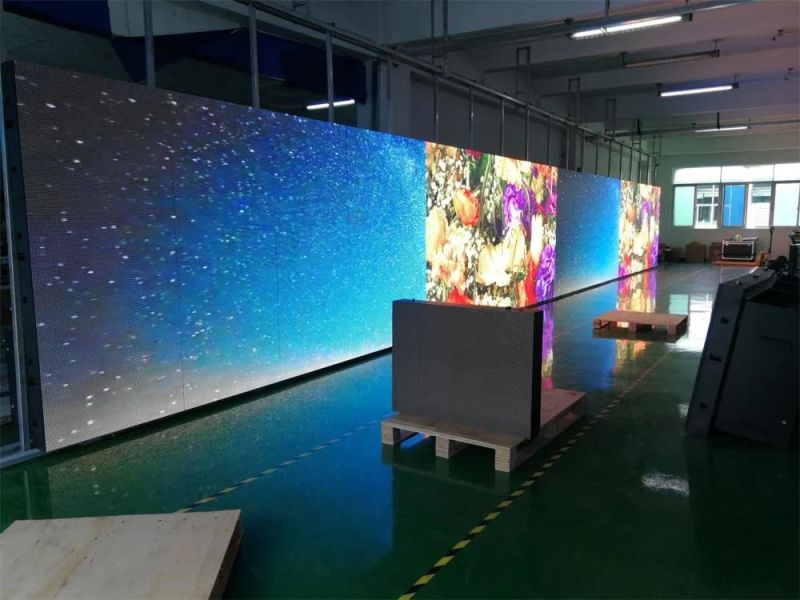

Factory photos :

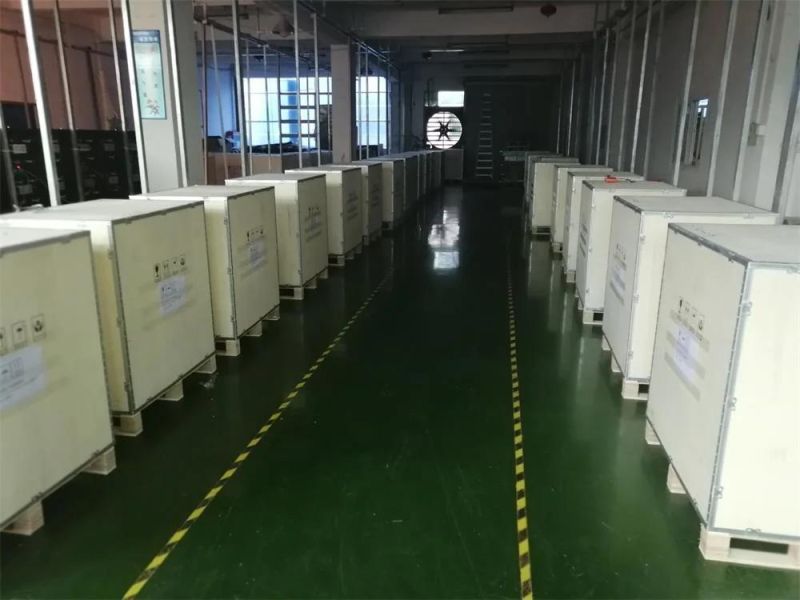

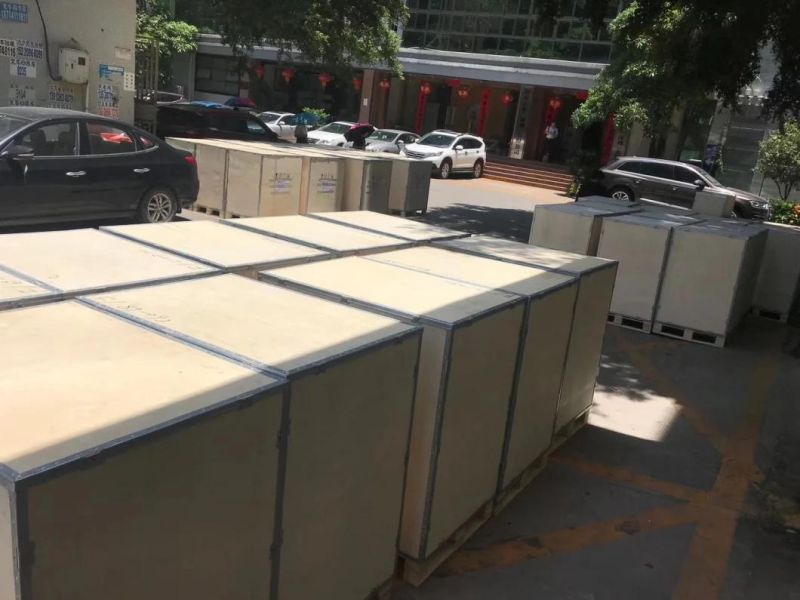

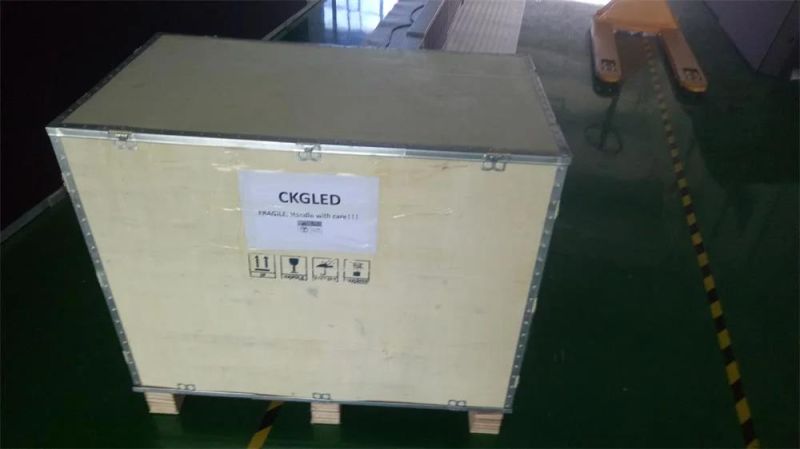

Package and Shipment:
Certificates:
