• Model NO.：6mm
• Pixel Density：27777dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：192X192mm
• Module Resolution：32X32dots
• Cabinet Size：1152X1152X150mm
• Cabinet Resolution：192X192dots
• Screen Brightness：6000nits
• Protection Grade：IP65
• Compliance：Ce, RoHS , CCC,ETL,FCC
• Input Power：100-240V ~ 50-60Hz
• Transport Package：Plywooden Case
• Specification：1152x1152mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Pixel pitch6mmPixel configuration 1R1G1BModule size192*192mmPixel density27777dots/sqmModule pixel32*32dotsModule resolution1024pixelsDriving method1/8 constant driving

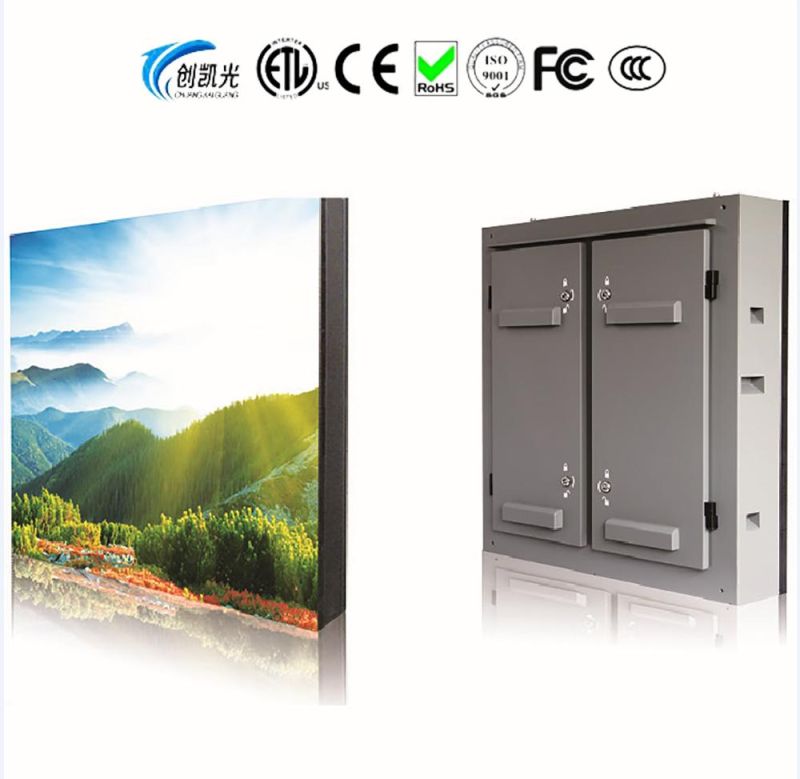

Cabinet specifications:Cabinet size1152mm*1152mm*150mmModule Qty36pcsCabinet resolution192*192dotsCabinet pixel36864dotsCabinet weight56kg power consumption(w/sqm)AVE.300 / MAX.900
Screen parameters:No.ParameterSpecification1Pixel Pitch6mm2Pixel Density27777pix/sqm3LED TypeSMD35354Viewing Angle(H)140° / (V)140°5Brightness≥6000cd/sqm6Drive Method1/8 scanning7Driving ICMBI51248Grey scale14bits9Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤50kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption300W/sqm16Max. Power Consumption900W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

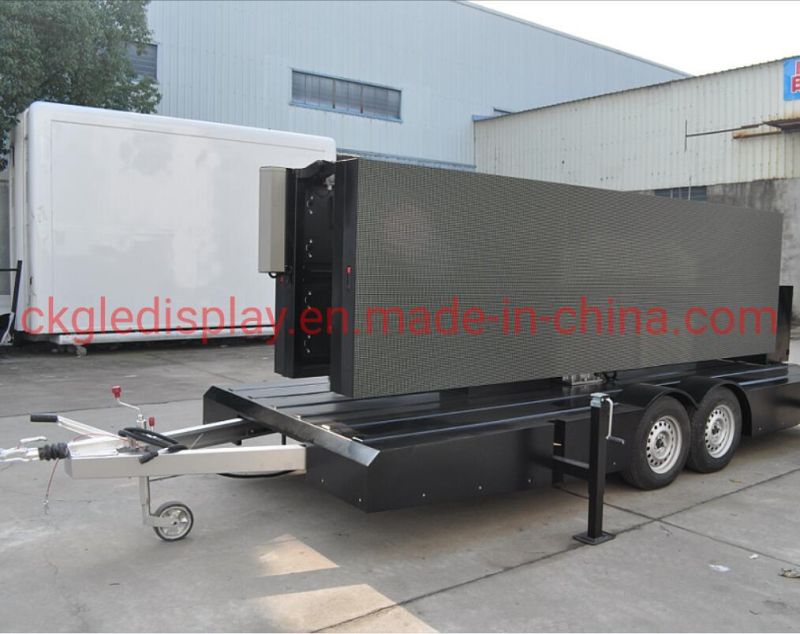

PRODUCT DETAILS:
