Basic Info.

Model NO. SJ-B75/100 Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Standard Wooden Case or Stretch Film Package Specification CE/ISO9001 Trademark Changyin Origin China (Wenzhou) HS Code 84773000 Production Capacity 1000sets/Year

Product Description

Feature:

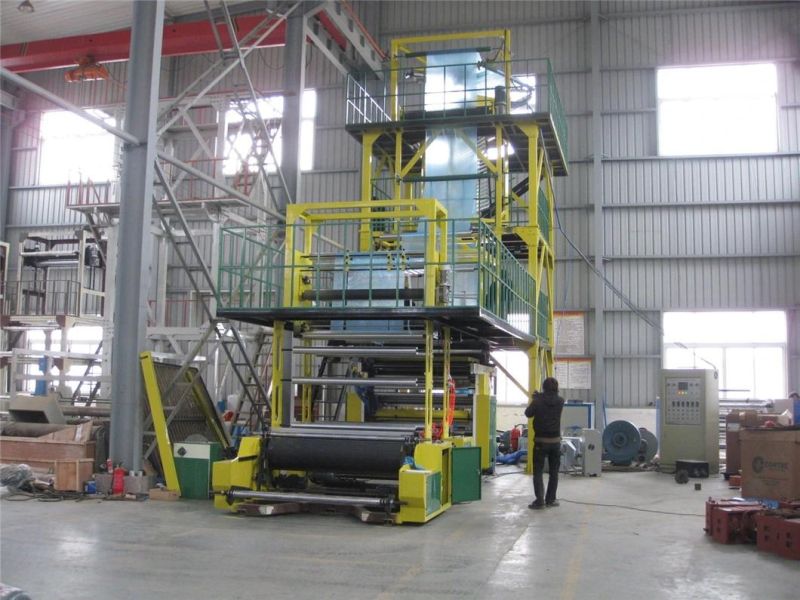

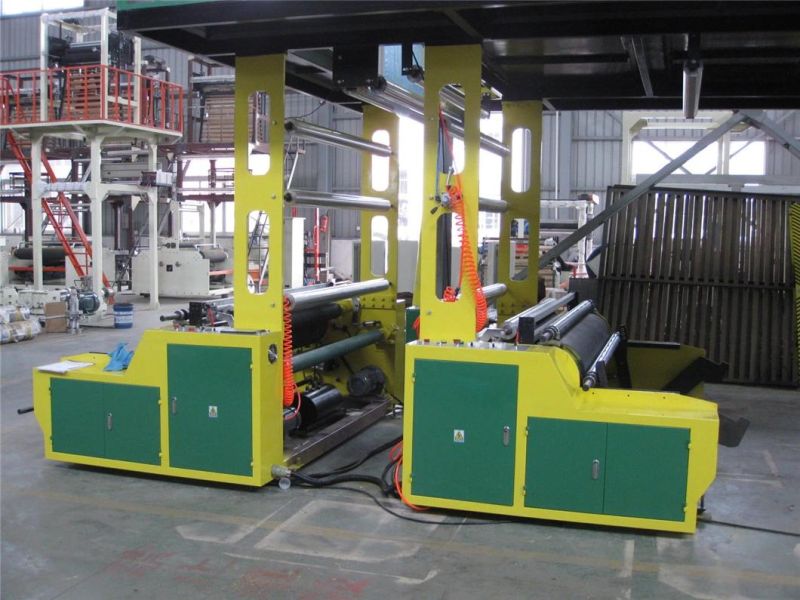

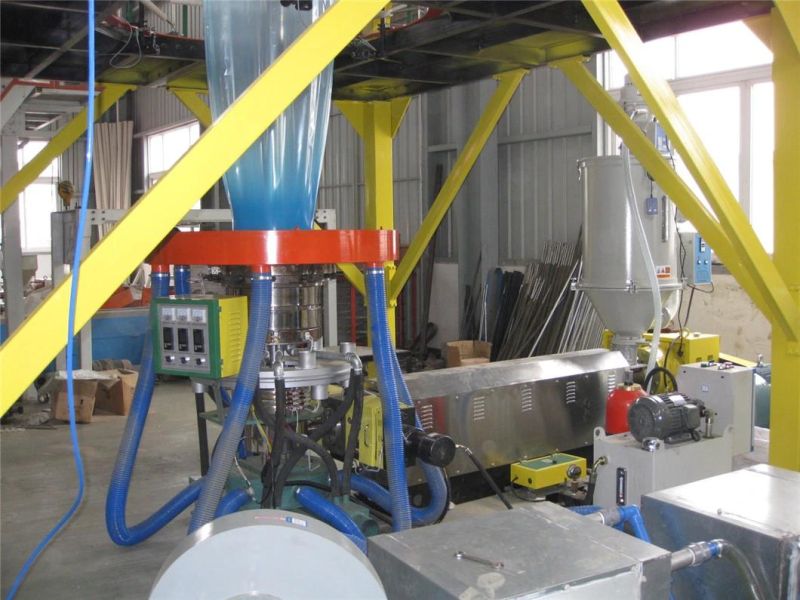

SJ-B FILM BLOWING MACHINE can produce ground, shack and package film of LDPE, HDPE, LLDPE. Extruder barrel and screw are made of high quality alloy steel, nitrided and manufactured by precision machining. There are provided with very hard surface to resist corrosion and adrasion. Temperatre is regulated automatically, reliably and accurately. It is adopted with surface friction double station winding device. Automatic measuring length, simple in operation.

Model	B75	B100
Diameter of screw(mm)	φ75	φ100
L/D	28:1	28:1
Reduced diameter of film(mm)	700-1500	1200-2000
Single-face Thickness of film(mm)	0.008-0.10	0.008-0.10
Max.output (kg/h)	80	100
Power of main motor (kw)	30-37	45-55
Power of Traction motor (kw)	1.5	2.2
Heating Power (kw)	27	34
Outline diameter (L×W×H) (mm)	7000X2500X6000	7100X3500X7800
Weight (T)	3.5	4.5
