Basic Info.

Model NO. ZIP Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Wrapping Film Specification CE Trademark Changyin Origin China HS Code 84773090 Production Capacity 300sets/year

Product Description

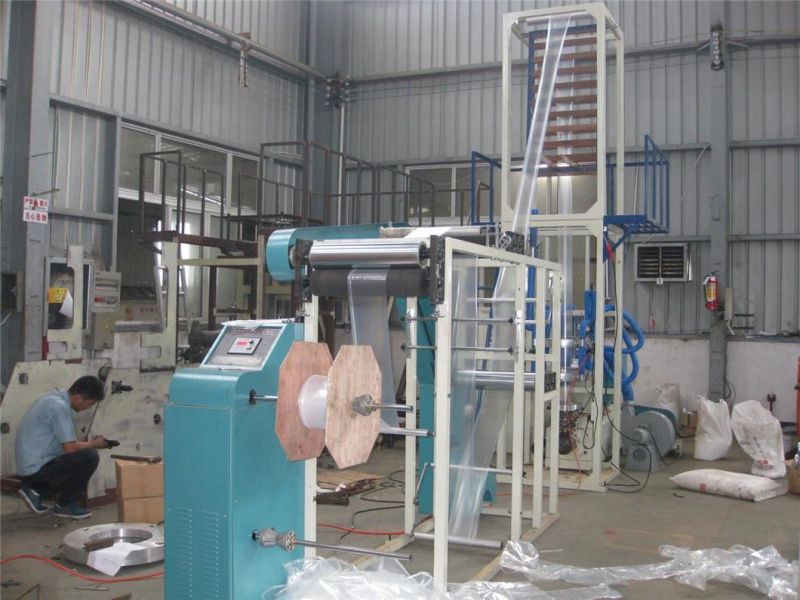

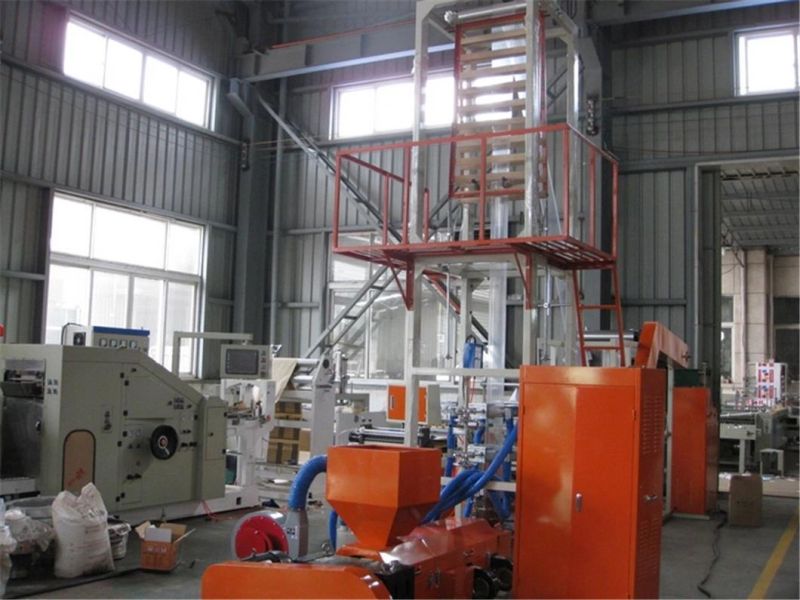

Based on the Film Blowing Machine, this machine is designed creatively. With an embossing button automatic sealing zip at the very opening, a bag can be produced automatically freely. The main processor adopts frequency conversion speed governing, photoelectric control, air filling automatically, with a high content of science and technology and power applicability.

We use low density polyvinyl chloride LDPE as our raw material and our products can be used to package food, fruit, medicine, documents, industrial products, clothing, fabric and industrial products for civil use.


Model: Zip-55

Raw MaterialL: LDPE(density0.921)

Width of Bag: 50-450mm

Thickness of Bag: 0.03-0.10mm

Diameter of Screw: Φ 55

L/D: 28: 1

Power of Main Motor: 5.5kw

Power of Auxiliary Machine: 0.75kw

Heater: 12kw

Cooling: 1.5kw

Power of Whole Machine: 25kw

Voltage: 50 Hz-60 Hz, 380V

Output: 5-30kg/h

Mould Head: 70, -450

Dimension(L& W& H)mm: 6000x1600x4500

Weight: 1.5T
