• Model NO.：GJB Series
• Name & Description：Gjb1-25 High Pressure Small Scale Fruit Juice PRO
• Product Material：Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• OEM：Ok

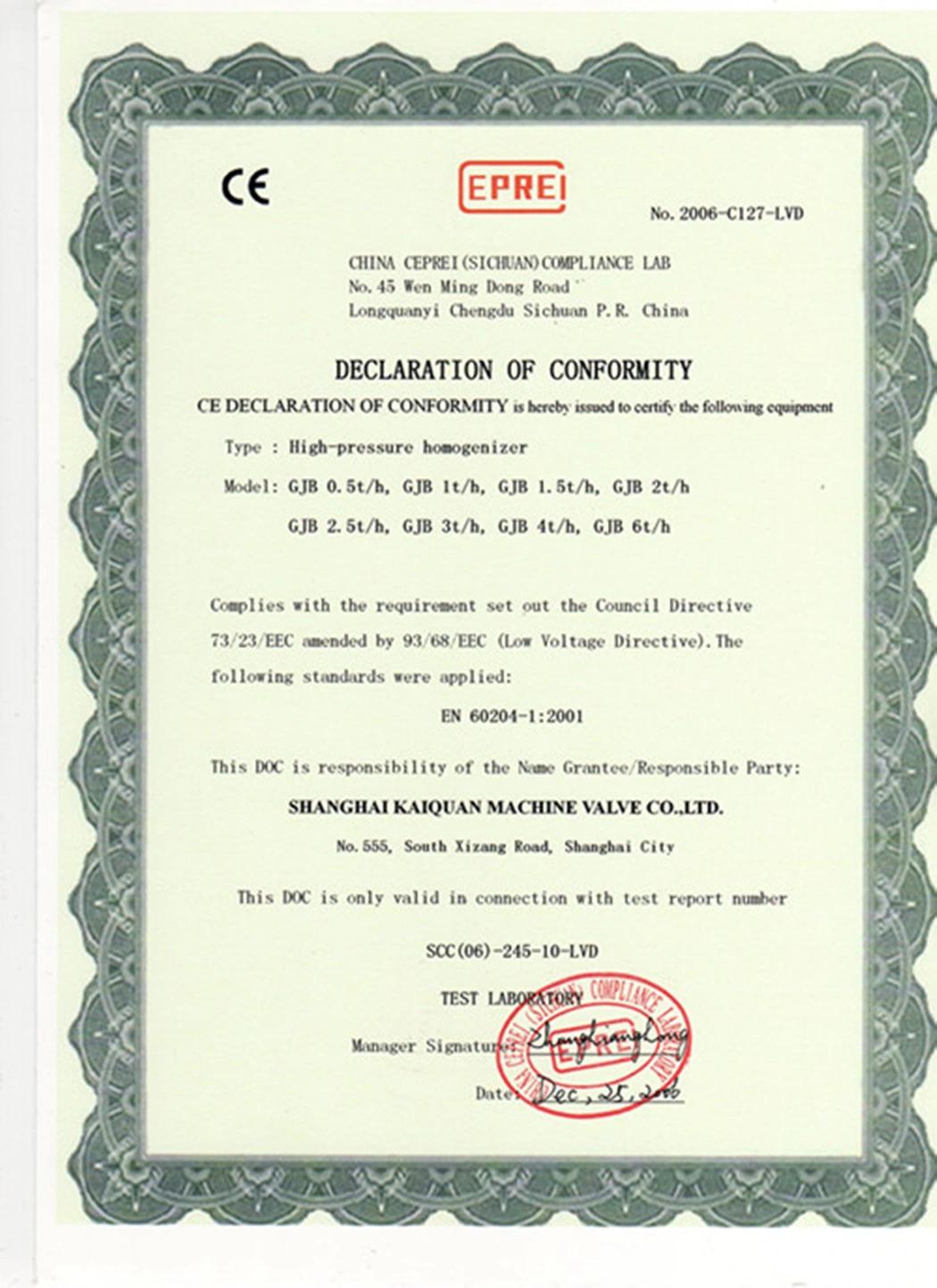

• Certificate：Ce ,CSA
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：3phases
• Homogenizersize：Depending The Capacity
• Delivery：10 Days
• Voltage：Make It to Your Order .
• MOQ：1set
• Spare Parts：Available
• Stage：Two Stage

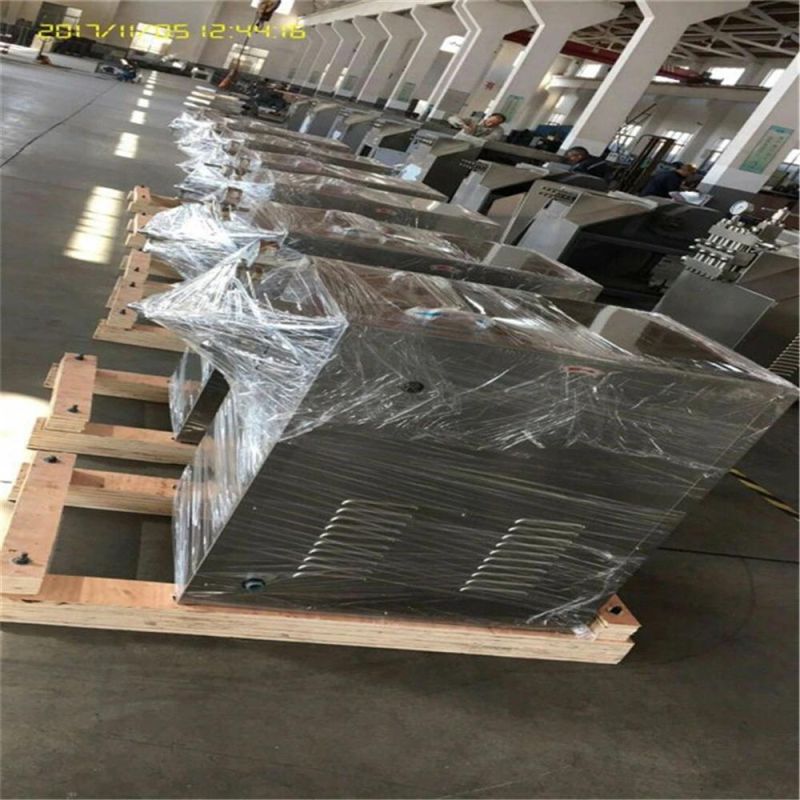

• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name & Description Gjb1-25 High Pressure Small Scale Fruit Juice PRO Product Material Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar OEM Ok Certificate Ce ,CSA Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream High Pressure Homogenizer Customized Electricity Motor Motor 3phases Homogenizersize Depending The Capacity Delivery 10 Days Voltage Make It to Your Order . MOQ 1set Spare Parts Available Stage Two Stage Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

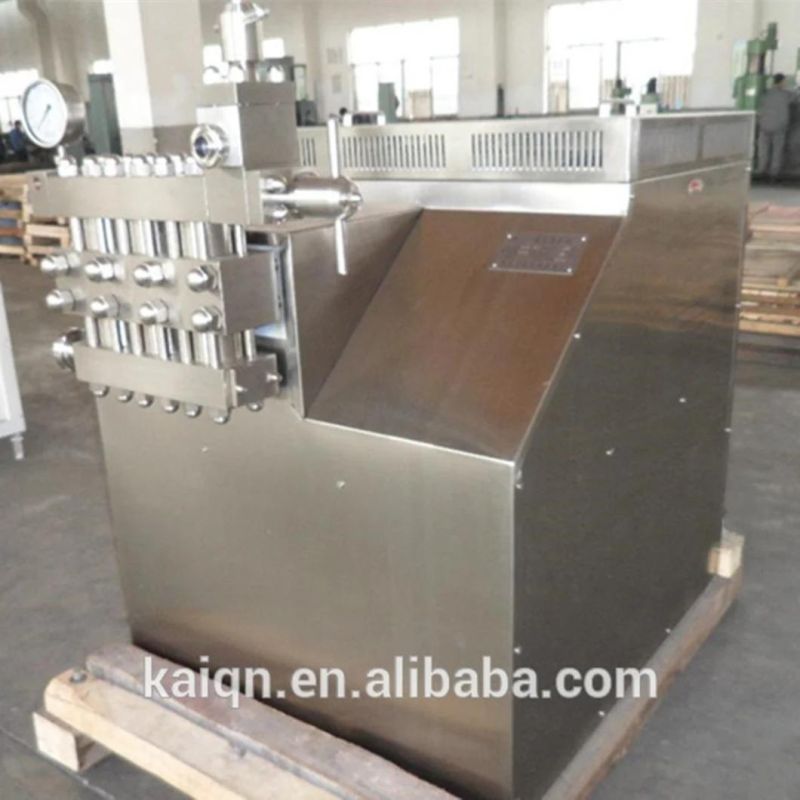

GJB1-25 High Pressure Small Scale Fruit Juice Processing Homogenizer

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

GJB1-25 High Pressure Small Scale Fruit Juice Processing Homogenizer
