• Model NO.：GJB Series
• Name and Description：1000L Small Customized Vacuum Homogenizer for Dair
• Motor Power：5.5-110kw
• Material：Stainless Steel 304 , 316
• Processing Pressure：25~100MPa
• Motor Brand：Siemens ,ABB ,China Brand
• Homogenizer：Used for Milk, Juice, Yogurt
• Homogenizer Pressure：160bar to 240bar Adjustable
• Capacity：500lph, 1000lph,20000lph
• Homogenizer Function：Homogenizing Liquid
• Delivery：10 Days
• Orign：Shanghai China
• Packing：Wooden Box
• Warranty：One Year
• MOQ：1set
• Spare Parts：Available
• Transport Package：Standard Export Wood Box
• Specification：500LPH TO 20000LPH
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：200sets Per Month

Basic Info.

Model NO. GJB Series Name and Description 1000L Small Customized Vacuum Homogenizer for Dair Motor Power 5.5-110kw Material Stainless Steel 304 / 316 Processing Pressure 25~100MPa Motor Brand Siemens /ABB /China Brand Homogenizer Used for Milk, Juice, Yogurt Homogenizer Pressure 160bar to 240bar Adjustable Capacity 500lph, 1000lph,20000lph Homogenizer Function Homogenizing Liquid Delivery 10 Days Orign Shanghai China Packing Wooden Box Warranty One Year MOQ 1set Spare Parts Available Transport Package Standard Export Wood Box Specification 500LPH TO 20000LPH Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 200sets Per Month

Product Description

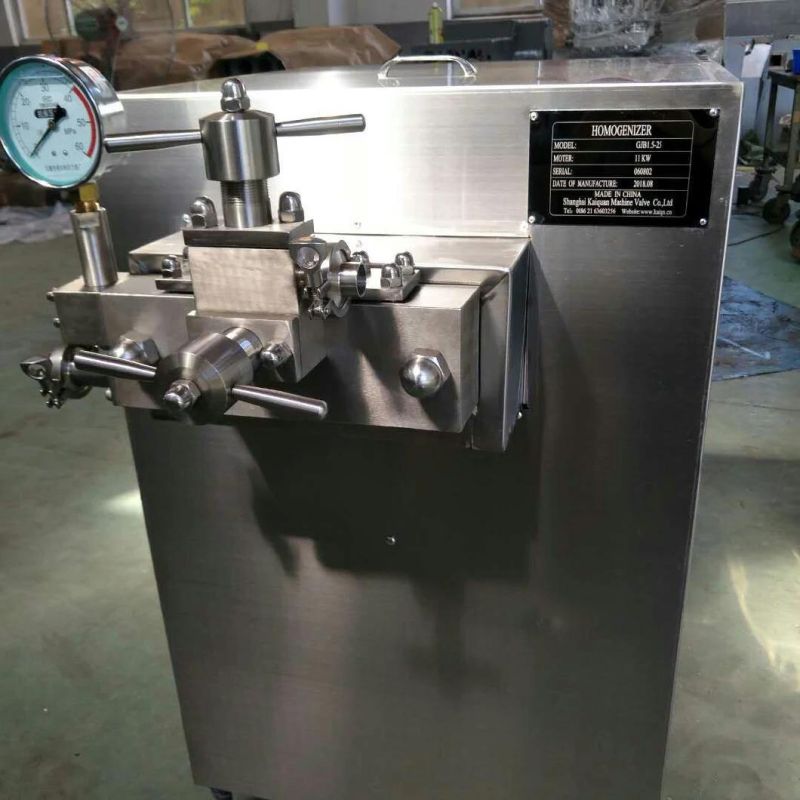

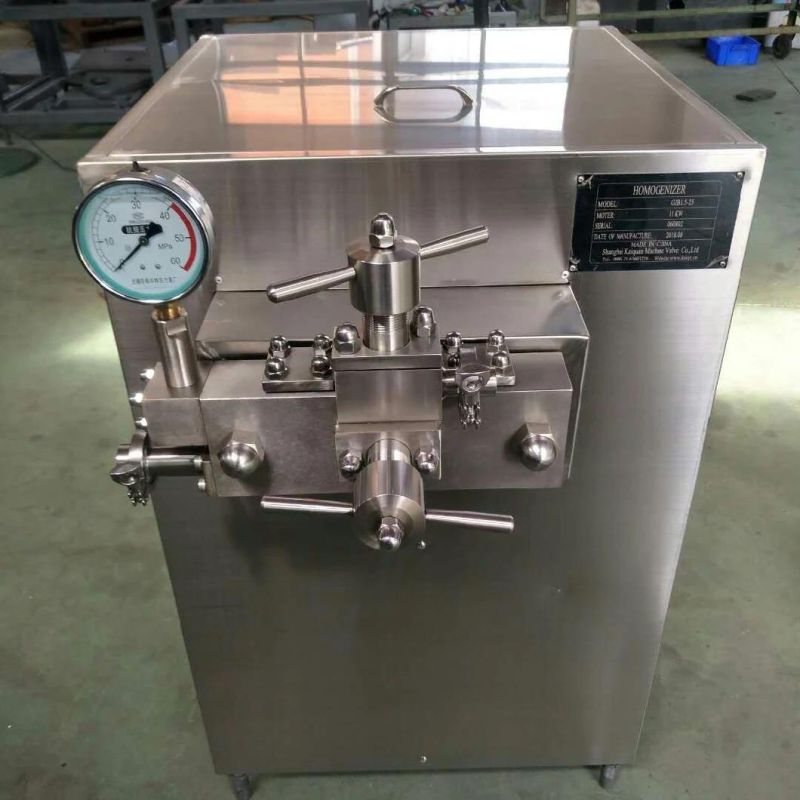

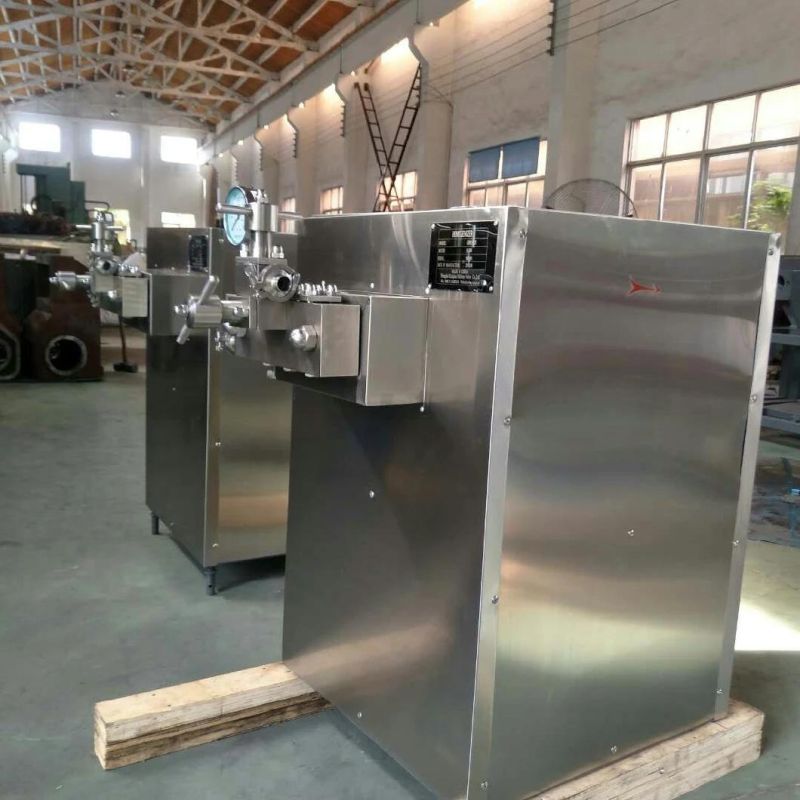

1000L Small Customized Vacuum Homogenizer For Dairy Industry
Milk Yogurt High Pressure Homogenizer (250bar)
General Information


GJB high pressure homogenizer series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, highly presses the liquid, fully mixes and refines the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nice, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Do not use the product to handling the suspending liquid or the high viscosity liquid. (viscosity less than 0.2 PA. S)

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

1000L Small Customized Vacuum Homogenizer For Dairy Industry .
