• Model NO.：GJB Series
• Names：Bar MPa Psi Fruit Juice Tomato Milk Liquid Homogen
• Product Material：Stainless Steel 304 , 316
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• OEM：Accept
• Certificate：Ce Certificate
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：Make It to Your Order
• Homogenizersize：Depending The Capacity
• Delivery：10 Days
• Packing：Wooden Box
• MOQ：1set
• Warranty：One Year
• Spare Parts：Available
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Names Bar MPa Psi Fruit Juice Tomato Milk Liquid Homogen Product Material Stainless Steel 304 / 316 Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream Capacity 500L/H--10000L/H Pressure 250bar to 700bar OEM Accept Certificate Ce Certificate High Pressure Homogenizer Customized Electricity Motor Motor Make It to Your Order Homogenizersize Depending The Capacity Delivery 10 Days Packing Wooden Box MOQ 1set Warranty One Year Spare Parts Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Bar Mpa PSI Fruit Juice Tomato Milk Liquid Homogenizer Price .
Sanitary Stainless Steel High Pressure Juice Milk Stage Homogenizer

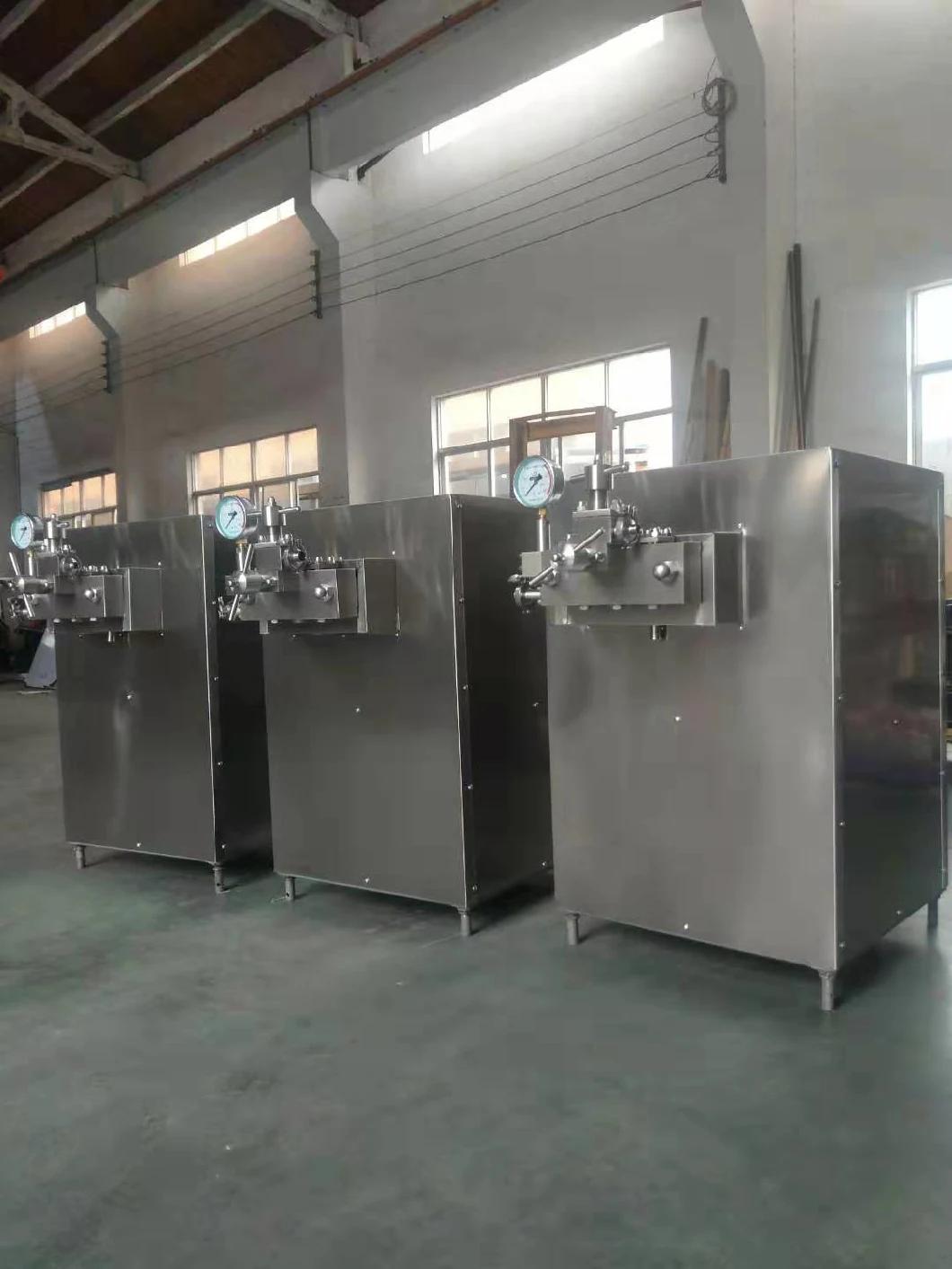

600 bar Homogenizer Homogenizing Machine

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Bar Mpa PSI Fruit Juice Tomato Milk Liquid Homogenizer Price
