Full Automatic Continuous-Rolled Bag Making Machine

Chengdu XYLP Trading Co., Ltd.

Base Info

Description

ModelRFQ-400RFQ-500RFQ-600RFQ-700RFQ-800RFQ-900
width25-500mm45-600mm50-700mm50-800mm55-999mm60-999mm
length30-400mm30-500mm60-600mm70-700mm80-800mm90-900mm
Bag-making speed30-240pcs/min30-240pcs/min30-240pcs/min30-240pcs/min30-240pcs/min30-240pcs/min
Accuracy±0.3mm±0.3mm±0.3mm±0.3mm±0.3mm±0.3mm
Total power3.5kw3.5kw3.5kw3.5kw3.5kw3.5kw
Weight of machine600kg700kg800kg900kg1000kg1100kg
Overall dimensions(LxWxH)3500x900xl300mm3500xl000xl300mm3500xl100xl300mm3500xl200xl300mm4000xl300xl300mm4000xl400xl300mm

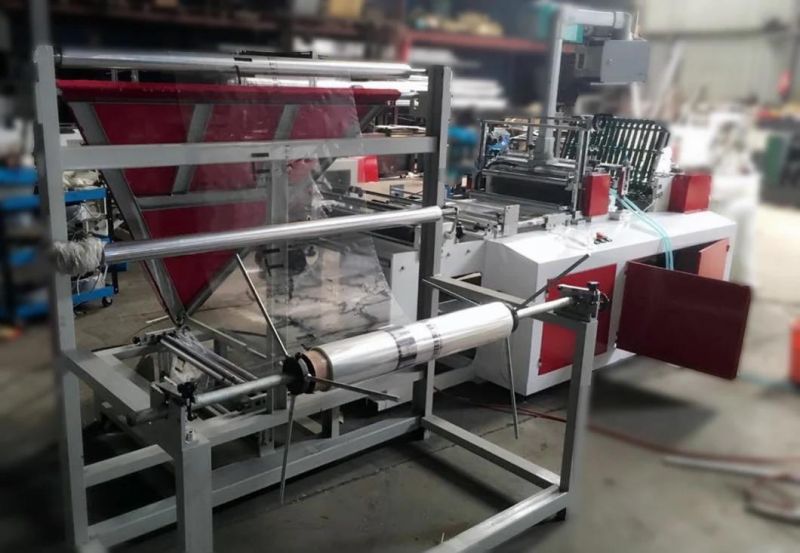

Full Automatic Continuous-Rolled Bag Making Machine
Full Automatic Continuous-Rolled Bag Making Machine
Full Automatic Continuous-Rolled Bag Making Machine
This machine is specially-designed point-cut rolling dual-purpose one for vest & flat bags.
1.Computer controlled, the step (servo) setting length system reduces the sealing-cutting
  dimensions errors.
2.Based on drum rotation continuous seal, long sealing time and low Temperature Control,
  so Would't damage sealing, to ensure the quality of the bag.
3.Photoelectric eyes track help make the position of flgure of printing bags accurate,
  computer numerical control can bee selected to adjust the length of bag, it will
  top and alarm if something wrong with the printing bags.
