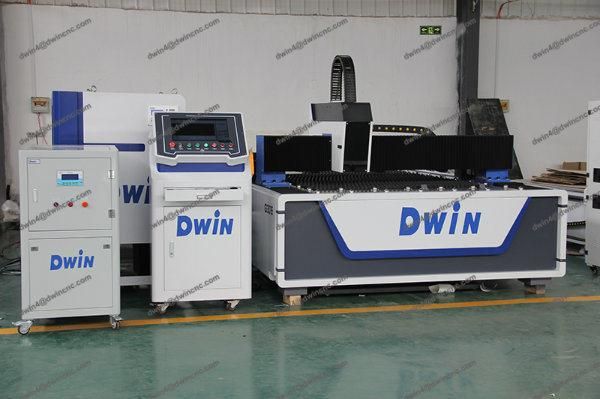

Stainless Carbon Steel Iron Metal CNC Fiber Laser Cutting Machine
Yumyth Electronic Tech Co., Limited- Cooling System：Air Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Desktop
- Laser Classification：Free Electron Laser
- Laser Technology：Laser Control Fault Cutting
Base Info
- Model NO.：DW1325
- Name：Fiber Metal Laser Machine
- Type：Metal Laser Cutting Machine
- Laser Wavelength：1064nm
- Cutting Size：3000X1500mm or Customized
- Geometry Accuracy：0.03mm,1000mm
- Power Ratings：Three-Phase AC 380V 50Hz
- Laser Power：300W,500W,1000W,2000W,
- Certification：Ce, ISO, FDA
- Machine Warranty：2 Years
- Control Configuration：Cypcut Control System
- Transport Package：Plywood Box, Free From Fumigation
- Specification：Machine can be customized
- Trademark：Dwin
- Origin：Jinan City, China
- HS Code：8459100009
- Production Capacity：500 Sets Every Year
Description
Basic Info.
Model NO. DW1325 Name Fiber Metal Laser Machine Type Metal Laser Cutting Machine Laser Wavelength 1064nm Cutting Size 3000X1500mm or Customized Geometry Accuracy 0.03mm/1000mm Power Ratings Three-Phase AC 380V 50Hz Laser Power 300W/500W/1000W/2000W/ Certification Ce, ISO, FDA Machine Warranty 2 Years Control Configuration Cypcut Control System Transport Package Plywood Box, Free From Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8459100009 Production Capacity 500 Sets Every YearProduct Description
Stainless Carbon Steel Iron Metal CNC Fiber Laser Cutting Machine
Advantages of the Fiber laser cutter:
2.1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
2.2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficiency.
2.3. Equipped with exhaust device, have good exhausting effect and little pollution.
2.4. Small occupied area, high system integration, convenient to operate and maintenance,
Machine Technical parameters
| No. | Description | Parameter |
| 1 | Model | Fiber laser metal cutting machine |
| 2 | Work table | saw tooth work table |
| 3 | Working area (mm) | 1300x2500 mm |
| 4 | Laser power (walts) | Cyrus 500w ( 1000w/ 2000w optional) |
| 5 | Laser type | AC220 50HZ |
| 6 | Position speed | 2000mm/min |
| 7 | Locating precision | <0.01mm |
| 8 | Resolution ratio | ≤ 4500dpi |
| 9 | Control configuration | Cypcut control system |
| 10 | Data transfer interface | USB(offline) |
| 11 | Cooling way | Water cooling CW 6100 |
| 12 | Compatible Software | CorelDraw, Photoshop, AutoCAD |
| 13 | Machine packing | Veneer case |
| 14 | Machine warranty | 2 years and free maintance for whole life |

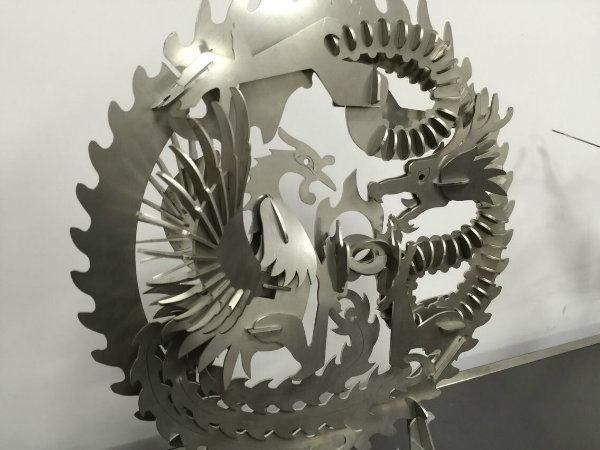

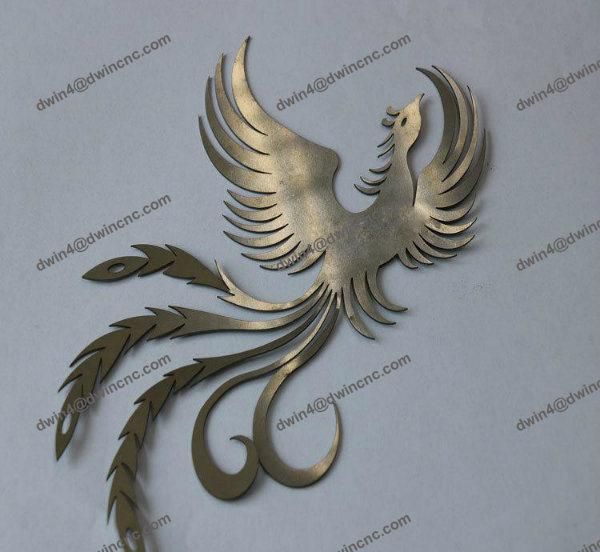

Fiber Laser cutting Machine Application:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries. Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
