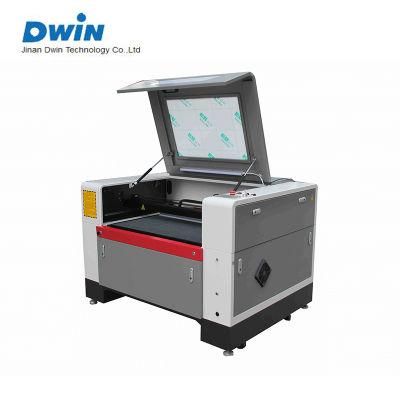

• Model NO.：DW960
• Machine Application：Non Metal, Such as Wood, Acrylic, MDF, Leather etc
• Machine Warranty：18 Months
• Cutting Thickness：0-30mm
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf
• Control Configuration：Redcam
• Structure Type：Desktop
• Laser Technology：Laser Flame Cutting
• Machine Name：CO2 Laser Cutter
• Brand Name：Dwin
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine size can be customized
• Trademark：Dwin
• Origin：China
• HS Code：8456100090
• Production Capacity：50sets Per Month

1ModelDW960 laser engraving machine used2Working area90cm*60cm / 35in*24in (L*W)3Laser power40W/60W/80W4Laser typeCO2 sealed laser tube,water-cooled5Engraving speed0-60000mm/min6Cutting speed0-10000mm/min7Power supply220V±10% /50HZ , 110V±10%//60HZ8Min. shaping characterLetter 1.0 x 1.0mm9Graphic format supportedBMP, PLT, DST, DXF, AI,CDR10Software supportedCorelDraw, PhotoShop, AutoCAD11Laser Output Control1-100% software setting12Highest Scanning Precision2500DPI13Resolution ratio< 0.01mm14Location precision<0.01mm15Working temperature5°C-40°C16Operating humidity5%-95%(without condensed water)17Equipment Dimension1420mm*1100mm*1070mm/57in*43in*42in (L*W*H)18Net Weight300kg19Optional partsUp-down worktable, Red light pointer, Auto focus, Rotary device



Applicable material of co2 laser machine
This type machine is a kind of laser engraving machine system equipped with Co2 laser tube,it is used to engrave on acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .
