• Model NO.：DW20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Certification：Ce, ISO, FDA
• Voltage：AC220V,50Hz
• Laser Power：10W 20W
• Laser Type：Fiber Laser
• Cooling Way：Air Cooling
• Machine Warranty：2 Years for Machine Body
• Marking Lines：1-10 Marking Lines
• Minimum Line Width：0.01mm
• Minimum Character：0.15mm
• Operating Temperature：5-40ºC
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine can be customized
• Trademark：Dwin
• Origin：Jinan City, China
• HS Code：8656100009
• Production Capacity：500 Sets Every Year

Basic Info.

Model NO. DW20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certification Ce, ISO, FDA Voltage AC220V/50Hz Laser Power 10W 20W Laser Type Fiber Laser Cooling Way Air Cooling Machine Warranty 2 Years for Machine Body Marking Lines 1-10 Marking Lines Minimum Line Width 0.01mm Minimum Character 0.15mm Operating Temperature 5-40ºC Transport Package Plywood Box, Free of Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8656100009 Production Capacity 500 Sets Every Year

Product Description

30W 50W Fiber Laser Marking Engraving Machine with Factory Price




Machine advantages
Fiber laser marking machine is the new generation laser marking system. With advanced laser techniques our company adopts fiber laser to output laser and achieves to marking function after high speed scanning oscillating mirror system. It has higher photoelectrical transfer efficiency. This model adopts air cooling way and the machine whole structure is small, the output beam is in good quality and high It is widely reliability.

Technical Data:

No.	Description	Parameter
1	Marking area	110*110mm(option:150*150mm,200*200mm,300*300mm)
2	Laser power	10W (20w/30w/50w,etc for option)
3	Marking speed	≤8000mm/S
4	Max.Marking Depth	≤0.4mm
5	Laser Wavelength	1064nm
6	Marking lines	1-10 marking lines(in the marking area)
7	Minimum line width	0.01mm
8	Minimum character	0.15mm

Applicable industry:
DWIN Fiber laser marking series machine is widely used in metal and non-metal fields,such as automatic parts industry, medical equipment, electronic components, IT industry, hardware industry, precision apparatuses, jewelry, crafts, high-low-boltage appliances, packaging indstry,etc.

Applicable material:
DWIN Fiber laser marking machine is professional for both metal and non-metal material marking. Such as stainless steel, carbon steel,aluminum,copper, chrome, anodized aluminum,silicon wafer, etc. as well as lots of non metal materials, like ceramic, rubber, plastic, leather, cardboard, etc.

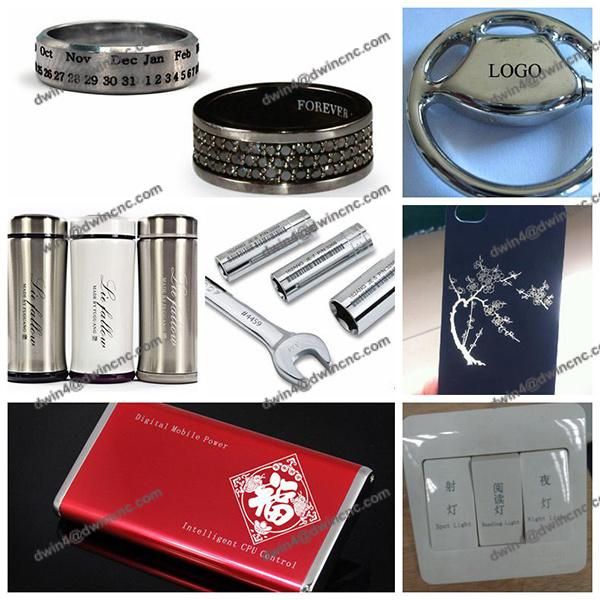

Machine samples
