• Model NO.：GJB Series
• Name：Ce Certificated Milk Ice Cream Yogurt Juice Custo
• Material：Stainless Steel 304 ,316
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Capacity：500L,H--10000L,H
• Pressure：250bar ,25MPa

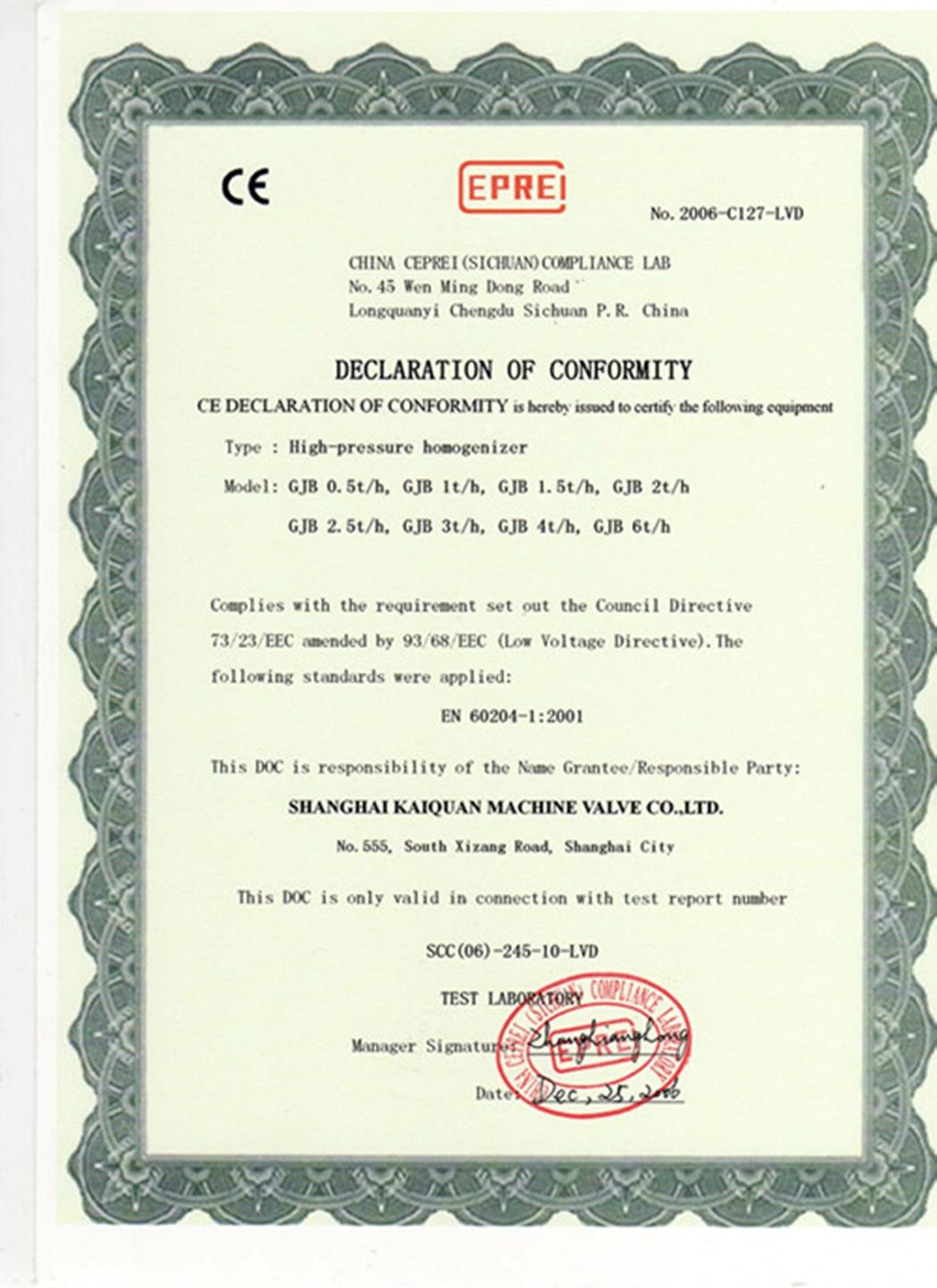

• Certificate：Ce Certificate
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：Make It to Your Order .
• Homogenizer Pressure：Two Stage
• Working Life：10 Years .
• Packing：Wooden Box
• MOQ：1set
• Spare Parts：Avaiable
• Motor Brand：Siemens ,ABB,China Brand
• Warranty：One Year
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name Ce Certificated Milk Ice Cream Yogurt Juice Custo Material Stainless Steel 304 /316 Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream Capacity 500L/H--10000L/H Pressure 250bar /25MPa Certificate Ce Certificate High Pressure Homogenizer Customized Electricity Motor Motor Make It to Your Order . Homogenizer Pressure Two Stage Working Life 10 Years . Packing Wooden Box MOQ 1set Spare Parts Avaiable Motor Brand Siemens /ABB/China Brand Warranty One Year Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

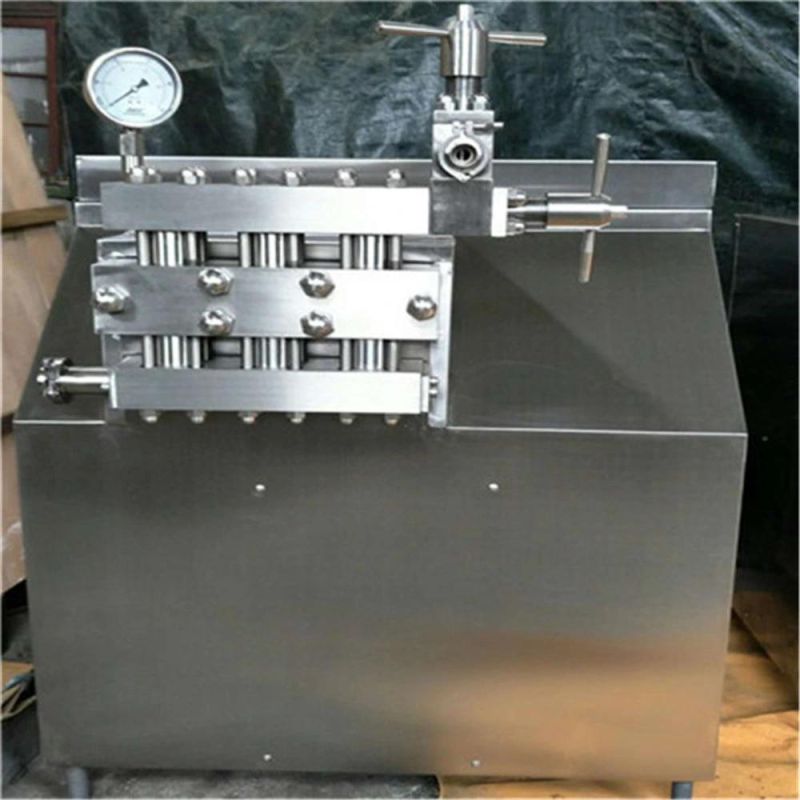

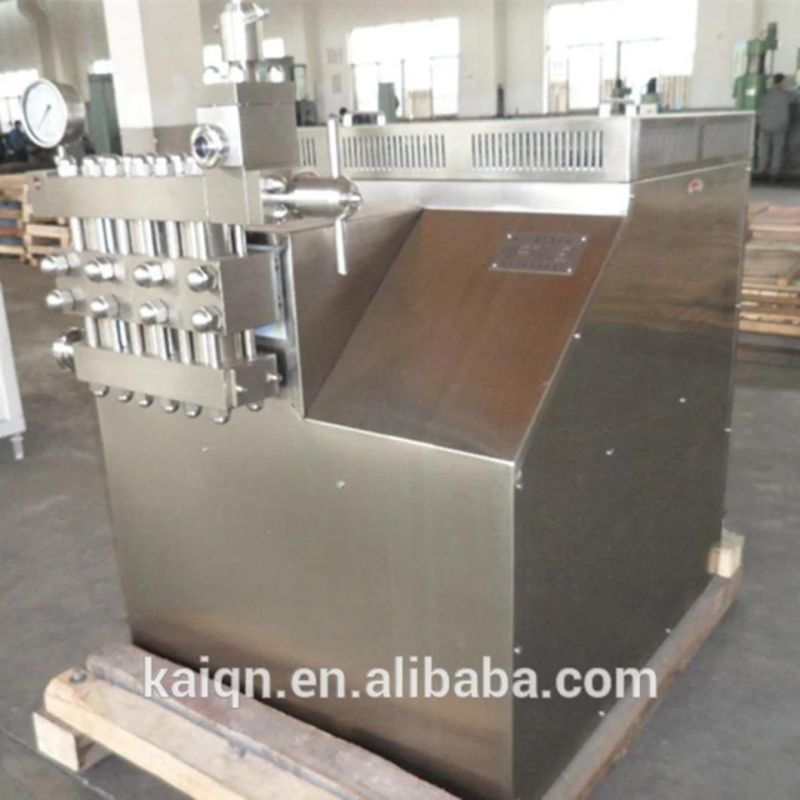

CE Certificated Milk Ice Cream Yogurt Juice Customized Homogenizer
25MPa Chemical Liquid Milk Homogenizer 250bar Machine


Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer,  40MPA homogenizer
Tea drinks homogenizer,  juice homogenizer
homogenizer pumps

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life .



series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.


The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as
pharmaceutical industry, chemical industry, etc. )



CE Certificated Milk Ice Cream Yogurt Juice Customized Homogenizer
