• Model NO.：KQ25Mpa KQ 30Mpa KQ 40Mpa
• Name and Description：1000L Stainless Steel Little Dairy Small Homogeniz
• Material：Food Grade Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Certificate：Ce
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Motor：Siemens ,ABB ,Chinese Brand
• Piston：Two Pistons
• Working Life：More Than 10years
• Warranty Period：One Year or Two Years .
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ25Mpa KQ 30Mpa KQ 40Mpa Name and Description 1000L Stainless Steel Little Dairy Small Homogeniz Material Food Grade Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce Appication Milk , Juice, Beverage, Butter, Honey, Cream Motor Siemens /ABB /Chinese Brand Piston Two Pistons Working Life More Than 10years Warranty Period One Year or Two Years . Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

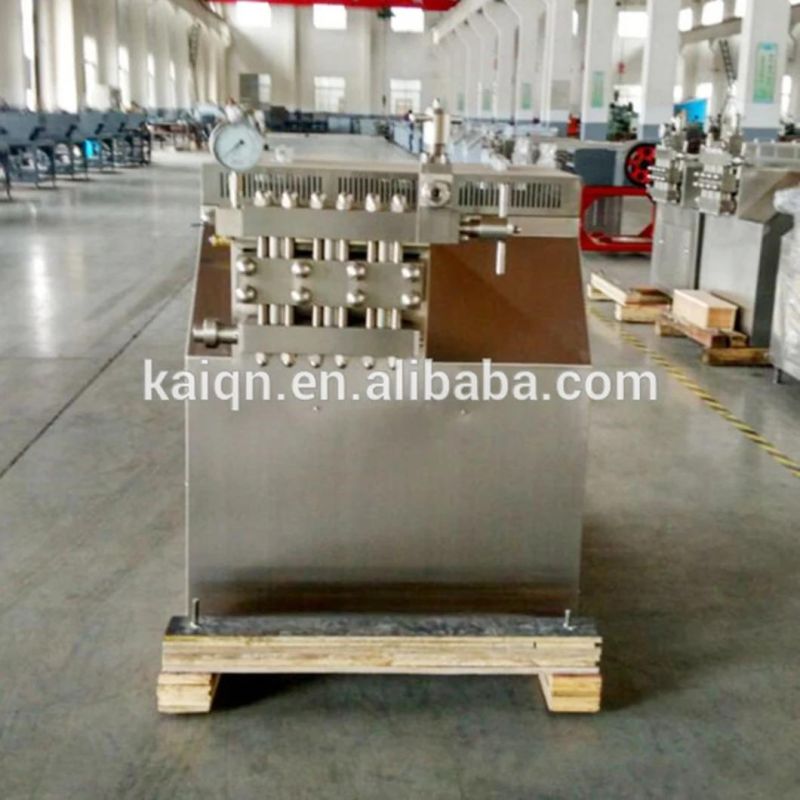

1000L Stainless Steel Little Dairy Small Homogenizer On Sale






Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
