• Model NO.：KQ 500L to 10000L
• Name：Small CE Dairy Milk Yogurt Homogenizer Homogenize
• Product Material：Stainless Steel 304,316,316L

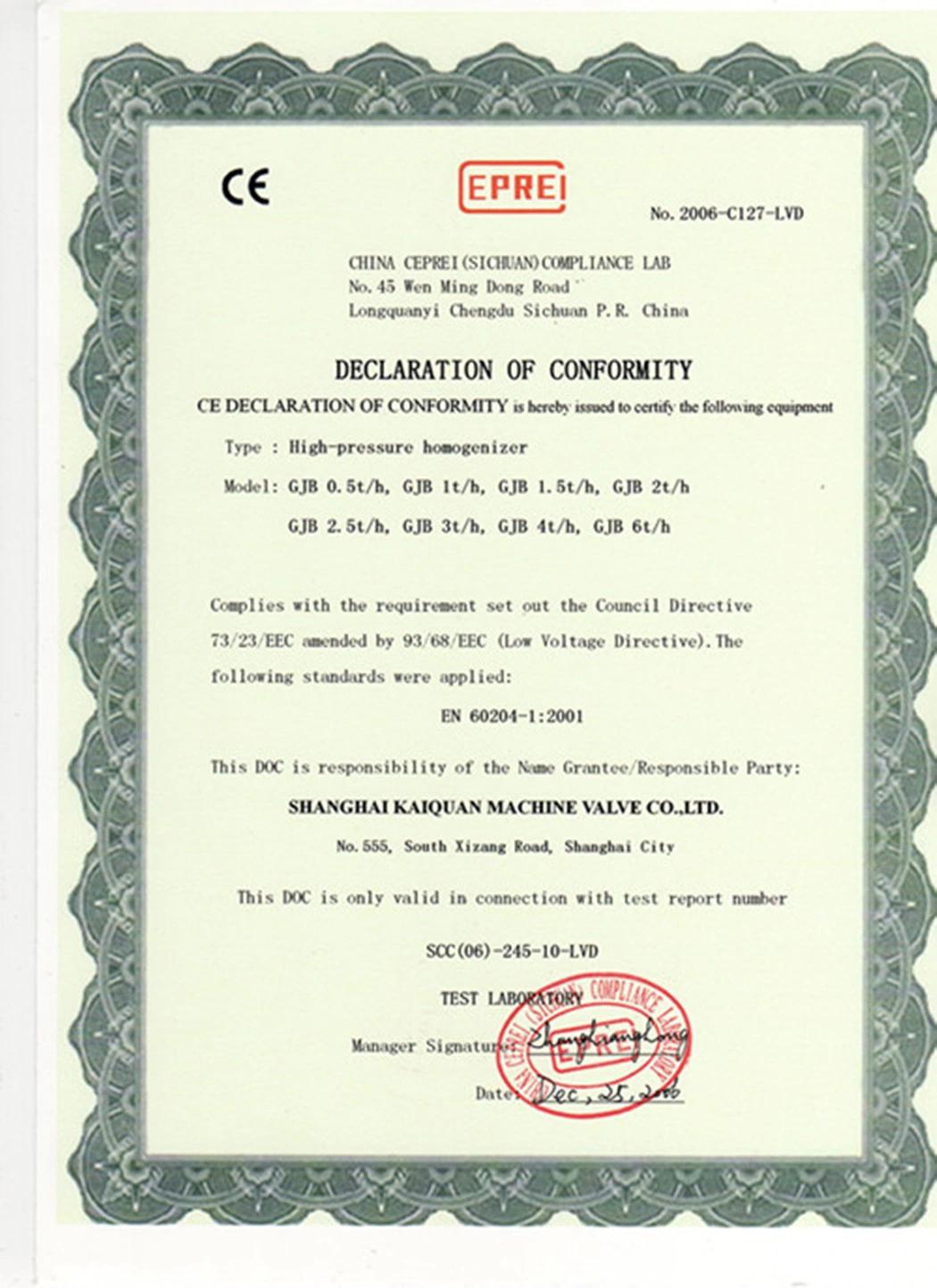

• Homogenizer Certificate：CE
• Capacity：500L,H-10000L,H
• Pressure：25MPa (250bar) to 75MPa (750bar)
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：3 Phase
• Homogenizer Pressure：Two Stage
• Delivery：10 Days
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ 500L to 10000L Name Small CE Dairy Milk Yogurt Homogenizer Homogenize Product Material Stainless Steel 304/316/316L Homogenizer Certificate CE Capacity 500L/H-10000L/H Pressure 25MPa (250bar) to 75MPa (750bar) Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream High Pressure Homogenizer Customized Electricity Motor Motor 3 Phase Homogenizer Pressure Two Stage Delivery 10 Days Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Small CE Dairy Milk Yogurt Homogenizer Homogenizer 1000L 2000L



Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer,  40MPA homogenizer
Tea drinks homogenizer,  juice homogenizer

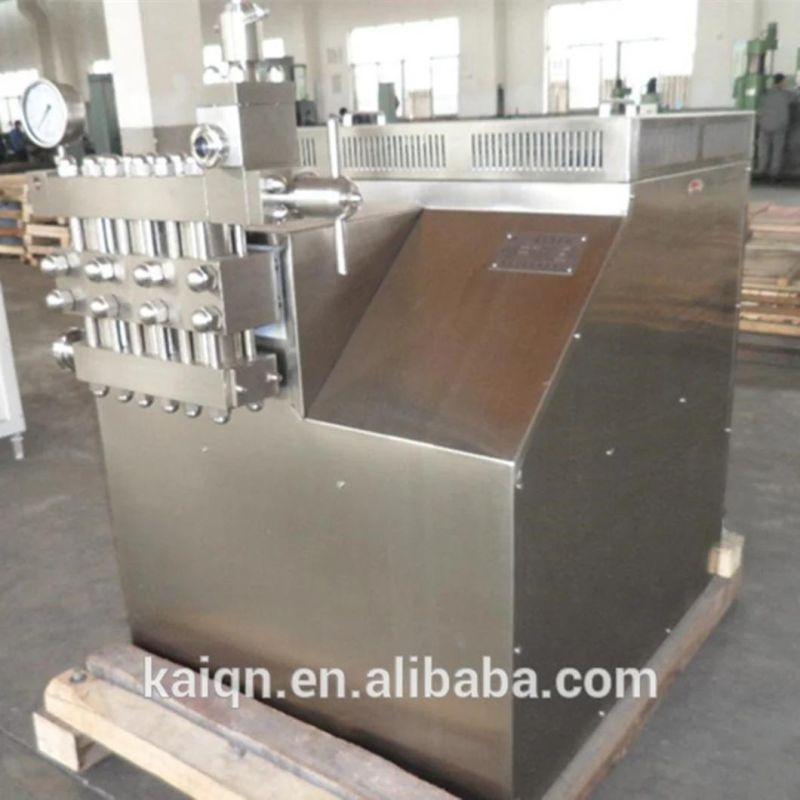

GJB series high pressure homogenizer is a kind of versatile equipment which could make the liquid substance thin and homogeneous distribution and high pressure spray.
GJB series high pressure homogenizer is widely applied for food,milk,soft drink,fine chemistry and biotechnology.
1.For milk,soybean milk,could make fat globule thin observably,make it easy to assimilate.It is good to increase the edible value.
2.For ice cream,make the liquid fine and loosen and improve internal quality.
3.For emulsion,colloid,juice,serosity,could avoid and decrease the separated layers of liquid material,improve the appearance of liquid material,and make it identical coloury liquid.
4.As transportation pump usage
It will come into high pressure by our machine.Powder will be made by dryness equipment.Our machine is important process of manufactorying powder.
This machine are features with good design,convenient operation and simple maintenance,and safety.

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Small CE Dairy Milk Yogurt Homogenizer Homogenizer 1000L 2000L .
