Basic Info.

Model NO. SJ-ST SERIES

Product Description

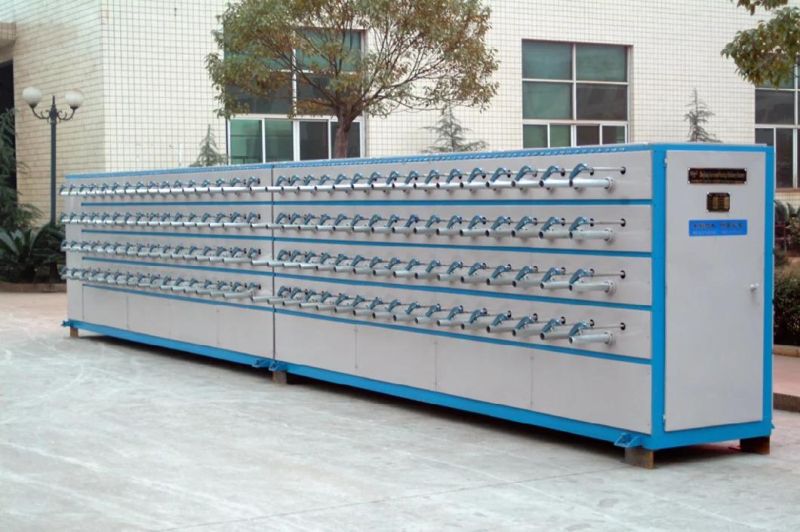

This machine is newly researched and designed by our factory based on the model of combined cam, it winds up the plastic tape by the back and forth movement of the swinging stem driven by the cam.

It takes less effort and it runs more stable. With less friction factor and longer durability, the prime motor is 60% less in requirement of power consumption. It adapts to bobbins of Dia. 38*230mm, and it is the ideal mate of SJ-L series plastic tape extruder.

Item Type	Winder Layers	Spindle Number	Bobbin Winding Width (mm)	Winding-Tape Diameter (mm)	Line Speed (r/min)	Prime Motor Power (kw)	Gross Motor Power (kw)	Installation Dimension (L × W × H) (mm)	Weight (kg)
SJ-ST220/5	5	220	200	≤ 100	50-160	2.2	15.5	6200×1450×1560	3500
SJ-ST260/5	5	260	200	≤ 100	50-160	2.2	18.5	7200×1450×1560	4200
SJ-ST300/5	5	300	200	≤ 100	50-160	2.2	20.2	8200×1450×1560	4800
SJ-ST380/5	5	380	200	≤ 100	50-160	3	25.8	10300×1450×1560	5800
SJ-ST420/5	5	420	200	≤ 100	50-160	3	28.2	11200×1450×1560	6300
SJ-ST480/5	5	480	200	≤ 100	50-160	3	31.8	13000×1450×1560	7100
SJ-ST520/5	5	520	200	≤ 100	50-160	4	35.2	13400×1450×1560	7600
SJ-ST580/5	5	580	200	≤ 100	50-160	4	38.8	15300×1450×1560	8400
SJ-ST620/5	5	620	200	≤ 100	50-160	4	41.2	16200×1450×1560	9000
